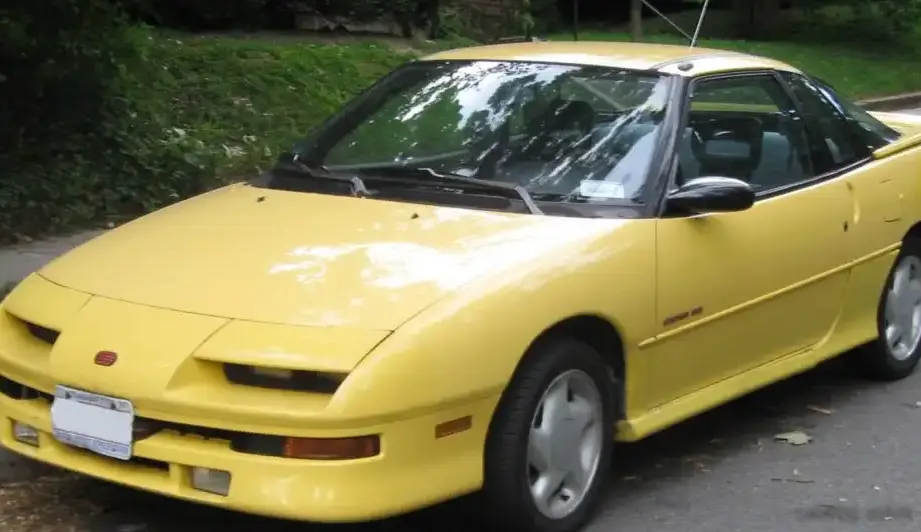

The Geo Storm 1.6i, produced between 1990 and 1993, was a compact, sporty coupe marketed by Geo – a brand created by General Motors as part of its effort to compete with Japanese imports in the North American market. Based on the Isuzu Impulse, the Storm aimed to offer affordable performance and distinctive styling to a younger demographic. The 1.6i variant represented the higher-performance offering within the Storm lineup, positioned above the base model and offering a more engaging driving experience. It was a key part of Geo’s strategy to establish itself as a maker of fun-to-drive, value-oriented vehicles.
Technical Specifications
| Brand | Geo |
| Model | Storm |
| Generation | Storm |
| Type (Engine) | 1.6i (130 Hp) |
| Start of production | 1990 |
| End of production | 1993 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 2 |
| Doors | 2 |
| Fuel consumption (urban) | 13 l/100 km (18.1 US mpg) |
| Fuel consumption (extra urban) | 8 l/100 km (29.4 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 200 km/h (124.27 mph) |
| Weight-to-power ratio | 7.8 kg/Hp |
| Weight-to-torque ratio | 7.3 kg/Nm |
| Power | 130 Hp @ 7000 rpm |
| Power per litre | 81.9 Hp/l |
| Torque | 138 Nm @ 5800 rpm (101.78 lb.-ft. @ 5800 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1588 cm3 (96.91 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80 mm (3.15 in.) |
| Piston Stroke | 79 mm (3.11 in.) |
| Compression ratio | 9.8:1 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 3.8 l (4.02 US qt | 3.34 UK qt) |
| Coolant | 7 l (7.4 US qt | 6.16 UK qt) |
| Kerb Weight | 1010 kg (2226.67 lbs.) |
| Trunk (boot) space – minimum | 310 l (10.95 cu. ft.) |
| Trunk (boot) space – maximum | 620 l (21.9 cu. ft.) |
| Fuel tank capacity | 47 l (12.42 US gal | 10.34 UK gal) |
| Length | 4150 mm (163.39 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1300 mm (51.18 in.) |
| Wheelbase | 2450 mm (96.46 in.) |
| Front track | 1430 mm (56.3 in.) |
| Rear (Back) track | 1450 mm (57.09 in.) |
| Minimum turning circle | 11.2 m (36.75 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/50 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The Geo Storm 1.6i was powered by a 1.6-liter, inline four-cylinder engine. This engine, derived from Isuzu’s G-series, featured multi-port fuel injection and a 9.8:1 compression ratio. The engine code is often associated with Isuzu’s 4ZE1 series. The engine’s design emphasized a balance between power and fuel efficiency, though the 1.6i prioritized performance over economy compared to the base engine. The five-speed manual transmission was standard, providing drivers with full control over the engine’s power band. The engine’s valvetrain utilized a single overhead camshaft (SOHC) design, a common configuration for engines of this era. The intake manifold was designed to optimize airflow for improved cylinder filling, contributing to the engine’s respectable output for its displacement.
Driving Characteristics
The 1.6i Storm offered a noticeably more spirited driving experience than the base model. With 130 horsepower, acceleration was brisk, and the car felt nimble and responsive. The five-speed manual transmission allowed drivers to keep the engine in its optimal power range, maximizing performance. While not a true sports car, the Storm 1.6i provided an enjoyable and engaging driving experience, particularly for its price point. The gear ratios were tuned to provide good acceleration in everyday driving situations, with a fifth gear designed for comfortable highway cruising. Compared to later, more powerful vehicles, the Storm’s handling was adequate but not exceptional, with a tendency towards understeer when pushed hard.
Equipment & Trim Levels
The Geo Storm 1.6i typically included features such as power steering, a basic audio system, and cloth upholstery. Optional extras included air conditioning, upgraded sound systems, and alloy wheels. The interior design was functional and straightforward, prioritizing usability over luxury. The dashboard layout was clean and easy to read, with clearly marked gauges. The 1.6i trim often featured sportier seat designs and interior trim accents compared to the base model, reflecting its performance-oriented nature.
Chassis & Braking
The Storm 1.6i utilized a front-engine, front-wheel-drive layout. Suspension consisted of coil springs all around, providing a comfortable ride quality. The front suspension incorporated MacPherson struts, while the rear used a twist-beam setup. Braking duties were handled by ventilated discs at the front and drum brakes at the rear. An anti-lock braking system (ABS) was available as an option, enhancing safety and control during hard braking. The chassis was relatively lightweight, contributing to the car’s nimble handling characteristics.
Market Reception & Comparison
The Geo Storm 1.6i was generally well-received by automotive critics as an affordable and fun-to-drive coupe. It was praised for its sporty styling and responsive engine. However, some reviewers noted the interior’s basic design and the car’s somewhat limited rear passenger space. Compared to other coupes in its class, such as the Honda Civic Coupe or Toyota Celica, the Storm offered a more aggressive styling and a slightly more performance-focused driving experience, but often at the expense of refinement. Fuel economy was respectable for the time, but not class-leading. Reliability was generally good, though some owners reported minor issues with the electrical system.
Legacy
The Geo Storm 1.6i, while not a long-lived model, left a small but memorable mark on the automotive landscape. It represented Geo’s attempt to carve out a niche in the compact coupe market, offering a distinctive alternative to established Japanese and domestic competitors. Today, the Storm 1.6i is a relatively rare sight on the roads, and well-maintained examples are becoming increasingly sought after by collectors and enthusiasts. The engine, while not particularly sophisticated by modern standards, is known for its durability and relative ease of maintenance. The Storm’s legacy lies in its affordability, sporty styling, and the enjoyable driving experience it offered to a generation of car buyers.
