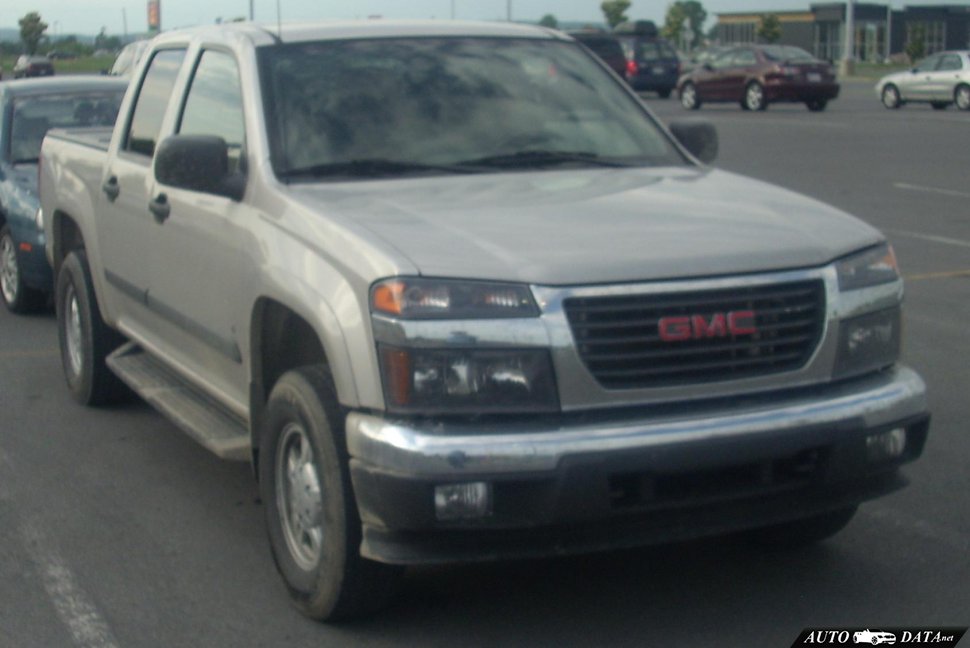

The GMC Canyon I Crew Cab, produced from 2004 to 2006, represented GMC’s entry into the burgeoning mid-size pickup truck market in North America. Positioned as a more manageable and fuel-efficient alternative to full-size trucks like the Sierra, the Canyon aimed to appeal to buyers who didn’t require the substantial capacity of a larger vehicle. The 2.8-liter (175 hp) variant, paired with a five-speed manual transmission, served as the base engine option for the Crew Cab configuration, offering a balance of affordability and capability. It was part of the first generation Canyon (2004-2012) which shared its platform with the Chevrolet Colorado.
Technical Specifications
| Brand | GMC |
| Model | Canyon |
| Generation | Canyon I Crew Cab |
| Type (Engine) | 2.8 (175 Hp) |
| Start of production | 2004 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 6 |
| Doors | 4 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 9 kg/Hp, 111.5 Hp/tonne |
| Weight-to-torque ratio | 6.3 kg/Nm, 160 Nm/tonne |
| Power | 175 Hp @ 5600 rpm |
| Power per litre | 63.2 Hp/l |
| Torque | 251 Nm @ 2800 rpm, 185.13 lb.-ft. @ 2800 rpm |
| Maximum engine speed | 6300 rpm |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | LK5 Vortec 2800 |
| Engine displacement | 2770 cm3, 169.04 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 93 mm, 3.66 in. |
| Piston Stroke | 102 mm, 4.02 in. |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, CVVT |
| Engine oil capacity | 4.7 l, 4.97 US qt | 4.14 UK qt |
| Coolant | 9.8 l, 10.36 US qt | 8.62 UK qt |
| Kerb Weight | 1569 kg, 3459.05 lbs |
| Max. weight | 2268 kg, 5000.08 lbs |
| Max load | 699 kg, 1541.03 lbs |
| Trunk (boot) space – minimum | 1039 l, 36.69 cu. ft. |
| Fuel tank capacity | 74.2 l, 19.6 US gal | 16.32 UK gal |
| Length | 5260 mm, 207.09 in. |
| Width | 1717 mm, 67.6 in. |
| Height | 1646 mm, 64.8 in. |
| Wheelbase | 3198 mm, 125.91 in. |
| Front track | 1460 mm, 57.48 in. |
| Rear (Back) track | 1460 mm, 57.48 in. |
| Ride height (ground clearance) | 127 mm, 5 in. |
| Minimum turning circle (turning diameter) | 13.6 m, 44.62 ft. |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent coil spring |
| Rear suspension | Leaf spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/75 R15; 225/70 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of this Canyon variant was the LK5 2.8-liter inline-four cylinder engine, a member of General Motors’ Vortec family. This engine featured a cast iron block and aluminum cylinder head, incorporating dual overhead camshafts (DOHC) and variable valve timing (CVVT) for improved efficiency and responsiveness. The multi-port fuel injection system delivered fuel directly to each cylinder, optimizing combustion. The 2.8L engine produced 175 horsepower at 5600 rpm and 185 lb-ft of torque at 2800 rpm. The five-speed manual transmission provided a relatively direct connection between the engine and the rear wheels. Gear ratios were tuned for a balance of acceleration and fuel economy, with a lower first gear for starting and towing, and a higher fifth gear for highway cruising.
Driving Characteristics
The 2.8-liter engine, while adequate for everyday driving, wasn’t known for its blistering performance. Acceleration was modest, particularly when the truck was loaded with passengers or cargo. The five-speed manual transmission allowed drivers to keep the engine in its optimal power band, but it still required frequent shifting to maintain momentum, especially when climbing hills. Compared to the optional 3.5-liter inline-five or the more powerful 4.2-liter inline-six engines offered in the Canyon, the 2.8L felt noticeably less potent. However, the 2.8L’s lighter weight and simpler design contributed to better fuel economy and a more forgiving driving experience. The rear-wheel-drive configuration provided a traditional truck feel, with predictable handling and decent traction in dry conditions.
Equipment & Trim Levels
The 2.8-liter engine was typically found in the base or lower trim levels of the Canyon Crew Cab. Standard features generally included air conditioning, a basic audio system, and cloth upholstery. Power windows and locks were often optional extras. The interior design was functional and utilitarian, prioritizing durability over luxury. The Crew Cab configuration offered a spacious rear seat, making it a practical choice for families or those who frequently transported passengers. Optional equipment could include upgraded audio systems, alloy wheels, and a towing package.
Chassis & Braking
The Canyon I utilized a body-on-frame construction, providing a robust and durable platform. The front suspension consisted of independent coil springs, while the rear suspension employed leaf springs. This setup offered a comfortable ride quality, although it wasn’t as refined as some of the independent rear suspension systems found in competing trucks. The braking system featured ventilated discs at the front and drum brakes at the rear. Anti-lock brakes (ABS) were standard, enhancing safety and control during emergency braking situations. The steering was rack-and-pinion with hydraulic power assist, providing responsive and precise steering feel.
Market Reception & Comparison
Critics generally viewed the 2.8-liter Canyon as a competent but unremarkable performer. While it offered good fuel economy for a pickup truck, its lack of power was a common complaint. Compared to the more powerful engine options, the 2.8L was considered best suited for light-duty tasks and commuting. The 2.8L Canyon offered a more affordable entry point into the mid-size truck segment, appealing to budget-conscious buyers. The 3.5L inline-five offered a noticeable performance boost, while the 4.2L inline-six provided the most power and towing capacity, but at a higher price point and with reduced fuel efficiency.
Legacy
The 2.8-liter LK5 Vortec engine, while not the most powerful option in the Canyon lineup, proved to be relatively reliable. Common issues included oil leaks and occasional sensor failures, but these were generally not major concerns. Today, the 2.8L Canyon Crew Cab can be found on the used car market at relatively affordable prices. Its simplicity and durability make it a viable option for those seeking a basic, dependable pickup truck. However, potential buyers should be aware of its limited power and the potential for age-related maintenance issues. The Canyon I, particularly the 2.8L variant, represents a significant step in GMC’s evolution as a truck manufacturer, offering a compelling alternative to larger, more expensive pickups.
