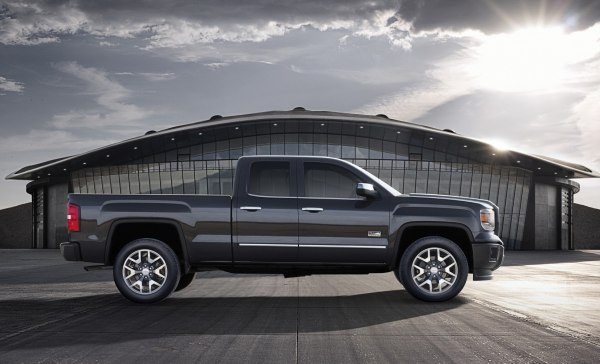

| General information | |
|---|---|
| Brand | GMC |
| Model | Sierra 1500 |
| Generation | Sierra 1500 IV (GMTK2XX) Double Cab |
| Type (Engine) | 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel |
| Start of production | 2013 year |
| End of production | 2015 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5 |
| Doors | 4 |
| Performance specs | |
| Fuel consumption (economy) – urban | 13.1 l/100 km 18 US mpg 21.6 UK mpg 7.6 km/l |
| Fuel consumption (economy) – extra urban | 9.8 l/100 km 24 US mpg 28.8 UK mpg 10.2 km/l |
| Fuel Type | Petrol / Ethanol – E85 |
| Weight-to-power ratio | 8.1 kg/Hp, 123.1 Hp/tonne |
| Weight-to-torque ratio | 5.6 kg/Nm, 178.4 Nm/tonne |
| Engine specs | |
| Power | 285 Hp @ 5300 rpm. |
| Power per litre | 66.3 Hp/l |
| Power (Ethanol – E85) | 297 Hp @ 5300 rpm. |
| Power per litre (Ethanol – E85) | 69.1 Hp/l |
| Torque | 413 Nm @ 3900 rpm. 304.61 lb.-ft. @ 3900 rpm. |
| Torque (Ethanol – E85) | 447 Nm @ 3900 rpm. |
| Maximum engine speed | 5800 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | LV3 |
| Engine displacement | 4300 cm3 262.4 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 99.6 mm 3.92 in. |
| Piston Stroke | 92 mm 3.62 in. |
| Compression ratio | 11:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Direct injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine oil capacity | 5.7 l 6.02 US qt | 5.02 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 14 l 14.79 US qt | 12.32 UK qt |
| Engine systems | Cylinder deactivation system |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 2315 kg 5103.7 lbs. |
| Max. weight | 3220 kg 7098.88 lbs. |
| Max load | 905 kg 1995.18 lbs. |
| Trunk (boot) space – minimum | 1728 l 61.02 cu. ft. |
| Fuel tank capacity | 98 l 25.89 US gal | 21.56 UK gal |
| Permitted trailer load with brakes (12%) | 3039 kg 6699.85 lbs. |
| Dimensions | |
| Length | 5829 mm 229.49 in. |
| Width including mirrors | 2032 mm 80 in. |
| Height | 1876 mm 73.86 in. |
| Wheelbase | 3645 mm 143.5 in. |
| Front track | 1750 mm 68.9 in. |
| Rear (Back) track | 1716 mm 67.56 in. |
| Ride height (ground clearance) | 216 mm 8.5 in. |
| Minimum turning circle (turning diameter) | 14.3 m 46.92 ft. |
| Approach angle | 16.2° |
| Departure angle | 23.1° |
| Ramp-over (brakeover) angle | 18.9° |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission Hydra-Matic |
| Front suspension | Independent coil spring |
| Rear suspension | Rigid axle suspension, Leaf spring |
| Front brakes | Ventilated discs, 330×30 mm |
| Rear brakes | Ventilated discs, 345×20 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 245/70 R17; 265/70 R17 |
| Wheel rims size | 8J x 17 |
| What is the body type, GMC Sierra 1500 IV (GMTK2XX) Double Cab? | Pick-up, 4 Doors, 5 Seats |
|---|---|
| How much power, GMC Sierra 1500 Pick-up 2013 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | 285 Hp, 413 Nm 304.61 lb.-ft. |
| What is the engine size, GMC Sierra 1500 Pick-up 2013 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | 4.3 l 4300 cm3 262.4 cu. in. |
| How many cylinders, 2013 GMC 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | 6, V-engine |
| What is the drivetrain, GMC Sierra 1500 IV (GMTK2XX) Double Cab Pick-up 2013 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| How long is this vehicle, 2013 GMC Sierra 1500 Pick-up? | 5829 mm 229.49 in. |
| How wide is the vehicle, 2013 GMC Sierra 1500 Pick-up? | 2032 mm 80 in. |
| What is the curb weight, 2013 GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | 2315 kg 5103.7 lbs. |
| What is the gross weight, 2013 GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | 3220 kg 7098.88 lbs. |
| How much trunk (boot) space, 2013 GMC Sierra 1500 Pick-up? | 1728 l 61.02 cu. ft. |
| How many gears, What type is the gearbox, 2013 GMC Sierra 1500 IV (GMTK2XX) Double Cab 4.3 EcoTec3 V6 (285/297 Hp) Automatic FlexFuel? | 6, automatic transmission Hydra-Matic |
