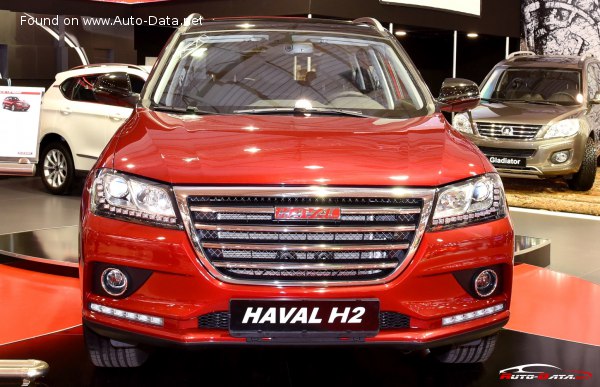

2015 Haval H2 1.5 (150 Hp) Automatic

The Haval H2 1.5 (150 Hp) Automatic, launched in 2015, represents Haval’s initial foray into the compact SUV segment, specifically targeting the burgeoning Chinese domestic market and, eventually, export markets. Positioned as an entry-level offering within the H2 range, it aimed to provide a relatively affordable and feature-rich SUV option. The H2 itself is based on the Great Wall Motors M4 platform, and the 1.5-liter turbocharged variant with an automatic transmission was a key configuration for buyers prioritizing ease of use and convenience. This model year marked the beginning of Haval’s independent brand identity, separating it from its parent company, Great Wall Motors.

Technical Specifications

Brand Haval
Model H2
Generation H2
Type (Engine) 1.5 (150 Hp) Automatic
Start of production 2015
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Fuel Type Petrol (Gasoline)
Emission standard Euro 5/Euro 5+
Weight-to-power ratio 10.5 kg/Hp, 95.5 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.8 Nm/tonne
Power 150 Hp @ 5600 rpm
Power per litre 100.2 Hp/l
Torque 210 Nm @ 2200-4500 rpm (154.89 lb.-ft. @ 2200-4500 rpm)
Engine layout Front, Transverse
Engine Model/Code GW4G15B
Engine displacement 1497 cm3 (91.35 cu. in.)
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Kerb Weight 1570 kg (3461.26 lbs.)
Max. weight 1985 kg (4376.18 lbs.)
Max load 415 kg (914.92 lbs.)
Length 4335 mm (170.67 in.)
Width 1814 mm (71.42 in.)
Height 1695 mm (66.73 in.)
Wheelbase 2560 mm (100.79 in.)
Front track 1525 mm (60.04 in.)
Rear (Back) track 1520 mm (59.84 in.)
Ride height (ground clearance) 184 mm (7.24 in.)
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Tires size 235/55 R18
Wheel rims size 18

Powertrain & Engine Architecture

The Haval H2 1.5 Automatic is powered by the GW4G15B, a 1.5-liter inline-four cylinder gasoline engine. This engine utilizes a single-scroll turbocharger with an intercooler to boost power output. The engine employs multi-point fuel injection, a relatively conventional system for its time, and features four valves per cylinder. The engine’s output of 150 horsepower at 5600 rpm and 210 Nm (154.89 lb-ft) of torque between 2200-4500 rpm is achieved through a combination of turbocharging and optimized engine management. The engine is transversely mounted in the front of the vehicle. The automatic transmission is a six-speed unit, chosen for its ease of use and appeal to a broader customer base. While not a dual-clutch transmission (DCT) like some competitors, it provides smooth shifts and adequate performance for everyday driving.

Driving Characteristics

The 1.5-liter turbocharged engine paired with the six-speed automatic transmission delivers adequate, though not particularly exhilarating, performance. Acceleration is reasonable for city driving and highway merging, but the H2 1.5 Automatic doesn’t offer the same level of responsiveness as the higher-output engine options available in the H2 lineup. The automatic transmission is tuned for comfort and fuel efficiency, resulting in slightly slower shift speeds compared to sportier configurations. The gear ratios are optimized for cruising, making it a comfortable vehicle for longer journeys. Compared to a manual transmission equipped H2 1.5, the automatic sacrifices some driver engagement and fuel economy, but gains in convenience. The front-wheel-drive configuration contributes to a relatively predictable handling characteristic, though it lacks the all-weather capability of an all-wheel-drive system.

Equipment & Trim Levels

The Haval H2 1.5 Automatic typically came equipped with a reasonable level of standard features, aiming to provide good value for money. These included air conditioning, power windows and locks, a basic audio system with USB connectivity, and ABS. Higher trim levels added features such as alloy wheels, a touchscreen infotainment system, rear parking sensors, and a sunroof. Interior upholstery was typically cloth, with options for leatherette in higher trims. The dashboard layout was functional and straightforward, prioritizing usability over aesthetic flair. Safety features, beyond ABS, were relatively basic for the time, typically including dual front airbags.

Chassis & Braking

The Haval H2 utilizes an independent McPherson strut suspension setup at the front and an independent multi-link suspension at the rear. This configuration provides a comfortable ride quality, absorbing bumps and irregularities in the road surface effectively. The front brakes are ventilated discs, providing adequate stopping power, while the rear brakes are solid discs. The steering is electrically assisted, offering light and easy maneuverability. The vehicle’s ride height of 184mm (7.24 inches) provides reasonable ground clearance for navigating uneven terrain, though it’s not designed for serious off-roading. Stabilizer bars are present on both axles to reduce body roll during cornering.

Market Reception & Comparison

The Haval H2 1.5 Automatic was generally well-received in the Chinese market as an affordable and practical compact SUV. Critics noted its spacious interior, comfortable ride, and reasonable fuel economy. However, some reviewers pointed out the engine’s lack of refinement compared to competitors from established brands. Compared to other trims in the H2 lineup, the 1.5 Automatic offered a more accessible price point, making it attractive to first-time buyers and those on a budget. The 1.8-liter turbocharged engine offered significantly more power, but at a higher cost. The 1.5 Automatic’s fuel economy was generally better than the 1.8-liter variant, but slightly lower than the diesel options available in some markets.

Legacy

The Haval H2 1.5 Automatic played a significant role in establishing Haval as a credible SUV manufacturer. While early models may exhibit some reliability issues common to new entrants in the automotive market, the GW4G15B engine has proven to be reasonably durable with proper maintenance. On the used car market, the H2 1.5 Automatic remains an affordable option for those seeking a compact SUV with a decent feature set. Its relatively simple mechanical design makes it easier and less expensive to maintain compared to more complex vehicles. The H2 paved the way for Haval’s subsequent models, which have continued to improve in terms of quality, refinement, and technology.
