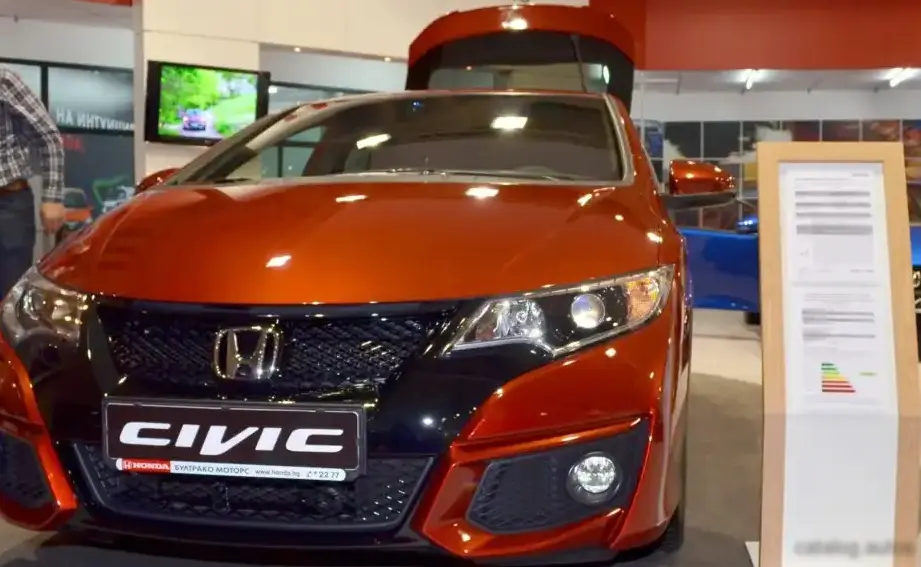

The Honda Civic IX Hatchback, specifically the 1.8 i-VTEC (140 hp) Automatic variant produced from 2014 to 2017, represents a significant iteration of Honda’s globally successful compact car. This facelifted model, part of the ninth-generation Civic (2012-2017), aimed to address some criticisms leveled at the initial 2012 release, focusing on interior quality and refinement. The 1.8L Automatic trim occupied a middle ground in the Civic Hatchback lineup, positioned as a practical and fuel-efficient option for buyers prioritizing comfort and ease of use over outright performance. It was a key model for Honda in the European and North American markets, where compact hatchbacks are highly popular.
Technical Specifications
| Brand | Honda |
| Model | Civic |
| Generation | Civic IX Hatchback (facelift 2014) |
| Type (Engine) | 1.8 i-VTEC (140 Hp) Automatic |
| Start of production | 2014 |
| End of production | 2017 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 10 l/100 km (23.5 US mpg) |
| Fuel consumption (extra urban) | 5.8 l/100 km (40.6 US mpg) |
| Fuel consumption (combined) | 7.3 l/100 km (32.2 US mpg) |
| CO2 emissions | 169 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11 sec |
| Acceleration 0 – 62 mph | 11 sec |
| Acceleration 0 – 60 mph | 10.5 sec |
| Maximum speed | 197 km/h (122.41 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 9.2 kg/Hp |
| Weight-to-torque ratio | 7.4 kg/Nm |
| Power | 140 Hp @ 6300 rpm |
| Torque | 174 Nm @ 4200 rpm (128.34 lb.-ft. @ 4200 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | R18Z4 |
| Engine displacement | 1799 cm3 (109.78 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 3.7 l (3.91 US qt | 3.26 UK qt) |
| Coolant capacity | 5.57 l (5.89 US qt | 4.9 UK qt) |
| Kerb Weight | 1288 kg (2839.55 lbs.) |
| Trunk (boot) space (minimum) | 456 l (16.1 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Length | 4250 mm (167.32 in.) |
| Width | 1760 mm (69.29 in.) |
| Height | 1460 mm (57.48 in.) |
| Wheelbase | 2635 mm (103.74 in.) |
| Ride height (ground clearance) | 150 mm (5.91 in.) |
| Minimum turning circle | 11.8 m (38.71 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission |
| Front suspension | Independent, McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 225/45 R17 |
| Wheel rims size | 17 |
Powertrain & Engine Architecture
The heart of this Civic variant is the R18Z4 1.8-liter inline-four cylinder engine. This engine is a member of Honda’s R-series, known for its reliability and fuel efficiency. The R18Z4 utilizes Honda’s i-VTEC (intelligent Variable valve Timing and lift Electronic Control) system, which optimizes valve timing and lift based on engine speed and load, improving both power and fuel economy. Fuel delivery is handled by a multi-point fuel injection system. The engine produces 140 horsepower at 6300 rpm and 174 Nm (128 lb-ft) of torque at 4200 rpm. Paired with the engine is a five-speed automatic transmission. This transmission, while providing smooth shifts, isn’t known for being particularly sporty or quick-shifting. It prioritizes comfort and fuel efficiency over aggressive performance.
Driving Characteristics
The 1.8L Automatic Civic Hatchback delivers a comfortable and predictable driving experience. Acceleration from 0-60 mph takes around 10.5 seconds, which is adequate for everyday driving but doesn’t offer particularly brisk performance. The automatic transmission contributes to a relaxed driving style, with smooth gear changes. However, it can sometimes feel hesitant during quick overtaking maneuvers. Compared to the six-speed manual transmission available on other Civic models, the automatic version feels less engaging. The gear ratios are tuned for fuel economy, meaning the engine often operates at lower RPMs during cruising. Compared to the more powerful 2.4L engine option, the 1.8L feels noticeably less potent, but it offers a significant improvement in fuel efficiency.
Equipment & Trim Levels
The 1.8 i-VTEC Automatic trim typically included standard features such as air conditioning, power windows and locks, a basic audio system with USB connectivity, and alloy wheels. Higher trim levels, such as the EX or LX, added features like a sunroof, upgraded audio system, and automatic climate control. Interior upholstery was typically cloth, with options for leather available on higher trims. The dashboard layout was functional and straightforward, prioritizing usability over flashy design. Optional extras included navigation systems and advanced safety features.
Chassis & Braking
The Civic Hatchback utilizes a front-wheel-drive layout with an independent McPherson strut suspension in the front and a semi-independent torsion beam suspension in the rear. This setup provides a comfortable ride quality, although it isn’t particularly sporty. The front brakes are ventilated discs, while the rear brakes are solid discs. Anti-lock Braking System (ABS) is standard. The steering is a rack-and-pinion system, providing reasonably precise handling. The 17-inch alloy wheels, fitted with 225/45 R17 tires, contribute to a balanced ride and handling experience.
Market Reception & Comparison
The 1.8L Automatic Civic Hatchback was generally well-received by critics as a practical and fuel-efficient option. It was praised for its comfortable ride, spacious interior, and Honda’s reputation for reliability. However, some reviewers criticized the lack of excitement in its driving dynamics and the somewhat dated interior design. Compared to competitors like the Volkswagen Golf and Ford Focus, the Civic offered a slightly less refined driving experience but often boasted better fuel economy and a stronger resale value. The 1.8L version was particularly popular with buyers who prioritized fuel efficiency and ease of use over performance.
Legacy
The R18Z4 engine, when properly maintained, is known for its long-term reliability. Common issues are relatively minor, often related to routine maintenance items like spark plugs, air filters, and oil changes. The five-speed automatic transmission is also generally reliable, although some units may experience wear and tear over time. In the used car market, the 1.8L Automatic Civic Hatchback remains a popular choice due to its affordability, fuel efficiency, and Honda’s reputation for dependability. It represents a solid value proposition for buyers seeking a practical and reliable compact hatchback.
