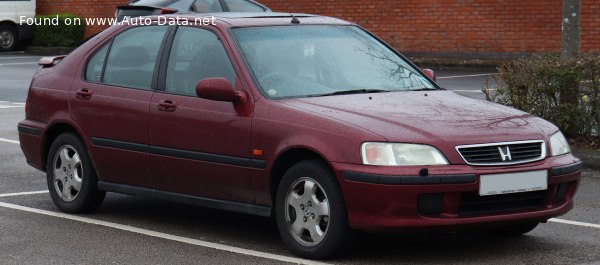

The Honda Civic VI Fastback 1.5i VTEC-E (90 hp) was a trim level produced between 1995 and 1997, representing a key variant within the sixth generation (1995-2000) of Honda’s globally successful Civic model. Positioned as an entry-level to mid-range offering, this fastback version, characterized by its sloping rear roofline, was primarily sold in European and Asian markets. It aimed to provide a balance of fuel efficiency, practicality, and Honda’s renowned reliability, appealing to a broad customer base seeking affordable transportation. The 1.5i VTEC-E utilized Honda’s lean-burn technology to maximize fuel economy, making it a popular choice in regions with higher fuel costs and increasing environmental awareness.
Technical Specifications
| Brand | Honda |
| Model | Civic |
| Generation | Civic VI Fastback |
| Type (Engine) | 1.5i VTEC-E (90 Hp) |
| Start of production | 1995 |
| End of production | 1997 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Fastback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7 l/100 km (33.6 US mpg, 40.4 UK mpg, 14.3 km/l) |
| Fuel consumption (extra urban) | 4.8 l/100 km (49 US mpg, 58.9 UK mpg, 20.8 km/l) |
| Fuel consumption (combined) | 6.1 l/100 km (38.6 US mpg, 46.3 UK mpg, 16.4 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13 sec |
| Acceleration 0 – 62 mph | 13 sec |
| Acceleration 0 – 60 mph | 12.4 sec |
| Maximum speed | 180 km/h (111.85 mph) |
| Weight-to-power ratio | 11.8 kg/Hp, 85 Hp/tonne |
| Weight-to-torque ratio | 8.1 kg/Nm, 123.7 Nm/tonne |
| Power | 90 Hp @ 5500 rpm |
| Power per litre | 60.3 Hp/l |
| Torque | 131 Nm @ 4500 rpm (96.62 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | D15Z3 |
| Engine displacement | 1493 cm3 (91.11 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm (2.95 in.) |
| Piston Stroke | 84.5 mm (3.33 in.) |
| Compression ratio | 9.3:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine oil capacity | 3.3 l (3.49 US qt | 2.9 UK qt) |
| Coolant | 3.8 l (4.02 US qt | 3.34 UK qt) |
| Kerb Weight | 1059 kg (2334.7 lbs.) |
| Max. weight | 1600 kg (3527.4 lbs.) |
| Max load | 541 kg (1192.7 lbs.) |
| Trunk (boot) space – minimum | 380 l (13.42 cu. ft.) |
| Trunk (boot) space – maximum | 830 l (29.31 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Max. roof load | 75 kg (165.35 lbs.) |
| Permitted trailer load with brakes (12%) | 800 kg (1763.7 lbs.) |
| Permitted trailer load without brakes | 500 kg (1102.31 lbs.) |
| Permitted towbar download | 50 kg (110.23 lbs.) |
| Length | 4315 mm (169.88 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1390 mm (54.72 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Front track | 1475 mm (58.07 in.) |
| Rear (Back) track | 1470 mm (57.87 in.) |
| Ride height (ground clearance) | 150 mm (5.91 in.) |
| Minimum turning circle (turning diameter) | 11 m (36.09 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Double wishbone, Transverse stabilizer |
| Rear suspension | Double wishbone |
| Front brakes | Disc |
| Rear brakes | Drum |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/65 R14 |
| Wheel rims size | 5J x 14 |
Powertrain & Engine Architecture
The heart of the Civic 1.5i VTEC-E is the D15Z3 engine, a 1.5-liter inline-four cylinder powerplant. This engine is a member of Honda’s D-series, known for its durability and efficiency. The “VTEC-E” designation signifies Honda’s “Economic” Variable Valve Timing and Lift Electronic control system. Unlike the more performance-oriented VTEC systems, VTEC-E focused on improving fuel economy by optimizing valve timing at lower engine speeds and providing a modest performance boost at higher RPMs. The D15Z3 utilizes a single overhead camshaft (SOHC) design and multi-point fuel injection. The engine produces 90 horsepower at 5,500 rpm and 96.62 lb-ft of torque at 4,500 rpm. The engine’s relatively low compression ratio of 9.3:1 contributed to its ability to run on lower octane fuel, common in many markets. The standard transmission for this variant was a 5-speed manual, although a 4-speed automatic transmission was also available, impacting performance and fuel economy.
Driving Characteristics
The 1.5i VTEC-E with the manual transmission offered adequate performance for daily commuting and urban driving. Acceleration to 60 mph took approximately 12.4 seconds, and top speed was around 111.85 mph. The engine felt responsive enough for overtaking maneuvers, but it wasn’t designed for spirited driving. The automatic transmission version, while providing convenience, noticeably reduced acceleration and responsiveness. The gear ratios were optimized for fuel efficiency rather than outright performance. The VTEC-E system was subtle in its operation; the transition between the economic and performance cam profiles was not particularly noticeable to the driver. Handling was typical of front-wheel-drive compact cars of the era – safe and predictable, but not particularly engaging.
Equipment & Trim Levels
The 1.5i VTEC-E typically came equipped with basic amenities, reflecting its position as an entry-level trim. Standard features included power steering, central locking, and a basic audio system. Interior upholstery was typically cloth, and the dashboard featured a functional but minimalist design. Optional extras included air conditioning, power windows, and upgraded audio systems. Higher trim levels within the Civic VI range, such as the 1.6i VTEC, offered more luxurious features like alloy wheels, a sunroof, and more sophisticated interior trim.
Chassis & Braking
The Civic VI Fastback utilized a front independent suspension with double wishbones and a transverse stabilizer bar, providing a comfortable ride. The rear suspension employed a double wishbone setup. Braking consisted of front disc brakes and rear drum brakes, which were adequate for the car’s weight and performance. The hydraulic power steering provided light and easy steering, making it well-suited for city driving. Tire size was typically 175/65 R14.
Market Reception & Comparison
The Civic 1.5i VTEC-E was generally well-received by critics for its fuel efficiency and reliability. It was often praised as a practical and affordable option for first-time car buyers or those seeking economical transportation. Compared to the higher-output 1.6i VTEC models, the 1.5i VTEC-E offered significantly lower running costs but sacrificed performance. The 1.7 diesel variants provided even better fuel economy but were slower and noisier. The automatic transmission version was criticized for its sluggish performance, with many reviewers recommending the manual gearbox for a more engaging driving experience.
Legacy
The D15Z3 engine, found in the Civic 1.5i VTEC-E, has proven to be remarkably durable and reliable over the years. Well-maintained examples are still on the road today, testament to Honda’s engineering prowess. In the used car market, these Civics are often sought after for their affordability and reputation for dependability. While not a performance icon, the 1.5i VTEC-E represents a significant chapter in the Civic’s history, demonstrating Honda’s commitment to providing efficient and reliable transportation to a wide range of customers. Parts availability remains good, making maintenance relatively straightforward and inexpensive.
