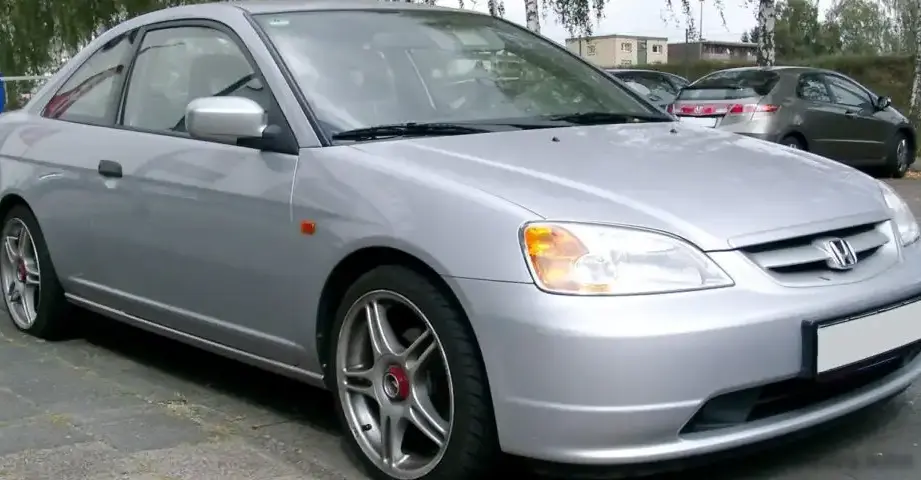

The Honda Civic VII Coupe 1.7i, produced between 2001 and 2006, represented a significant evolution in Honda’s popular compact car line. Part of the seventh generation Civic (internally designated as the ES platform), the Coupe variant offered a sportier aesthetic and a more focused driving experience compared to the sedan. The 1.7i trim, powered by a 1.7-liter four-cylinder engine producing 120 horsepower, served as a key entry point into the Civic Coupe range, balancing affordability with Honda’s reputation for reliability and fuel efficiency. This model was primarily aimed at the North American market, where the coupe body style held particular appeal.
Technical Specifications
| Brand | Honda |
| Model | Civic |
| Generation | Civic VII Coupe |
| Type (Engine) | 1.7i (120 Hp) |
| Start of production | 2001 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 5 |
| Doors | 2 |
| Fuel consumption (urban) | 8.3 l/100 km (28.3 US mpg) |
| Fuel consumption (extra urban) | 5.5 l/100 km (42.8 US mpg) |
| Fuel consumption (combined) | 6.8 l/100 km (34.6 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.7 sec |
| Acceleration 0 – 62 mph | 9.7 sec |
| Acceleration 0 – 60 mph | 9.2 sec |
| Maximum speed | 200 km/h (124.27 mph) |
| Weight-to-power ratio | 9.3 kg/Hp |
| Weight-to-torque ratio | 7.4 kg/Nm |
| Power | 120 Hp @ 6200 rpm |
| Torque | 152 Nm @ 4500 rpm (112.11 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | D17A |
| Engine displacement | 1668 cm3 (101.79 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm (2.95 in.) |
| Piston Stroke | 94.4 mm (3.72 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Coolant capacity | 3.9 l (4.12 US qt | 3.43 UK qt) |
| Kerb Weight | 1121 kg (2471.38 lbs.) |
| Max. weight | 1570 kg (3461.26 lbs.) |
| Max load | 449 kg (989.88 lbs.) |
| Trunk (boot) space – minimum | 441 l (15.57 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Length | 4438 mm (174.72 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1399 mm (55.08 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear track | 1470 mm (57.87 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Transverse stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 195/60 R15 |
Powertrain & Engine Architecture
The heart of the Civic VII Coupe 1.7i was the D17A engine, a 1.7-liter inline-four cylinder powerplant. This engine utilized a single overhead camshaft (SOHC) valvetrain with four valves per cylinder. Fuel delivery was managed by a multi-point fuel injection system, providing precise fuel metering for improved efficiency and reduced emissions. The D17A engine was known for its durability and relatively simple design, contributing to Honda’s reputation for reliability. The 5-speed manual transmission was standard, offering drivers a direct connection to the engine and allowing for spirited driving. The transmission featured typical gear ratios for a front-wheel-drive compact car, prioritizing acceleration in the lower gears and fuel efficiency at highway speeds.
Driving Characteristics
The 120 horsepower and 112 lb-ft of torque produced by the D17A engine provided adequate, though not exhilarating, performance. Acceleration from 0-60 mph took approximately 9.2 seconds, making it competitive with other compact coupes of the era. The manual transmission allowed drivers to extract the most from the engine, while the relatively light weight of the Civic Coupe contributed to a nimble feel. Compared to the higher-output Civic Si models, the 1.7i offered a more relaxed driving experience, prioritizing fuel economy and everyday usability over outright performance. The gear ratios were tuned for a balance between acceleration and fuel efficiency, making it a suitable choice for daily commuting and occasional highway trips.
Equipment & Trim Levels
The Civic VII Coupe 1.7i typically came standard with features such as air conditioning, power windows and locks, and an AM/FM stereo. Interior upholstery was typically cloth, with a straightforward and functional dashboard layout. Optional extras included a sunroof, upgraded audio systems, and alloy wheels. The 1.7i trim represented the base model in the Civic Coupe lineup, offering a good value proposition for buyers seeking a reliable and affordable coupe. Higher trim levels, such as the EX, added features like a power sunroof, upgraded audio, and cruise control.
Chassis & Braking
The Civic VII Coupe utilized a MacPherson strut front suspension and a multi-link rear suspension, providing a comfortable ride and predictable handling. Front brakes were ventilated discs, offering good stopping power, while rear brakes were solid discs. Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The chassis was designed to be lightweight and rigid, contributing to the car’s nimble handling characteristics. Stabilizer bars were included at both the front and rear to reduce body roll during cornering.
Market Reception & Comparison
The Civic VII Coupe 1.7i was generally well-received by automotive critics, who praised its reliability, fuel efficiency, and overall value. While not the fastest or most luxurious coupe on the market, it offered a compelling package for buyers seeking a practical and affordable car. Compared to other trims in the Civic lineup, the 1.7i offered the best fuel economy, making it an attractive option for budget-conscious buyers. However, the higher-output Civic Si models offered significantly more performance, appealing to drivers who prioritized driving excitement.
Legacy
The D17A engine, found in the Civic VII Coupe 1.7i, has proven to be remarkably durable and reliable over the long term. Properly maintained examples continue to provide years of service, and parts availability remains good. In the used car market, the Civic VII Coupe 1.7i is often sought after for its affordability, fuel efficiency, and Honda’s reputation for reliability. While not a collector’s item, it remains a popular choice for those seeking a practical and dependable compact coupe.
