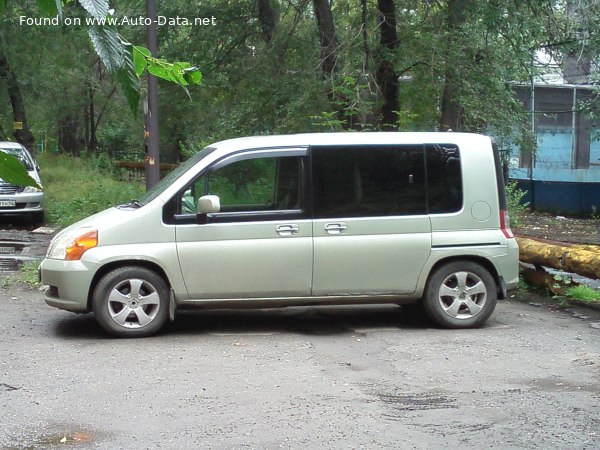

The Honda Mobilio (GA-IV) 1.5 i, producing 90 horsepower, was a compact minivan produced by Honda between 2002 and 2008. Positioned as an entry-level offering within the fourth-generation Mobilio range, it catered to families and individuals seeking affordable and practical transportation with seven-passenger capacity. The GA-IV Mobilio was primarily sold in Asian markets, including Indonesia, Thailand, and the Philippines, where the demand for multi-purpose vehicles was strong. It represented Honda’s attempt to provide a versatile vehicle at a competitive price point, emphasizing functionality over outright performance.
Technical Specifications
| Brand | Honda |
| Model | Mobilio |
| Generation | Mobilio (GA-IV) |
| Type (Engine) | 1.5 i (90 Hp) |
| Start of production | 2002 |
| End of production | 2008 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 7 |
| Doors | 5 |
| Fuel consumption (combined) | 5.9 l/100 km (39.9 US mpg, 47.9 UK mpg, 16.9 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 160 km/h (99.42 mph) |
| Weight-to-power ratio | 14.1 kg/Hp, 70.9 Hp/tonne |
| Weight-to-torque ratio | 9.7 kg/Nm, 103.1 Nm/tonne |
| Power | 90 Hp @ 5500 rpm |
| Power per litre | 60.2 Hp/l |
| Torque | 131 Nm @ 2700 rpm (96.62 lb.-ft. @ 2700 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1496 cm3 (91.29 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 73 mm (2.87 in.) |
| Piston Stroke | 89.4 mm (3.52 in.) |
| Compression ratio | 10.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Kerb Weight | 1270 kg (2799.87 lbs.) |
| Fuel tank capacity | 42 l (11.1 US gal | 9.24 UK gal) |
| Length | 4055 mm (159.65 in.) |
| Width | 1685 mm (66.34 in.) |
| Height | 1705 mm (67.13 in.) |
| Wheelbase | 2740 mm (107.87 in.) |
| Front track | 1460 mm (57.48 in.) |
| Rear track | 1440 mm (56.69 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 7 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Trailing arm |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 185/65 R14 |
| Wheel rims size | 5.5J x 14 |
Powertrain & Engine Architecture
The heart of the Mobilio 1.5 i was the Honda L15A engine, a 1.5-liter inline-four cylinder gasoline engine. This engine utilized a single overhead camshaft (SOHC) valvetrain with two valves per cylinder. The L15A featured multi-point fuel injection, delivering fuel directly into the intake ports. The engine’s 10.8:1 compression ratio was a compromise between efficiency and performance. The 90 horsepower output at 5500 rpm and 131 Nm (96.62 lb-ft) of torque at 2700 rpm were typical for an engine of this displacement in the early 2000s. The engine was paired with a 7-speed continuously variable transmission (CVT), which was designed to maximize fuel efficiency and provide smooth acceleration. This CVT was a key feature, as it differed from the 5-speed manual transmission available on some Mobilio trims.
Driving Characteristics
The Mobilio 1.5 i with the CVT offered adequate, though not exhilarating, performance. Acceleration was linear, with the CVT keeping the engine in its optimal power band. The 7-speed CVT simulated traditional gear changes, providing a more familiar driving experience for those accustomed to conventional automatic transmissions. Compared to the manual transmission versions, the CVT prioritized fuel economy over outright speed. The Mobilio wasn’t designed for sporty driving; instead, it focused on providing comfortable and efficient transportation for passengers and cargo. The relatively low horsepower and torque figures meant that fully loaded with passengers and luggage, the vehicle could feel strained on inclines or during overtaking maneuvers.
Equipment & Trim Levels
The 1.5 i trim level typically represented the base model in the Mobilio lineup. Standard features generally included air conditioning, power steering, and basic audio system. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat spartan, design. Optional extras could include power windows, central locking, and an upgraded audio system. The Mobilio’s interior was designed with practicality in mind, offering ample space for seven passengers, although third-row seating was best suited for children or shorter adults. The flexible seating configuration allowed for various cargo-carrying arrangements, further enhancing the vehicle’s versatility.
Chassis & Braking
The Mobilio GA-IV utilized a front-wheel-drive layout with a MacPherson strut suspension in the front and a trailing arm suspension in the rear. The front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were drums, a cost-saving measure common in this segment. Anti-lock Braking System (ABS) was standard, enhancing safety during emergency braking situations. The suspension was tuned for comfort, prioritizing a smooth ride over sporty handling. The relatively lightweight construction of the vehicle helped to mitigate the effects of the modest engine output.
Market Reception & Comparison
The Honda Mobilio 1.5 i was generally well-received in its target markets as an affordable and practical family vehicle. Critics praised its spacious interior, fuel efficiency, and versatility. However, some reviewers noted the engine’s lack of power, particularly when the vehicle was fully loaded. Compared to other trims, such as those equipped with a more powerful engine or a manual transmission, the 1.5 i offered a more economical option, appealing to budget-conscious buyers. Its fuel economy of 5.9 l/100 km was competitive within its class. The Mobilio faced competition from other compact MPVs like the Toyota Avanza and the Daihatsu Taruna.
Legacy
The Honda Mobilio GA-IV 1.5 i remains a relatively common sight on the roads in Southeast Asia. The L15A engine is known for its reliability and durability, and with proper maintenance, it can provide many years of service. The CVT transmission, while initially met with some skepticism, has proven to be generally reliable as well. In the used car market, the 1.5 i trim is often the most affordable Mobilio variant, making it an attractive option for first-time car buyers or those seeking a budget-friendly family vehicle. Parts availability is generally good, and maintenance costs are relatively low, contributing to its continued popularity.
