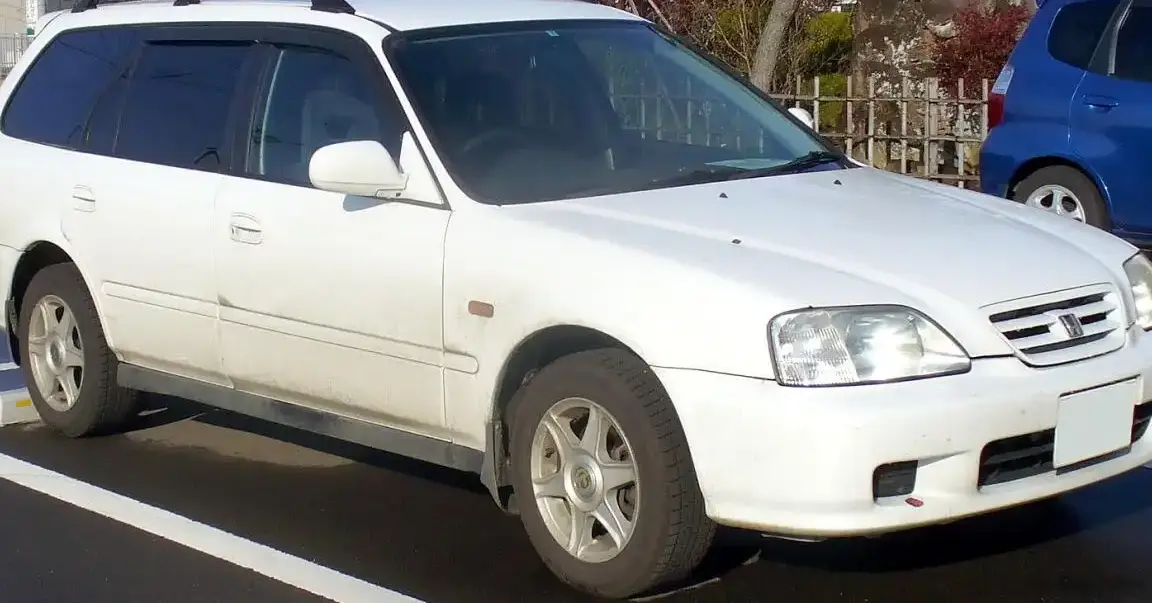

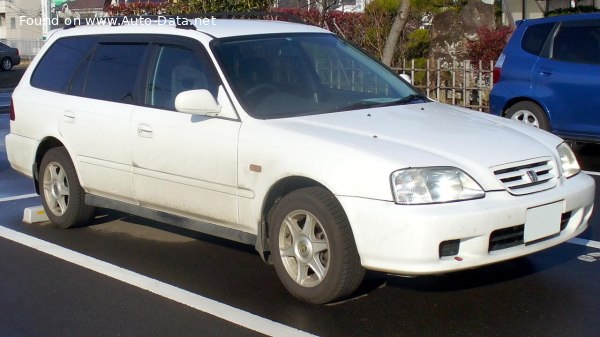

The Honda Orthia, produced between 1996 and 2002, was a compact station wagon exclusive to the Japanese domestic market (JDM). Positioned as a practical and spacious alternative to traditional sedans, the Orthia aimed to cater to families and individuals requiring versatile cargo capacity. The 2.0i 16V variant, equipped with a 150 horsepower engine, represented a mid-range offering within the Orthia lineup, balancing performance with reasonable fuel economy. It was built on the Honda Civic platform, sharing many components with the contemporary Civic, but distinguished by its unique body style and interior layout.
Technical Specifications
| Brand | Honda |
| Model | Orthia |
| Generation | Orthia |
| Type (Engine) | 2.0i 16V (150 Hp) |
| Start of production | 1996 |
| End of production | 2002 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 11 l/100 km (21.4 US mpg) |
| Fuel consumption (extra urban) | 7 l/100 km (33.6 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 190 km/h (118.06 mph) |
| Weight-to-power ratio | 7.8 kg/Hp |
| Weight-to-torque ratio | 6.1 kg/Nm |
| Power | 150 Hp @ 5500 rpm |
| Power per litre | 75.1 Hp/l |
| Torque | 192 Nm @ 4000 rpm (141.61 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm (3.39 in.) |
| Piston Stroke | 86 mm (3.39 in.) |
| Compression ratio | 9.8:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Kerb Weight | 1170 kg (2579.41 lbs.) |
| Fuel tank capacity | 52 l (13.74 US gal | 11.44 UK gal) |
| Length | 4570 mm (179.92 in.) |
| Width | 1700 mm (66.93 in.) |
| Height | 1490 mm (58.66 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Front track | 1480 mm (58.27 in.) |
| Rear track | 1460 mm (57.48 in.) |
| Drivetrain Architecture | Front wheel drive |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Double wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R14 |
| Wheel rims size | 14 |
Powertrain & Engine Architecture
The Orthia 2.0i 16V was powered by Honda’s F18A engine, a 1.8-liter inline-four cylinder engine. This engine was a member of Honda’s F-series, known for its reliability and relatively simple design. The “16V” designation indicates the engine featured four valves per cylinder, enhancing breathing and contributing to its power output. The F18A utilized a multi-port fuel injection system, delivering fuel directly into the intake ports for improved combustion efficiency. The engine employed a Double Overhead Camshaft (DOHC) valvetrain, further optimizing valve timing and airflow. The 5-speed manual transmission was the standard offering, providing drivers with direct control over the engine’s power. The transmission was chosen for its durability and relatively lightweight design.
Driving Characteristics
The 150 horsepower and 141.61 lb-ft of torque provided by the F18A engine in the Orthia 2.0i 16V offered a respectable level of performance for its class. While not a sports car, the Orthia provided adequate acceleration for everyday driving and highway cruising. The 5-speed manual transmission allowed drivers to keep the engine in its optimal power band, resulting in responsive performance. Compared to lower-spec Orthia models with smaller engines, the 2.0i 16V offered a noticeable improvement in acceleration and overall drivability. The gear ratios were tuned for a balance between fuel efficiency and performance, making it a practical choice for daily commutes and longer journeys. The front-wheel-drive configuration provided predictable handling, although it lacked the all-weather capability of an all-wheel-drive system.
Equipment & Trim Levels
The Orthia 2.0i 16V typically came equipped with a reasonable level of standard features. These included power windows, power steering, and an AM/FM radio. Air conditioning was often standard, though sometimes offered as an option depending on the specific sub-trim level. Interior upholstery was typically cloth, with a focus on durability and practicality. Optional extras included alloy wheels, a sunroof, and upgraded audio systems. The dashboard layout was functional and straightforward, prioritizing ease of use over stylistic flair. The Orthia’s interior was designed to be spacious and comfortable, with ample headroom and legroom for both front and rear passengers.
Chassis & Braking
The Orthia’s chassis utilized a front independent suspension with double wishbones, providing a comfortable ride and decent handling characteristics. The rear suspension employed a coil spring setup, offering a balance between ride comfort and stability. Braking duties were handled by ventilated discs on the front wheels and drum brakes on the rear. This configuration was common for vehicles in its class during the late 1990s and early 2000s. An Anti-lock Braking System (ABS) was included as a standard safety feature, enhancing braking performance and control, particularly on slippery surfaces. The steering system was a rack and pinion setup with hydraulic power assistance, providing precise and responsive steering feel.
Market Reception & Comparison
The Honda Orthia was generally well-received in the Japanese market as a practical and versatile station wagon. Critics praised its spacious interior, comfortable ride, and reliable engine. The 2.0i 16V variant was considered a good compromise between performance and fuel economy. Compared to other station wagons in its class, such as the Toyota Caldina and the Nissan Avenir, the Orthia offered a slightly more compact footprint and a more refined driving experience. Fuel economy was competitive, averaging around 21.4 US mpg in urban conditions and 33.6 US mpg on the highway. Reliability was a strong point, with the F18A engine proving to be durable and long-lasting.
Legacy
The Honda Orthia, while not widely known outside of Japan, remains a popular choice among enthusiasts seeking a practical and reliable JDM station wagon. The F18A engine is known for its longevity and relatively simple maintenance requirements. Today, well-maintained Orthia 2.0i 16V models can be found in the used car market, often commanding a premium due to their rarity and reputation for reliability. The Orthia represents a unique chapter in Honda’s history, showcasing the company’s commitment to building practical and well-engineered vehicles for the Japanese domestic market. Its blend of practicality, reliability, and reasonable performance continues to appeal to a dedicated following of enthusiasts.
