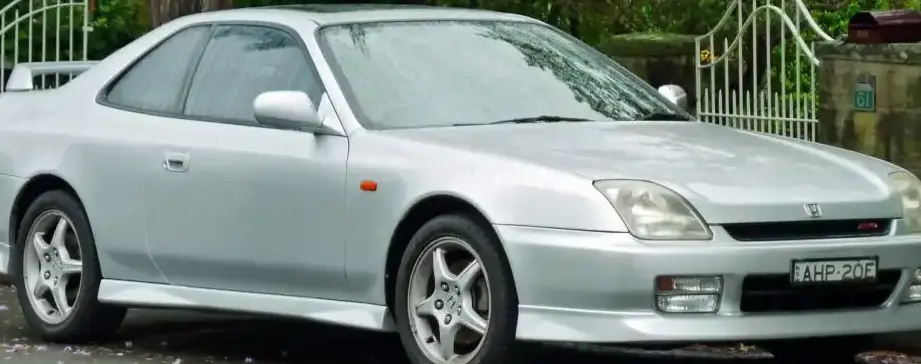

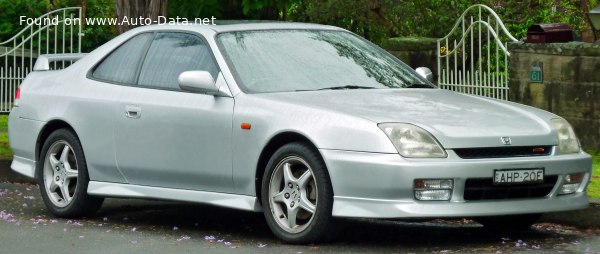

The Honda Prelude V (BB9) represents the fifth and final generation of Honda’s iconic sports coupe, produced from 1996 to 2001. Positioned as a stylish and technologically advanced front-wheel-drive coupe, the BB9 variant featured a 2.0-liter 16-valve inline-four engine producing 133 horsepower. This model occupied a middle ground within the fifth-generation Prelude lineup, offering a balance between performance and affordability compared to the more powerful SH (Special Handling) trim. The Prelude V aimed to continue the model’s legacy of providing a refined driving experience with a focus on handling and a comfortable interior.
Technical Specifications
| Brand | Honda |
| Model | Prelude |
| Generation | Prelude V (BB) |
| Type (Engine) | 2.0 16V (BB9) (133 Hp) |
| Start of production | 1996 |
| End of production | 2001 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 4 |
| Doors | 2 |
| Fuel consumption (urban) | 12.6 l/100 km (18.7 US mpg) |
| Fuel consumption (extra urban) | 7.3 l/100 km (32.2 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.2 sec |
| Acceleration 0 – 62 mph | 9.2 sec |
| Acceleration 0 – 60 mph | 8.7 sec |
| Maximum speed | 201 km/h (124.9 mph) |
| Weight-to-power ratio | 9.3 kg/Hp |
| Weight-to-torque ratio | 6.9 kg/Nm |
| Power | 133 Hp @ 5300 rpm |
| Torque | 179 Nm @ 5000 rpm (132.02 lb.-ft. @ 5000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | F20A4 |
| Engine displacement | 1996 cm3 (121.8 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.8 l (4.02 US qt | 3.34 UK qt) |
| Coolant capacity | 6.9 l (7.29 US qt | 6.07 UK qt) |
| Kerb Weight | 1240 kg (2733.73 lbs.) |
| Max. weight | 1680 kg (3703.77 lbs.) |
| Max load | 440 kg (970.03 lbs.) |
| Trunk (boot) space – minimum | 284 l (10.03 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4545 mm (178.94 in.) |
| Width | 1750 mm (68.9 in.) |
| Height | 1315 mm (51.77 in.) |
| Wheelbase | 2585 mm (101.77 in.) |
| Front track | 1525 mm (60.04 in.) |
| Rear (Back) track | 1515 mm (59.65 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/60 R15 |
Powertrain & Engine Architecture
The BB9 Prelude is powered by Honda’s F20A4 engine, a 1996 cc (121.8 cubic inches) inline-four cylinder engine. This engine utilizes a single overhead camshaft (SOHC) valvetrain operating 16 valves (four per cylinder). The F20A4 features multi-point fuel injection, delivering fuel directly to each cylinder for improved efficiency and responsiveness. The engine’s 9.5:1 compression ratio contributes to its respectable power output for its displacement. The engine is transversely mounted, driving the front wheels. The five-speed manual transmission was standard, providing drivers with direct control over the engine’s power. The transmission’s gear ratios were tuned for a balance of acceleration and highway cruising efficiency.
Driving Characteristics
The 133 horsepower and 132 lb-ft of torque produced by the F20A4 engine provided adequate, though not overwhelming, performance. Acceleration from 0-60 mph took approximately 8.7 seconds, making it competitive with other coupes in its class. The five-speed manual transmission allowed for precise gear selection, enabling drivers to maximize the engine’s power. Compared to the higher-performance SH trim with its 2.2-liter engine, the BB9 offered a more relaxed driving experience. The SH model prioritized outright speed, while the BB9 focused on a more balanced and accessible driving experience. The BB9’s lighter weight, compared to some other trims, contributed to its nimble handling characteristics.
Equipment & Trim Levels
The BB9 Prelude typically came equipped with standard features such as power windows, power locks, and air conditioning. Interior upholstery was typically cloth, with options for leather available. The dashboard featured a straightforward layout with easy-to-read gauges. Optional extras included a sunroof, upgraded audio systems, and alloy wheels. The BB9 trim level was generally considered the entry-level offering in the fifth-generation Prelude range, making it an attractive option for buyers seeking a stylish and well-equipped coupe at a more affordable price point.
Chassis & Braking
The Prelude V utilized a fully independent suspension system, with coil springs and dampers at all four corners. This suspension setup provided a comfortable ride while maintaining good handling characteristics. The BB9 model featured disc brakes on all four wheels, providing ample stopping power. An Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The steering system employed a rack-and-pinion setup with hydraulic power assistance, offering precise and responsive steering feel. The BB9’s suspension tuning was geared towards providing a comfortable ride for everyday driving, while still offering competent handling during spirited driving.
Market Reception & Comparison
The 1996-2001 Honda Prelude V, including the BB9 variant, received generally positive reviews from automotive critics. The car was praised for its stylish design, comfortable interior, and engaging driving experience. However, some critics noted that the 133-horsepower engine could feel underpowered, particularly when compared to competitors offering more powerful engines. Fuel economy was considered respectable for its class, with the BB9 achieving around 22 mpg in the city and 32 mpg on the highway. Compared to the more expensive SH trim, the BB9 offered a more affordable entry point into the Prelude lineup, making it a popular choice for budget-conscious buyers. Reliability was also a strong point, with the F20A4 engine proving to be durable and long-lasting.
Legacy
The Honda Prelude V, including the BB9 variant, has maintained a loyal following among enthusiasts. The F20A4 engine is known for its reliability and relatively simple maintenance requirements. While not as sought-after as the higher-performance SH models, the BB9 remains a viable option for those seeking an affordable and stylish coupe. Today, well-maintained examples of the BB9 Prelude can be found on the used car market, often appealing to buyers looking for a classic Honda with a reputation for reliability and a fun driving experience. The fifth-generation Prelude, as a whole, represents a high point in Honda’s coupe design and engineering, and the BB9 variant continues to be appreciated for its balance of performance, affordability, and style.
