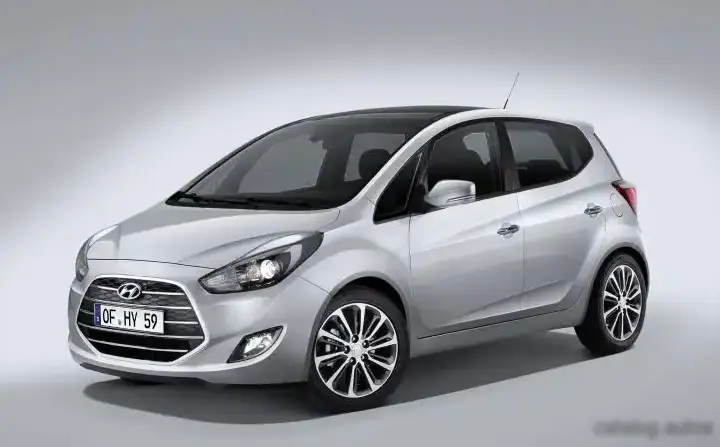

The Hyundai ix20 1.4d (77 hp) represents an entry-level diesel variant of the first-generation ix20, a subcompact multi-purpose vehicle (MPV) produced by the South Korean manufacturer Hyundai. Introduced with the 2015 facelift, this model was marketed primarily in Europe from 2015 to 2018. Positioned as an affordable and practical family vehicle, the 1.4d offered a balance between fuel efficiency and usability, though with modest performance. It occupied the lower end of the ix20 lineup, serving as a more economical alternative to the higher-powered diesel and gasoline options.
Technical Specifications
| Brand | Hyundai |
| Model | ix20 |
| Generation | ix20 (facelift 2015) |
| Type (Engine) | 1.4d (77 Hp) |
| Start of production | 2015 |
| End of production | 2018 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 15.2 sec |
| Acceleration 0 – 62 mph | 15.2 sec |
| Acceleration 0 – 60 mph | 14.4 sec |
| Maximum speed | 160 km/h (99.42 mph) |
| Emission standard | Euro 6 |
| Weight-to-power ratio | 16.5 kg/Hp, 60.6 Hp/tonne |
| Weight-to-torque ratio | 5.3 kg/Nm, 189 Nm/tonne |
| Power | 77 Hp @ 4000 rpm |
| Power per litre | 55.2 Hp/l |
| Torque | 240 Nm @ 1500-2000 rpm (177.01 lb.-ft. @ 1500-2000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | U / D4FC |
| Engine displacement | 1396 cm3 (85.19 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75 mm (2.95 in.) |
| Piston Stroke | 79 mm (3.11 in.) |
| Compression ratio | 16:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5.3 l (5.6 US qt | 4.66 UK qt) |
| Coolant | 6.3 l (6.66 US qt | 5.54 UK qt) |
| Kerb Weight | 1270 kg (2799.87 lbs.) |
| Trunk (boot) space – minimum | 440 l (15.54 cu. ft.) |
| Trunk (boot) space – maximum | 1486 l (52.48 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Length | 4115 mm (162.01 in.) |
| Width | 1765 mm (69.49 in.) |
| Height | 1600 mm (62.99 in.) |
| Wheelbase | 2615 mm (102.95 in.) |
| Front overhang | 820 mm (32.28 in.) |
| Rear overhang | 680 mm (26.77 in.) |
| Minimum turning circle | 10.42 m (34.19 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 195/65 R15; 205/55 R16; 205/50 R17 |
| Wheel rims size | 15; 16; 17 |
INTRODUCTION
The Hyundai ix20, launched in 2010, was Hyundai’s attempt to gain a foothold in the competitive European subcompact MPV segment. The 2015 facelift brought revised styling, improved equipment levels, and updated engine options. The 1.4d variant, producing 77 horsepower, was a key component of this refresh, aimed at buyers prioritizing fuel economy and low running costs. Built on the Hyundai-Kia ‘PB’ platform (also known as the 1HX0/A3 platform), the ix20 offered a surprisingly spacious interior for its footprint, making it a practical choice for small families. This particular engine and transmission combination was a significant offering in markets where diesel fuel was prevalent and taxation favored smaller displacement engines.
Powertrain & Engine Architecture
The heart of the ix20 1.4d is the Hyundai D4FC engine, a 1.4-liter inline-four cylinder diesel. This engine utilizes a second-generation common rail direct injection system, delivering fuel at extremely high pressures for optimized combustion. The D4FC is a turbocharged engine, employing a variable geometry turbocharger (VGT) to enhance low-end torque and improve responsiveness. The engine also features an intercooler to reduce intake air temperature, further boosting performance. The 77 hp output is achieved at 4000 rpm, while peak torque of 240 Nm (177 lb-ft) is available between 1500-2000 rpm. This engine is paired with a six-speed manual transmission, chosen for its efficiency and affordability. The transmission’s gear ratios are tuned to maximize fuel economy and provide adequate acceleration, though it isn’t geared for particularly spirited driving.
Driving Characteristics
The ix20 1.4d offers a predictable, if uninspiring, driving experience. Acceleration is modest, with a 0-62 mph (0-100 km/h) time of around 15.2 seconds. The engine’s strength lies in its low-end torque, making it reasonably capable in urban environments and on moderate inclines. However, overtaking maneuvers require careful planning. Compared to the more powerful 1.6-liter gasoline engine or the higher-output diesel variants, the 1.4d feels noticeably slower. The six-speed manual transmission is generally smooth and precise, but the long gearing can sometimes feel sluggish. The suspension setup prioritizes comfort over handling, resulting in a relatively soft ride quality. Steering is light and easy, making it well-suited for city driving.
Equipment & Trim Levels
The ix20 1.4d was typically offered in base or mid-level trim configurations. Standard equipment generally included air conditioning, power steering, electric front windows, a basic audio system with USB connectivity, and ABS brakes. Higher trim levels added features such as alloy wheels, rear parking sensors, a more advanced audio system with Bluetooth connectivity, and cruise control. Interior upholstery was typically cloth, with a functional and durable design. The dashboard layout was straightforward and user-friendly, with logically placed controls. Optional extras included a panoramic sunroof, leather upholstery, and a navigation system.
Chassis & Braking
The ix20 utilizes a McPherson strut front suspension and a semi-independent torsion beam rear suspension. This setup provides a good balance between ride comfort and handling, although it’s not particularly sporty. The front brakes are ventilated discs, while the rear brakes are solid discs. ABS (Anti-lock Braking System) is standard, providing enhanced braking performance and stability. The steering system is a rack and pinion type with electric power assistance, offering light and precise steering feel. Tire sizes varied depending on the trim level, ranging from 195/65 R15 to 205/50 R17.
Market Reception & Comparison
The Hyundai ix20 1.4d was generally well-received by critics as a practical and affordable MPV. Its spacious interior, fuel efficiency, and competitive price point were highlighted as key strengths. However, its modest performance and somewhat bland styling were also noted. Compared to rivals such as the Renault Modus, Opel Meriva, and Ford Fusion, the ix20 offered a compelling value proposition, particularly for buyers prioritizing practicality and economy. The 1.4d variant offered significantly better fuel economy than the gasoline engines, but at the expense of performance. Reliability was generally good, with few major issues reported.
Legacy
The Hyundai ix20 1.4d has proven to be a relatively reliable and durable vehicle in the used car market. The D4FC engine, while not known for its outright performance, is generally robust and capable of high mileage with proper maintenance. Common issues include turbocharger wear and potential problems with the diesel particulate filter (DPF), particularly on vehicles that have primarily been used for short journeys. Today, the ix20 1.4d represents an affordable and practical option for buyers seeking a small, fuel-efficient MPV. Its spacious interior and low running costs continue to make it a viable choice for small families and urban commuters.
