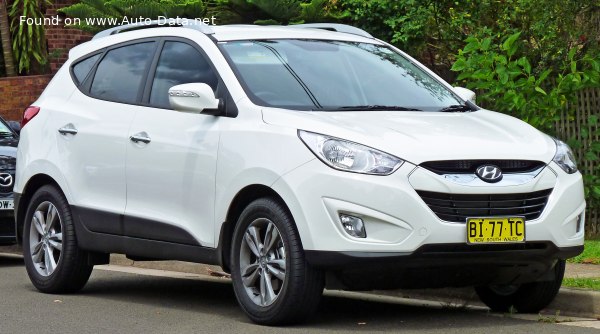

The Hyundai ix35 2.0 CRDi, producing 184 horsepower, was a significant model in Hyundai’s lineup from 2009 to 2013. Positioned as a mid-range offering within the ix35 series (also known as the Tucson in some markets), it aimed to provide a balance of fuel efficiency, performance, and practicality in the compact SUV segment. This variant played a crucial role in establishing Hyundai as a serious contender against established European and Japanese brands, particularly in markets where diesel engines were favored. The ix35, built on the Hyundai-Kia ED platform, represented a departure from the more utilitarian styling of its predecessor, the Tucson, adopting a more modern and sculpted aesthetic influenced by Hyundai’s “Fluidic Sculpture” design language.
Technical Specifications
| Brand | Hyundai |
| Model | ix35 |
| Generation | ix35 |
| Type (Engine) | 2.0 CRDi (184 Hp) |
| Start of production | 2009 |
| End of production | 2013 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.2 l/100 km (32.7 US mpg) |
| Fuel consumption (extra urban) | 5.3 l/100 km (44.4 US mpg) |
| Fuel consumption (combined) | 6 l/100 km (39.2 US mpg) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 10 sec |
| Acceleration 0 – 62 mph | 10 sec |
| Acceleration 0 – 60 mph | 9.5 sec |
| Maximum speed | 194 km/h (120.55 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 8.3 kg/Hp |
| Weight-to-torque ratio | 3.9 kg/Nm |
| Power | 184 Hp @ 4000 rpm |
| Torque | 392 Nm @ 1800-2500 rpm (289.12 lb.-ft.) |
| Engine layout | Front, Transverse |
| Engine Model/Code | R II / D4HA |
| Engine displacement | 1995 cm3 (121.74 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 90 mm (3.54 in.) |
| Compression ratio | 16:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 8 l (8.45 US qt | 7.04 UK qt) |
| Coolant capacity | 8.5 l (8.98 US qt | 7.48 UK qt) |
| Kerb Weight | 1525 kg (3362.05 lbs.) |
| Max. weight | 2140 kg (4717.89 lbs.) |
| Max load | 615 kg (1355.84 lbs.) |
| Trunk (boot) space – minimum | 591 l (20.87 cu. ft.) |
| Trunk (boot) space – maximum | 1436 l (50.71 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4410 mm (173.62 in.) |
| Width | 1820 mm (71.65 in.) |
| Height | 1660 mm (65.35 in.) |
| Wheelbase | 2640 mm (103.94 in.) |
| Front track | 1591 mm (62.64 in.) |
| Rear track | 1592 mm (62.68 in.) |
| Minimum turning circle | 10.58 m (34.71 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears | 6 |
| Gearbox type | Manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 225/60 R17; 225/55 R18 |
| Wheel rims size | 6.5J x 17; 6.5J x18 |
Powertrain & Engine Architecture
The heart of the ix35 2.0 CRDi is the Hyundai R-series diesel engine, specifically the D4HA variant. This is a four-cylinder, inline engine displacing 1995cc. It utilizes a second-generation common-rail direct injection system, delivering fuel at extremely high pressures for optimized combustion. The engine features a variable geometry turbocharger (VGT) and an intercooler, enhancing both power and torque across a broad RPM range. The DOHC valvetrain with four valves per cylinder further contributes to the engine’s efficiency and performance. The 184 horsepower output is achieved at 4000 rpm, while the substantial 392 Nm (289 lb-ft) of torque is available from 1800 to 2500 rpm, providing strong pulling power. The engine meets Euro 5 emission standards, incorporating a diesel particulate filter (DPF) to reduce harmful emissions. The engine is transversely mounted in the front of the vehicle. The six-speed manual transmission was the standard offering, providing precise gear changes and contributing to the vehicle’s overall efficiency.
Driving Characteristics
The ix35 2.0 CRDi with the manual transmission offered a compelling driving experience. The ample torque available from low RPMs meant that the vehicle felt responsive in everyday driving situations, with minimal need for downshifting. Acceleration to 60 mph took around 9.5 seconds, which was competitive for its class. While not a sports SUV, the 184 hp engine provided sufficient power for highway overtaking and maintaining comfortable cruising speeds. The six-speed gearbox was well-matched to the engine’s characteristics, offering smooth and precise shifts. Compared to the lower-powered 1.6L gasoline variants, the 2.0 CRDi offered significantly more performance and refinement. Compared to the range-topping petrol engines, it lacked the outright punch but provided superior fuel economy and a more relaxed driving experience. The all-wheel-drive system provided enhanced traction in adverse weather conditions, making it a capable all-season vehicle.
Equipment & Trim Levels
The ix35 2.0 CRDi typically came well-equipped, even in base trim levels. Standard features often included air conditioning, power windows and mirrors, a CD/MP3 stereo system, and ABS brakes. Higher trim levels added features such as alloy wheels, a panoramic sunroof, leather upholstery, automatic climate control, and a navigation system. Safety features like multiple airbags, electronic stability control, and traction control were generally standard across the range. Optional extras included a reversing camera, parking sensors, and a premium sound system.
Chassis & Braking
The ix35 utilized a McPherson strut front suspension and a multi-link rear suspension, providing a comfortable and controlled ride. The suspension was tuned to prioritize comfort over outright sportiness, but still offered decent handling characteristics. The front brakes were ventilated discs, while the rear brakes were solid discs, providing adequate stopping power for the vehicle’s weight and performance. The electric power steering offered light and precise steering feel. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The Hyundai ix35 2.0 CRDi was generally well-received by automotive critics. It was praised for its spacious interior, comfortable ride, and strong diesel engine. Fuel economy was a major selling point, with the 2.0 CRDi achieving around 39.2 US mpg on the combined cycle. Reliability was also considered to be good, although some owners reported issues with the DPF system. Compared to rivals like the Nissan Qashqai and Kia Sportage, the ix35 offered a compelling combination of value, features, and performance. The 2.0 CRDi variant was often seen as the sweet spot in the range, offering a good balance between performance and fuel efficiency.
Legacy
The Hyundai ix35 2.0 CRDi has proven to be a relatively reliable vehicle in the used car market. The R-series diesel engine, while not without its potential issues (such as DPF clogging if not properly maintained), is generally considered to be durable. Regular servicing and the use of quality diesel fuel are essential for maintaining the engine’s longevity. Today, the ix35 2.0 CRDi represents a good value proposition for buyers seeking a practical and fuel-efficient SUV. Its spacious interior, comfortable ride, and capable all-wheel-drive system continue to make it a popular choice in the used car market.
