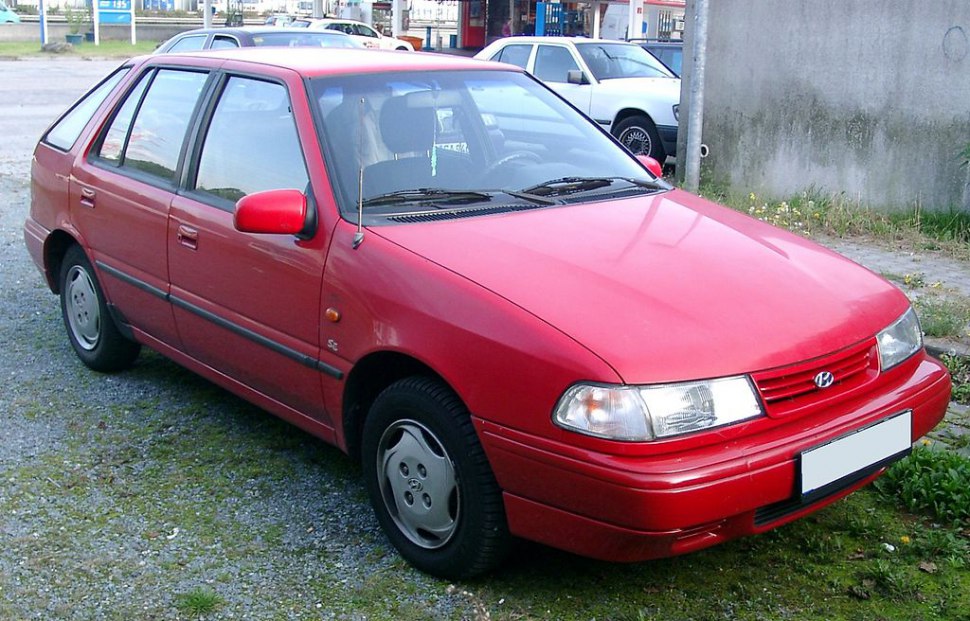

The Hyundai Pony/Excel Hatchback (X-2) 1.3, produced between 1989 and 1995, represented a significant step forward for the South Korean automaker in establishing a presence in global markets. This variant, powered by a 1.3-liter engine producing 72 horsepower, was positioned as an entry-level offering within the X-2 range, designed to provide affordable and reliable transportation. The X-2 generation, built upon the continued development of the original Pony platform, aimed to offer improved refinement and features compared to its predecessor, while maintaining a focus on value. It was primarily marketed towards budget-conscious buyers seeking a practical and economical hatchback.
Technical Specifications
| Brand | Hyundai |
| Model | Pony |
| Generation | Pony/excel Hatchback (X-2) |
| Type (Engine) | 1.3 (72 Hp) |
| Start of production | 1989 |
| End of production | 1995 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3/5 |
| Fuel consumption (urban) | 8.5 l/100 km (27.7 US mpg) |
| Fuel consumption (extra urban) | 5.7 l/100 km (41.3 US mpg) |
| Fuel consumption (combined) | 7.7 l/100 km (30.5 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 155 km/h (96.31 mph) |
| Weight-to-power ratio | 12.8 kg/Hp |
| Weight-to-torque ratio | 8.1 kg/Nm |
| Power | 72 Hp @ 5500 rpm |
| Power per litre | 55.4 Hp/l |
| Torque | 113 Nm @ 3700 rpm (83.34 lb.-ft. @ 3700 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1299 cm3 (79.27 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 71 mm (2.8 in.) |
| Piston Stroke | 82 mm (3.23 in.) |
| Compression ratio | 9.7:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Kerb Weight | 920 kg (2028.25 lbs.) |
| Trunk (boot) space – minimum | 415 l (14.66 cu. ft.) |
| Trunk (boot) space – maximum | 1000 l (35.31 cu. ft.) |
| Fuel tank capacity | 45 l (11.89 US gal) |
| Length | 4100 mm (161.42 in.) |
| Width | 1605 mm (63.19 in.) |
| Height | 1365 mm (53.74 in.) |
| Wheelbase | 2385 mm (93.9 in.) |
| Front track | 1390 mm (54.72 in.) |
| Rear track | 1340 mm (52.76 in.) |
| Minimum turning circle | 9.8 m (32.15 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 175/70 R13 |
| Wheel rims size | 5J x 13 ET38 4×114.3 |
Powertrain & Engine Architecture
The heart of the Pony/Excel 1.3 was the Mitsubishi-sourced 4G13 engine, a 1.3-liter inline-four cylinder unit. This engine utilized a single overhead camshaft (OHC) valvetrain with two valves per cylinder. Fuel delivery was managed by a carburetor, a common feature for vehicles of this era and price point. While not particularly sophisticated, the carburetor provided adequate fuel atomization for the engine’s modest power output. The engine’s 72 horsepower at 5500 rpm and 83.34 lb-ft of torque at 3700 rpm were sufficient for everyday driving, but didn’t offer significant performance reserves. The engine was transversely mounted in the front of the vehicle, driving the front wheels. The standard transmission was a five-speed manual, providing a reasonable balance between fuel economy and drivability.
Driving Characteristics
The 1.3-liter engine and five-speed manual transmission combination in the Pony/Excel offered a fairly basic, but functional driving experience. Acceleration was modest, with a 0-60 mph time estimated to be around 13-15 seconds. The gear ratios were tuned for economy rather than performance, meaning the engine needed to be revved to extract the most power. Compared to later, more powerful Excel variants (like those with the 1.5L engine), the 1.3 felt noticeably slower, particularly when fully loaded or climbing hills. However, the light weight of the vehicle (around 2028 lbs) helped to mitigate the lack of outright power. The steering was light and easy, making it maneuverable in urban environments, but lacked significant feedback.
Equipment & Trim Levels
The 1.3-liter Pony/Excel was typically offered with a fairly basic level of equipment, reflecting its position as the entry-level model. Standard features generally included cloth upholstery, a basic AM/FM radio, and manual windows and door locks. Air conditioning was often an optional extra, as were power steering and upgraded interior trim. The interior design was functional and durable, prioritizing practicality over luxury. The dashboard layout was simple and straightforward, with clearly labeled controls. Three and five-door body styles were available, offering varying degrees of practicality and accessibility.
Chassis & Braking
The Pony/Excel utilized a relatively simple chassis design. Front suspension consisted of coil springs and a stabilizer bar, while the rear suspension employed a coil spring setup. The front brakes were discs, providing adequate stopping power, while the rear brakes were drums, a cost-saving measure common in this class of vehicle. The steering system was a rack and pinion setup, offering reasonable precision. The tires were typically 175/70 R13, providing a balance between ride comfort and handling. The overall suspension setup was tuned for comfort rather than sporty handling, resulting in a relatively soft and forgiving ride.
Market Reception & Comparison
The Hyundai Pony/Excel 1.3 was generally well-received by critics as an affordable and reliable option in the subcompact car segment. It offered a compelling value proposition, undercutting many of its competitors in price. However, its performance was often criticized as being lackluster, and its interior was considered basic compared to some rivals. Compared to the higher-trim Excel models with larger engines, the 1.3 offered significantly less power and refinement. However, it also delivered better fuel economy, making it an attractive option for budget-conscious buyers. Its fuel economy of around 30.5 US mpg combined was competitive for its time.
Legacy
The Hyundai Pony/Excel 1.3 played a crucial role in establishing Hyundai as a viable automaker in international markets. While not known for its performance or luxury, it earned a reputation for reliability and affordability. Today, the X-2 generation Pony/Excel is becoming increasingly sought after by collectors and enthusiasts, particularly well-maintained examples. The 1.3-liter engine, while simple in design, proved to be durable and relatively easy to maintain. Parts availability can be a challenge, but the engine’s simplicity makes it relatively straightforward to repair. The Pony/Excel 1.3 remains a testament to Hyundai’s early efforts to provide affordable and reliable transportation to a global audience.
