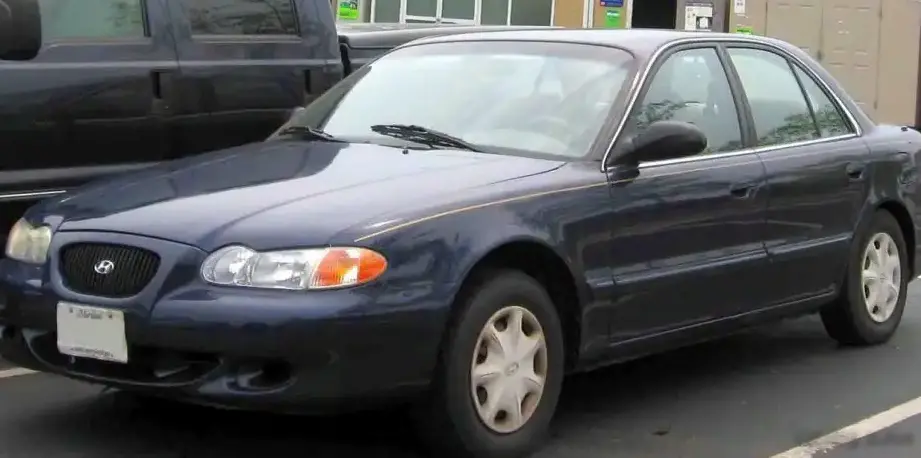

The Hyundai Sonata III (Y3), particularly the facelifted version introduced in 1996, marked a significant advancement for Hyundai as it sought to gain a foothold in international automotive markets. Produced from 1996 to 1998, the Y3 Sonata aimed to deliver a balance of affordability, practicality, and increasingly, modern features. The 2.0-liter (115 hp) variant occupied a middle ground within the Sonata III lineup, serving as a more accessible option than the higher-specification trims while providing a noticeable performance upgrade over the base engine choices. This model primarily targeted families seeking a comfortable and dependable sedan.
Technical Specifications
| Brand | Hyundai |
| Model | Sonata |
| Generation | Sonata III (Y3, facelift 1996) |
| Type (Engine) | 2.0 (115 Hp) |
| Start of production | 1996 |
| End of production | 1998 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 11.5 kg/Hp, 87.1 Hp/tonne |
| Weight-to-torque ratio | 7.4 kg/Nm, 134.8 Nm/tonne |
| Power | 115 Hp @ 5500 rpm |
| Power per litre | 57.6 Hp/l |
| Torque | 178 Nm @ 4500 rpm (131.29 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1997 cm3 (121.86 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Kerb Weight | 1320 kg (2910.1 lbs.) |
| Trunk (boot) space – minimum | 373 l (13.17 cu. ft.) |
| Fuel tank capacity | 65 l (17.17 US gal | 14.3 UK gal) |
| Length | 4700 mm (185.04 in.) |
| Width | 1770 mm (69.69 in.) |
| Height | 1405 mm (55.31 in.) |
| Wheelbase | 2700 mm (106.3 in.) |
| Front track | 1520 mm (59.84 in.) |
| Rear (Back) track | 1510 mm (59.45 in.) |
| Ride height (ground clearance) | 170 mm (6.69 in.) |
| Drag coefficient (Cd) | 0.35 |
| Minimum turning circle (turning diameter) | 10.5 m (34.45 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/70 R14 |
| Wheel rims size | 14 |
Powertrain & Engine Architecture
The 1996-1998 Hyundai Sonata 2.0 was powered by a 1997cc inline-four cylinder engine. This naturally aspirated unit featured a single overhead camshaft (SOHC) valvetrain with two valves per cylinder. Fuel delivery was managed by a multi-port fuel injection system, a common setup for the time, balancing efficiency and performance. The engine produced 115 horsepower at 5500 rpm and 178 Nm (131.29 lb-ft) of torque at 4500 rpm. The engine’s design emphasized reliability and ease of maintenance over peak performance. A 5-speed manual transmission was standard, designed to efficiently transfer power to the front wheels.
Driving Characteristics
The Sonata 2.0 with the 5-speed manual offered adequate, though not thrilling, performance. Acceleration was suitable for everyday driving, providing enough power for highway merging and passing. Gear ratios were tuned for fuel economy and drivability, rather than outright speed. Compared to the base engine options, the 2.0-liter provided a noticeable improvement in responsiveness. However, it didn’t match the performance of the larger engines available in the Sonata lineup. The manual transmission offered a more engaging driving experience than the available automatic, giving the driver greater control over the engine’s power band.
Equipment & Trim Levels
The 2.0-liter Sonata typically included a reasonable level of standard features for its price point. These included power steering, air conditioning, and a basic audio system. Interior upholstery was usually cloth, with a relatively simple dashboard layout. Optional extras could include power windows and locks, a sunroof, and upgraded audio systems. The trim level of the 2.0-liter Sonata was generally considered mid-range, offering a step up in features and refinement compared to the base models, but lacking the luxury appointments found in the higher-end trims.
Chassis & Braking
The Sonata III utilized an independent suspension setup on all four wheels. The front suspension employed a McPherson strut design with coil springs and an anti-roll bar, while the rear suspension featured a multi-link configuration. This setup aimed to provide a comfortable ride while maintaining reasonable handling. Braking was handled by ventilated discs at the front and solid discs at the rear. An anti-lock braking system (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The chassis was designed to balance rigidity and weight, contributing to the car’s overall stability.
Market Reception & Comparison
The Hyundai Sonata III, including the 2.0-liter variant, was generally well-received by critics as a value-oriented family sedan. It offered a compelling combination of space, comfort, and affordability. However, it was often criticized for its somewhat unremarkable styling and lack of refinement compared to established Japanese competitors. The 2.0-liter engine was praised for its adequate performance and fuel efficiency, but some reviewers noted it could feel strained when pushed hard. Compared to the larger engine options, the 2.0-liter offered better fuel economy but less overall power. Reliability was generally considered good, although some owners reported minor issues with the electrical system.
Legacy
The Hyundai Sonata III played a vital role in establishing Hyundai as a credible automotive manufacturer in international markets. The 2.0-liter engine, while not groundbreaking, proved to be a reliable and durable powerplant. Today, these Sonatas are relatively uncommon on the road, but those remaining are often valued by enthusiasts for their affordability and simplicity. The powertrain, while aging, is generally considered relatively easy to maintain and repair. The Sonata III represents a pivotal moment in Hyundai’s history, marking its transition from a largely unknown brand to a serious contender in the global automotive landscape.
