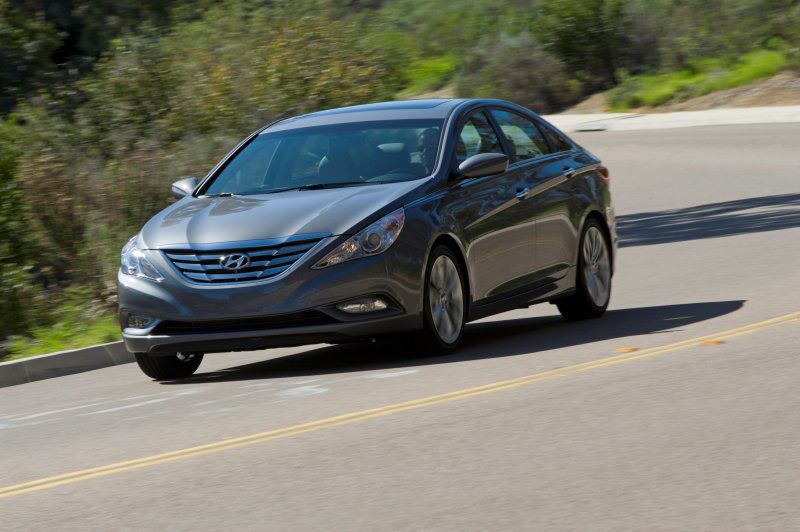

The Hyundai Sonata VI (YF), produced from 2009 to 2012, represented a significant step forward for the South Korean automaker in the mid-size sedan segment. The YF generation, replacing the NF Sonata, aimed to offer a more sophisticated and stylish alternative to established competitors like the Toyota Camry and Honda Accord. Within the YF lineup, the 2.0-liter (165 horsepower) variant occupied a middle ground, positioned as a balance between affordability and performance. This engine was paired with both a six-speed manual and a six-speed automatic transmission, with the automatic being the more common choice in the US market. The YF Sonata was Hyundai’s attempt to elevate its brand image and appeal to a broader customer base seeking a modern, well-equipped, and reliable family sedan.
Technical Specifications
| Brand | Hyundai |
| Model | Sonata |
| Generation | Sonata VI (YF) |
| Type (Engine) | 2.0 (165 Hp) |
| Start of production | 2009 |
| End of production | 2012 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 10.8 l/100 km (21.8 US mpg) |
| Fuel consumption (extra urban) | 6.1 l/100 km (38.6 US mpg) |
| Fuel consumption (combined) | 7.8 l/100 km (30.2 US mpg) |
| CO2 emissions | 188 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.8 sec |
| Acceleration 0 – 62 mph | 9.8 sec |
| Acceleration 0 – 60 mph | 9.3 sec |
| Maximum speed | 210 km/h (130.49 mph) |
| Weight-to-power ratio | 8.5 kg/Hp |
| Weight-to-torque ratio | 7.1 kg/Nm |
| Power | 165 Hp @ 6200 rpm |
| Torque | 198 Nm @ 4600 rpm (146.04 lb.-ft. @ 4600 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Theta II / G4KD |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm (3.39 in.) |
| Piston Stroke | 86 mm (3.39 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, CVVT |
| Engine oil capacity | 4.1 l (4.33 US qt | 3.61 UK qt) |
| Coolant capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Kerb Weight | 1407 kg (3101.9 lbs.) |
| Max. weight | 1980 kg (4365.15 lbs.) |
| Max load | 573 kg (1263.25 lbs.) |
| Trunk (boot) space – minimum | 523 l (18.47 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4820 mm (189.76 in.) |
| Width | 1835 mm (72.24 in.) |
| Height | 1470 mm (57.87 in.) |
| Wheelbase | 2795 mm (110.04 in.) |
| Front track | 1597 mm (62.87 in.) |
| Rear track | 1597 mm (62.87 in.) |
| Drag coefficient (Cd) | 0.28 |
| Minimum turning circle | 10.9 m (35.76 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 6 |
| Gearbox type | Automatic |
| Front suspension | Independent, McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/65 R16 |
| Wheel rims size | 6.5J x 16 |
Powertrain & Engine Architecture
The heart of this Sonata variant is the Hyundai Theta II 2.0-liter inline-four cylinder engine, designated G4KD. This engine is a naturally aspirated powerplant featuring a cast iron block and an aluminum cylinder head. It utilizes multi-point fuel injection and Hyundai’s Continuously Variable Valve Timing (CVVT) technology on both the intake and exhaust valves. CVVT optimizes valve timing based on engine speed and load, improving both performance and fuel efficiency. The engine produces 165 horsepower at 6200 rpm and 198 Nm (146 lb-ft) of torque at 4600 rpm. The six-speed automatic transmission, a significant upgrade from previous Hyundai offerings, features a torque converter and electronically controlled shifting. While not a particularly sporty transmission, it provided smooth and predictable gear changes, prioritizing comfort and fuel economy over aggressive performance.
Driving Characteristics
The 2.0-liter Sonata with the automatic transmission delivered a comfortable and predictable driving experience. Acceleration from 0-60 mph took around 9.3 seconds, which was adequate for everyday driving but not particularly quick compared to some competitors. The automatic transmission’s gear ratios were tuned for fuel efficiency, meaning the engine often felt strained during hard acceleration. Compared to the available manual transmission, the automatic offered less driver engagement but greater convenience. The 2.0L engine was noticeably less powerful than the optional 2.4-liter engine, and lacked the torque of the diesel options available in other markets. However, it provided a smoother and quieter ride than the larger engine, making it a good choice for drivers prioritizing comfort.
Equipment & Trim Levels
The 2.0-liter Sonata typically came standard with features such as air conditioning, power windows and locks, a basic audio system with CD player and auxiliary input, and standard safety equipment like ABS and airbags. Higher trim levels, such as the Limited, added features like leather upholstery, a sunroof, upgraded audio system, and alloy wheels. Optional extras included a navigation system, rearview camera, and heated seats. Interior materials were generally of good quality for the price point, though not as luxurious as some of its Japanese rivals. The dashboard layout was functional and user-friendly, with clearly labeled controls.
Chassis & Braking
The YF Sonata utilized a front-wheel-drive layout with an independent McPherson strut suspension in the front and an independent multi-link suspension in the rear. This suspension setup provided a comfortable ride, absorbing bumps and imperfections in the road effectively. The front brakes were ventilated discs, while the rear brakes were solid discs. ABS (Anti-lock Braking System) was standard, providing enhanced braking performance in emergency situations. The steering was a rack-and-pinion system, offering reasonable precision and feedback. Stabilizer bars were included both front and rear to reduce body roll during cornering.
Market Reception & Comparison
The 2.0-liter Sonata with the automatic transmission was generally well-received by critics as a practical and affordable mid-size sedan. It offered a good balance of features, fuel economy, and comfort. However, some reviewers noted that the engine lacked the power and refinement of some competitors. Compared to the 2.4-liter Sonata, the 2.0-liter model offered better fuel economy but less performance. The 2.0L was often seen as the entry-level trim, appealing to budget-conscious buyers who prioritized value over outright performance. Fuel economy figures of around 30 mpg combined were competitive for the segment at the time.
Legacy
The Theta II engine, in general, proved to be a relatively reliable powerplant, though some owners have reported issues with oil consumption in later years. The six-speed automatic transmission also proved to be durable, with few widespread issues reported. Today, used YF Sonatas with the 2.0-liter engine are readily available and represent a good value for buyers seeking an affordable and reliable used car. Maintenance costs are generally reasonable, and parts are readily available. While not a particularly exciting car to drive, the 2.0-liter Sonata remains a practical and dependable choice for everyday transportation.
