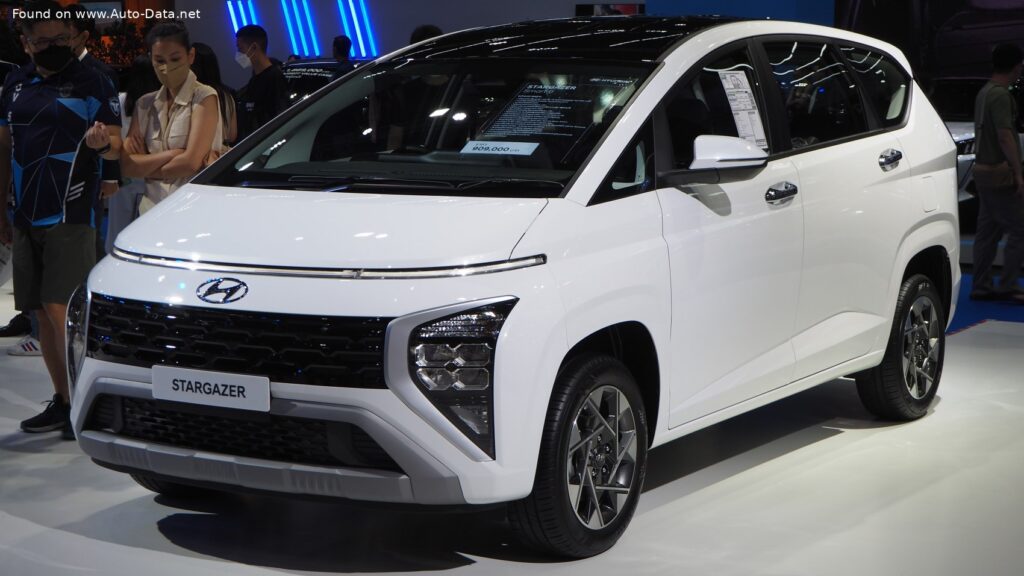

The Hyundai Stargazer 1.5, producing 115 horsepower, was introduced in July 2022 as a key variant within the first generation of the Stargazer MPV (Multi-Purpose Vehicle) line. Designed primarily for the Indonesian market and other emerging economies in Southeast Asia, the Stargazer aimed to provide an affordable and spacious family vehicle. This particular engine and transmission combination represented the entry-level offering for the model, balancing fuel efficiency with practicality for everyday use. Production of this variant continued until July 2025, coinciding with the end of the initial Stargazer generation.
Technical Specifications
| Brand | Hyundai |
| Model | Stargazer |
| Generation | Stargazer |
| Type (Engine) | 1.5 (115 Hp) |
| Start of production | July, 2022 |
| End of production | July, 2025 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | MPV |
| Seats | 6-7 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Power | 115 Hp @ 6300 rpm |
| Power per litre | 76.8 Hp/l |
| Torque | 144 Nm @ 4500 rpm / 106.21 lb.-ft. @ 4500 rpm |
| Engine layout | Front, Transverse |
| Engine Model/Code | Smartstream / G4FL |
| Engine displacement | 1497 cm3 / 91.35 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75.6 mm / 2.98 in. |
| Piston Stroke | 83.4 mm / 3.28 in. |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, D-CVVT |
| Engine oil capacity | 3.8 l / 4.02 US qt | 3.34 UK qt |
| Coolant | 5.2 l / 5.49 US qt | 4.58 UK qt |
| Max. weight | 1780 kg / 3924.23 lbs |
| Trunk (boot) space – minimum | 200 l / 7.06 cu. ft |
| Trunk (boot) space – maximum | 1892 l / 66.82 cu. ft |
| Fuel tank capacity | 40 l / 10.57 US gal | 8.8 UK gal |
| Length | 4460 mm / 175.59 in |
| Width | 1780 mm / 70.08 in |
| Height | 1690-1695 mm / 66.54 – 66.73 in |
| Wheelbase | 2780 mm / 109.45 in |
| Front track | 1559-1571 mm / 61.38 – 61.85 in |
| Rear (Back) track | 1572-1584 mm / 61.89 – 62.36 in |
| Ride height (ground clearance) | 190-195 mm / 7.48 – 7.68 in |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Torsion |
| Front brakes | Disc, 280 mm |
| Rear brakes | Drum, 228.6 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 185/65 R15; 205/55 R16 |
| Wheel rims size | 5.5J x 15; 6.5J x 16 |
Powertrain & Engine Architecture
The Hyundai Stargazer 1.5 utilizes the Smartstream G4FL engine, a 1.5-liter naturally aspirated inline-four cylinder gasoline engine. This engine is part of Hyundai’s Smartstream family, designed for improved fuel efficiency and reduced emissions. The G4FL employs multi-point fuel injection and a Double Overhead Camshaft (DOHC) valvetrain with Dual Continuous Variable Valve Timing (D-CVVT) on both intake and exhaust camshafts. This technology optimizes valve timing based on engine speed and load, enhancing both performance and fuel economy. The engine produces 115 horsepower at 6,300 rpm and 144 Nm (106.21 lb-ft) of torque at 4,500 rpm. The engine is transversely mounted, driving the front wheels. The standard transmission for this variant was a 6-speed manual gearbox, offering a direct and engaging driving experience.
Driving Characteristics
The 1.5-liter engine paired with the 6-speed manual transmission delivers adequate performance for typical daily driving scenarios. Acceleration is not particularly brisk, but sufficient for merging onto highways and navigating urban traffic. The gear ratios are tuned for fuel efficiency, meaning the engine needs to be revved somewhat to achieve optimal acceleration. Compared to potential higher-trim versions (which were not widely available), the 1.5L offered a more economical driving experience, prioritizing fuel savings over outright speed. The manual transmission provides drivers with greater control over the engine’s power band, allowing for more precise gear selection and a more connected feel. The relatively lightweight nature of the Stargazer helps mitigate the effects of the modest engine output.
Equipment & Trim Levels
The 1.5-liter Stargazer typically served as the base trim level. Standard features generally included air conditioning, power windows, power steering, and a basic audio system with Bluetooth connectivity. Safety features such as dual airbags and ABS (Anti-lock Braking System) were also standard. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat basic, design. Optional extras, depending on the market, could include a touchscreen infotainment system, rear parking sensors, and alloy wheels. The Stargazer’s spacious interior was a key selling point, offering comfortable seating for up to seven passengers depending on the configuration.
Chassis & Braking
The Stargazer utilizes a front-wheel-drive layout with an independent McPherson strut suspension in the front and a torsion beam suspension in the rear. This suspension setup provides a reasonable balance between ride comfort and handling. The front brakes are disc brakes, measuring 280mm in diameter, while the rear brakes are drum brakes, measuring 228.6mm. The use of drum brakes in the rear was a cost-saving measure common in this segment. Electric power steering provides light and easy steering feel, making it convenient for maneuvering in tight spaces. Ride height is approximately 190-195mm (7.48-7.68 inches), providing adequate ground clearance for typical road conditions.
Market Reception & Comparison
The Hyundai Stargazer 1.5 was generally well-received in its target markets, particularly for its spaciousness, affordability, and practicality. Critics noted that the engine, while adequate, was not particularly powerful. However, the fuel efficiency and comfortable ride were praised. Compared to other MPVs in the same segment, such as the Toyota Avanza or Mitsubishi Xpander, the Stargazer offered a competitive package with a distinctive design. The 1.5L manual version was often seen as the sweet spot for buyers prioritizing value and fuel economy over performance. Reliability reports have been generally positive, with the Smartstream engine proving to be relatively durable.
Legacy
The Hyundai Stargazer 1.5, while not a performance standout, established itself as a practical and reliable family vehicle in Southeast Asian markets. The G4FL engine has proven to be a robust and dependable unit, and parts availability remains good. On the used car market, these models represent an affordable entry point into the MPV segment. The Stargazer’s success paved the way for Hyundai to further expand its presence in the affordable family vehicle market, and the lessons learned from this generation informed the development of subsequent models. The 1.5L variant continues to be a popular choice for budget-conscious buyers seeking a spacious and dependable MPV.
