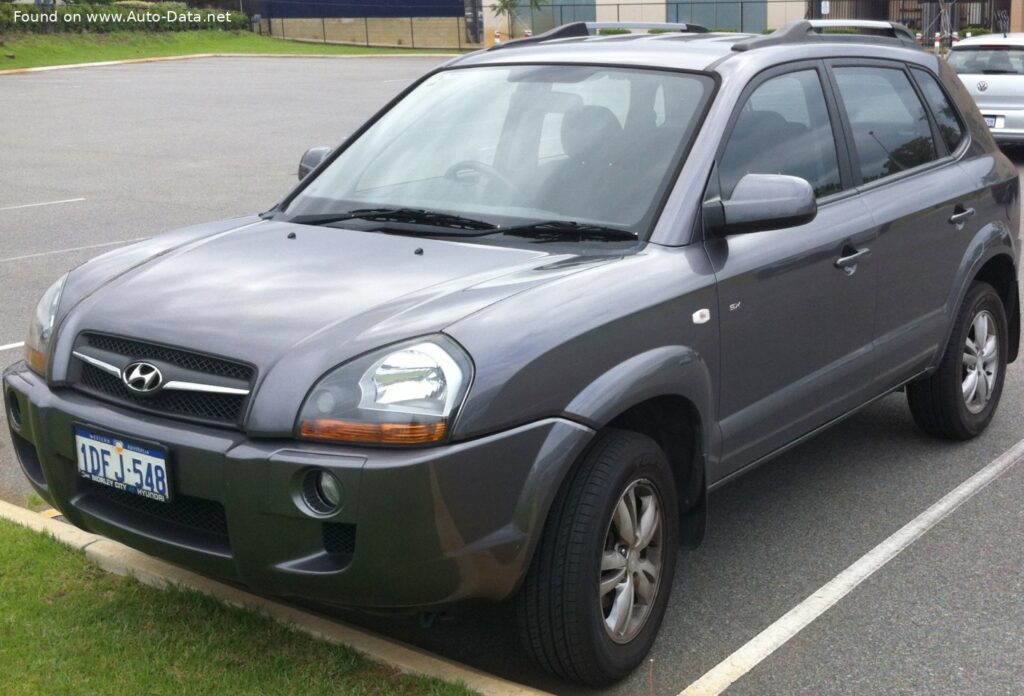

The Hyundai Tucson I 2.0 16V CRDi, produced from 2006 to 2008, represents a significant entry for Hyundai into the increasingly popular compact SUV segment in Europe and other international markets. Positioned as a mid-range offering within the Tucson I lineup (codenamed TL), this variant aimed to balance fuel efficiency with acceptable performance for everyday driving. It was a key model in establishing Hyundai’s reputation for value and reliability. The Tucson I, as a whole, was Hyundai’s first purpose-built SUV, moving away from adapting existing passenger car platforms. This 2.0 CRDi model was particularly important in markets favoring diesel engines due to their fuel economy and torque characteristics.
Technical Specifications
| Brand | Hyundai |
| Model | Tucson |
| Generation | Tucson I |
| Type (Engine) | 2.0 16V CRDi (140 Hp) |
| Start of production | 2006 |
| End of production | 2008 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 8.7 l/100 km (27 US mpg, 32.5 UK mpg, 11.5 km/l) |
| Fuel consumption (extra urban) | 5.8 l/100 km (40.6 US mpg, 48.7 UK mpg, 17.2 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 10.3 sec |
| Acceleration 0 – 62 mph | 10.3 sec |
| Acceleration 0 – 60 mph | 9.8 sec |
| Maximum speed | 178 km/h (110.6 mph) |
| Weight-to-power ratio | 10.9 kg/Hp, 91.5 Hp/tonne |
| Weight-to-torque ratio | 5 kg/Nm, 199.3 Nm/tonne |
| Power | 140 Hp @ 4000 rpm |
| Power per litre | 70.3 Hp/l |
| Torque | 305 Nm @ 1800 rpm (224.96 lb.-ft. @ 1800 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | D4EA |
| Engine displacement | 1991 cm3 (121.5 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 92 mm (3.62 in.) |
| Compression ratio | 17.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 5.9 l (6.23 US qt | 5.19 UK qt) |
| Coolant | 8.7 l (9.19 US qt | 7.65 UK qt) |
| Kerb Weight | 1530 kg (3373.07 lbs.) |
| Max. weight | 2120 kg (4673.8 lbs.) |
| Max load | 590 kg (1300.73 lbs.) |
| Trunk (boot) space – minimum | 644 l (22.74 cu. ft.) |
| Trunk (boot) space – maximum | 1856 l (65.54 cu. ft.) |
| Fuel tank capacity | 58 l (15.32 US gal | 12.76 UK gal) |
| Length | 4325 mm (170.28 in.) |
| Width | 1830 mm (72.05 in.) |
| Height | 1730 mm (68.11 in.) |
| Wheelbase | 2630 mm (103.54 in.) |
| Front track | 1550 mm (61.02 in.) |
| Rear (Back) track | 1550 mm (61.02 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 235/60 R16 |
Powertrain & Engine Architecture
The heart of the Tucson I 2.0 CRDi is the Hyundai D4EA engine, a 1991cc inline-four cylinder diesel. This engine utilizes a second-generation common-rail direct injection system, delivering fuel at extremely high pressure for improved combustion efficiency and reduced emissions. The D4EA features a single overhead camshaft (SOHC) operating four valves per cylinder. A turbocharger with an intercooler is employed to boost power output and enhance torque across a wider RPM range. The 16-valve configuration contributes to improved breathing and overall engine responsiveness. The engine’s 17.5:1 compression ratio is typical for a diesel engine, aiding in efficient combustion. This engine was known for its relatively quiet operation for a diesel of its era. The five-speed manual transmission was the standard offering for this variant, providing a balance between fuel economy and drivability.
Driving Characteristics
The 140 horsepower and 305 Nm (224.96 lb-ft) of torque provided by the 2.0 CRDi engine delivered adequate performance for the Tucson I. Acceleration from 0-60 mph took approximately 9.8 seconds, and top speed was around 110.6 mph. While not a particularly sporty SUV, the engine offered sufficient power for highway cruising and overtaking maneuvers. The manual transmission allowed for driver control, but the gear ratios were tuned more for fuel efficiency than outright acceleration. Compared to the later 2.7L V6 gasoline engine option, the 2.0 CRDi offered significantly better fuel economy but less overall power. The torque characteristics of the diesel engine meant that the Tucson felt responsive at lower RPMs, making it well-suited for everyday driving conditions.
Equipment & Trim Levels
The 2.0 CRDi variant of the Tucson I typically came equipped with a reasonable level of standard features. These included air conditioning, power windows, central locking, and an integrated audio system. Interior upholstery was generally cloth, with options for upgraded materials available. Depending on the market, features like alloy wheels, fog lights, and a sunroof were often available as optional extras. Trim levels varied by region, but the 2.0 CRDi generally occupied a mid-range position in the lineup, offering a good balance of features and affordability. Safety features included dual front airbags and ABS brakes.
Chassis & Braking
The Tucson I utilized a McPherson strut front suspension and a multi-link rear suspension, providing a comfortable ride quality. Stabilizer bars were fitted to both axles to reduce body roll during cornering. The braking system consisted of disc brakes on all four wheels, providing adequate stopping power. The ABS (Anti-lock Braking System) was standard, enhancing safety during emergency braking situations. The chassis was designed to provide a stable and predictable driving experience, prioritizing comfort over sporty handling. The weight distribution was reasonably balanced, contributing to the vehicle’s overall stability.
Market Reception & Comparison
The Hyundai Tucson I 2.0 CRDi was generally well-received by automotive critics. It was praised for its fuel efficiency, comfortable ride, and competitive pricing. However, some reviewers noted that the engine could be somewhat noisy compared to gasoline alternatives. Compared to other compact SUVs of the time, such as the Honda CR-V and Toyota RAV4, the Tucson offered a more affordable option with a comparable level of practicality. The diesel engine provided a significant advantage in terms of fuel economy, particularly for drivers who covered long distances. Reliability was also a strong point, contributing to the Tucson’s growing reputation for dependability.
Legacy
The Hyundai Tucson I 2.0 CRDi has proven to be a relatively reliable vehicle in the used car market. The D4EA engine, while not without its potential issues (such as turbocharger wear and common rail injector problems), is generally considered durable when properly maintained. Parts availability is good, and repair costs are typically reasonable. Today, these vehicles represent an affordable entry point into the compact SUV segment, offering a practical and economical transportation solution. The Tucson I laid the foundation for Hyundai’s continued success in the SUV market, paving the way for subsequent generations of the Tucson that have become increasingly popular worldwide.
