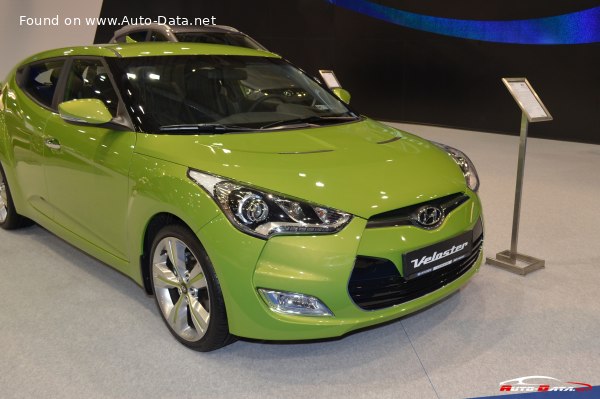

The Hyundai Veloster 1.6 GDI Automatic, produced from 2011 to 2015, represented an entry point into the innovative Veloster lineup. Positioned as the base model, it offered a unique three-door hatchback configuration aimed at a younger demographic seeking style and affordability. The Veloster, as a whole, was Hyundai’s attempt to break away from conventional hatchback designs and offer something visually distinct in the compact car segment. This particular variant, powered by the Gamma 1.6-liter gasoline direct injection (GDI) engine paired with a six-speed automatic transmission, was a key component of the initial Veloster offering, particularly in markets where manual transmissions were less popular.
Technical Specifications
| Brand | Hyundai |
| Model | Veloster |
| Generation | Veloster |
| Type (Engine) | 1.6 GDI (140 Hp) Automatic |
| Start of production | 2011 |
| End of production | 2015 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 7.7 l/100 km (30.5 US mpg) |
| Fuel consumption (extra urban) | 5.2 l/100 km (45.2 US mpg) |
| Fuel consumption (combined) | 6.2 l/100 km (37.9 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.3 sec |
| Acceleration 0 – 62 mph | 10.3 sec |
| Acceleration 0 – 60 mph | 9.8 sec |
| Maximum speed | 200 km/h (124.27 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 8.7 kg/Hp |
| Weight-to-torque ratio | 7.3 kg/Nm |
| Power | 140 Hp @ 6300 rpm |
| Torque | 167 Nm @ 4850 rpm (123.17 lb.-ft. @ 4850 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Gamma / G4FD |
| Engine displacement | 1591 cm3 (97.09 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 77 mm (3.03 in.) |
| Piston Stroke | 85.4 mm (3.36 in.) |
| Compression ratio | 11:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | D-CVVT |
| Engine oil capacity | 3.6 l (3.8 US qt | 3.17 UK qt) |
| Coolant capacity | 5.2 l (5.49 US qt | 4.58 UK qt) |
| Kerb Weight | 1220 kg (2689.64 lbs.) |
| Max. weight | 1700 kg (3747.86 lbs.) |
| Max load | 480 kg (1058.22 lbs.) |
| Trunk (boot) space – minimum | 440 l (15.54 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Length | 4220 mm (166.14 in.) |
| Width | 1790 mm (70.47 in.) |
| Height | 1399 mm (55.08 in.) |
| Wheelbase | 2650 mm (104.33 in.) |
| Front track | 1561 mm (61.46 in.) |
| Rear track | 1574 mm (61.97 in.) |
| Minimum turning circle | 10.4 m (34.12 ft.) |
| Drivetrain | Front wheel drive |
| Number of gears | 6 |
| Gearbox type | automatic transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 215/45 R17; 215/40 R18 |
| Wheel rims size | 7.0J x 17; 7.5J x 18 |
Powertrain & Engine Architecture
The heart of the Veloster 1.6 GDI Automatic is the Hyundai Gamma engine, specifically the G4FD variant. This 1.6-liter inline-four cylinder engine utilizes gasoline direct injection (GDI) technology, which improves fuel efficiency and power output compared to traditional port fuel injection systems. The GDI system injects fuel directly into the combustion chamber, allowing for more precise fuel control and a higher compression ratio of 11:1. The engine also features Hyundai’s Dual Continuously Variable Valve Timing (D-CVVT) system, optimizing valve timing for both intake and exhaust to enhance performance across the rev range. The six-speed automatic transmission, while providing convenience, was a traditional torque converter automatic, not a dual-clutch transmission (DCT) which became more common in later models. This transmission was tuned for smooth shifts and fuel economy rather than outright performance.
Driving Characteristics
The 140 horsepower and 167 lb-ft of torque produced by the 1.6 GDI engine, when paired with the six-speed automatic, resulted in adequate, but not exhilarating, performance. Acceleration from 0-60 mph took around 9.8 seconds, making it competitive with other entry-level compact hatchbacks of the time. The automatic transmission, while smooth, did exhibit some typical torque converter characteristics, such as slight hesitation during downshifts. Compared to the available manual transmission, the automatic version felt noticeably slower. The higher-output 2.0-liter engine options (and especially the turbocharged variants) offered significantly more power and a more engaging driving experience. The 1.6 GDI Automatic prioritized fuel efficiency and ease of use over sporty handling.
Equipment & Trim Levels
The base Veloster 1.6 GDI Automatic typically came standard with features such as air conditioning, power windows and locks, a basic audio system with USB and auxiliary inputs, and standard safety equipment like ABS, airbags, and stability control. Interior upholstery was typically cloth. Optional extras included a panoramic sunroof, a premium audio system, alloy wheels, and a rearview camera. Higher trim levels, such as the Style or Tech packages, added more features, but the 1.6 GDI Automatic remained the most affordable entry point into the Veloster range.
Chassis & Braking
The Veloster utilized a McPherson strut front suspension and an independent coil spring rear suspension. The front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were solid discs. The suspension tuning was geared towards comfort rather than sporty handling, providing a relatively smooth ride. The Veloster’s weight of around 2690 lbs was relatively light for its class, which helped to offset the modest power output of the 1.6 GDI engine. Stabilizer bars were included, but were relatively thin compared to those found on higher-performance Veloster models.
Market Reception & Comparison
Critics generally praised the Veloster’s unique styling and value proposition. However, the 1.6 GDI Automatic was often criticized for its lack of outright performance. Compared to the more powerful 2.0-liter engine options, the 1.6 GDI felt underpowered, especially when fully loaded with passengers. Fuel economy was a strong point, with combined MPG figures around 37.9, making it competitive with other fuel-efficient compact cars. Reliability was generally good, with few major issues reported with the 1.6 GDI engine and automatic transmission. The Veloster’s unique three-door configuration also proved to be a polarizing feature, with some buyers appreciating its distinctiveness while others found it impractical.
Legacy
The Hyundai Veloster 1.6 GDI Automatic, while not the most powerful or sporty variant, played a crucial role in establishing the Veloster as a viable contender in the compact car market. The Gamma 1.6 GDI engine proved to be a reliable and fuel-efficient powerplant. On the used car market, these models are generally affordable and represent a good value for buyers seeking a stylish and economical hatchback. While maintenance costs are generally reasonable, it’s important to ensure that the GDI system is properly maintained, as carbon buildup can sometimes occur with direct injection engines. The Veloster’s innovative design and accessible price point helped to attract a new generation of buyers to the Hyundai brand.
