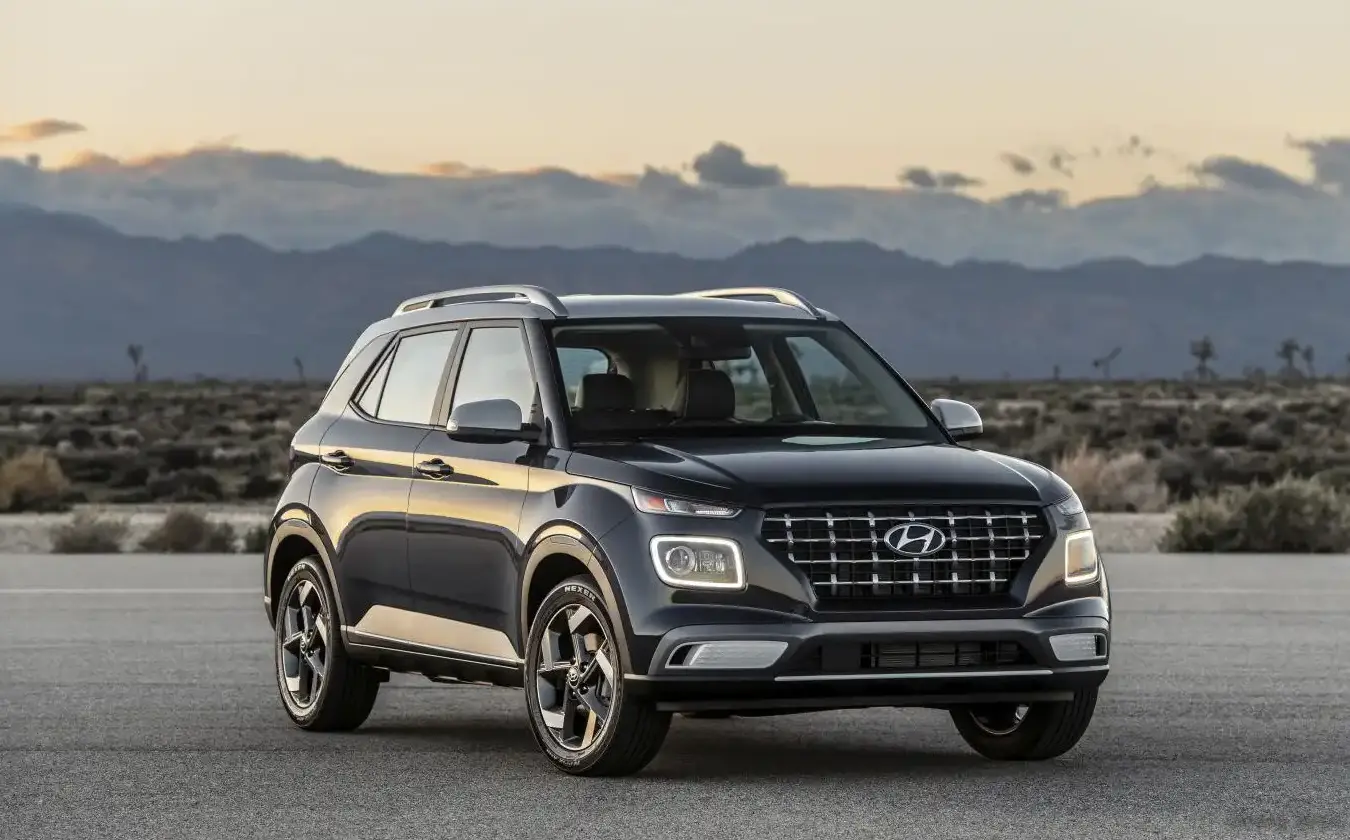

The Hyundai Venue 1.2 Kappa MPI (83 hp) was a subcompact SUV produced by Hyundai from May 2019 to June 2022. Positioned as the entry-level trim within the first generation Venue (codenamed QN), it served as an affordable and fuel-efficient option in the burgeoning subcompact SUV segment. Primarily marketed towards urban drivers and first-time car buyers, the 1.2L engine and five-speed manual transmission combination offered a balance of practicality and economy. The Venue, in general, was Hyundai’s smallest SUV offering, designed to slot below the Kona and Tucson in the brand’s lineup, and was initially not sold in the North American market until the 2020 model year.
Technical Specifications
| Brand | Hyundai |
| Model | Venue |
| Generation | Venue |
| Type (Engine) | 1.2 Kappa MPI (83 Hp) |
| Start of production | May, 2019 |
| End of production | June, 2022 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Power | 83 Hp @ 6000 rpm |
| Power per litre | 69.3 Hp/l |
| Torque | 115 Nm @ 4000 rpm / 84.82 lb.-ft. @ 4000 rpm |
| Engine Model/Code | Kappa / G4LA |
| Engine displacement | 1197 cm3 / 73.05 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 3.6 l / 3.8 US qt | 3.17 UK qt |
| Coolant | 4.9 l / 5.18 US qt | 4.31 UK qt |
| Fuel tank capacity | 45 l / 11.89 US gal | 9.9 UK gal |
| Length | 3995 mm / 157.28 in |
| Width | 1770 mm / 69.69 in |
| Height | 1605 mm / 63.19 in |
| Wheelbase | 2500 mm / 98.43 in |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Torsion |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Tires size | 195/65 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of the Venue 1.2 Kappa MPI is the Hyundai Kappa G4LA engine, a 1.2-liter naturally aspirated inline-four cylinder gasoline engine. This engine utilizes a multi-point fuel injection (MPI) system, a relatively simple and cost-effective technology compared to direct injection. The engine features a single overhead camshaft (SOHC) valvetrain with four valves per cylinder. The Kappa engine family is known for its compact design and relatively lightweight construction, contributing to the Venue’s overall efficiency. The 83 horsepower output is achieved at 6000 rpm, while peak torque of 115 Nm (84.82 lb-ft) arrives at 4000 rpm. This engine is paired with a five-speed manual transmission, delivering power to the front wheels. The transmission was chosen for its simplicity and affordability, aligning with the Venue’s target market.
Driving Characteristics
The Venue 1.2L with the manual transmission offers modest performance. Acceleration is adequate for city driving, but highway merging and overtaking require careful planning. The five-speed manual transmission provides a reasonable level of driver engagement, although the gear ratios are tuned for fuel economy rather than outright performance. The relatively low horsepower and torque figures mean the engine needs to be revved to extract maximum power. Compared to potential future turbocharged variants or even higher-displacement naturally aspirated engines, the 1.2L feels noticeably less powerful. However, the lighter weight of the Venue helps to mitigate the effects of the smaller engine. The steering is light and easy, making it well-suited for navigating tight urban streets. The suspension is tuned for comfort, providing a reasonably smooth ride, although it can feel somewhat bouncy over larger bumps.
Equipment & Trim Levels
The base Venue 1.2 Kappa MPI typically came with a fairly basic level of equipment. Standard features generally included air conditioning, power windows, power door locks, and a basic audio system with Bluetooth connectivity. Safety features such as ABS (Anti-lock Braking System) and dual airbags were also standard. Higher trim levels, available with the 1.2L engine, added features like alloy wheels, a touchscreen infotainment system, a rearview camera, and automatic climate control. Interior upholstery was typically cloth, with a simple and functional dashboard layout. Optional extras included features like a sunroof, and upgraded audio systems.
Chassis & Braking
The Hyundai Venue utilizes a front-wheel-drive chassis with an independent McPherson strut suspension in the front and a torsion beam suspension in the rear. The torsion beam rear suspension is a cost-effective solution that provides adequate ride comfort for everyday driving. The front brakes are disc brakes, while the rear brakes are drum brakes. This configuration is typical for vehicles in this price segment. The Venue’s relatively lightweight construction helps to reduce the strain on the braking system. The steering system is an electric power steering (EPS) system, providing light and easy steering feel.
Market Reception & Comparison
The Hyundai Venue 1.2 Kappa MPI was generally well-received as an affordable and practical subcompact SUV. Critics praised its fuel efficiency, compact size, and value for money. However, some reviewers noted the engine’s lack of power, particularly when fully loaded or driving uphill. Compared to other subcompact SUVs available at the time, the Venue offered a competitive price point and a generous warranty. In terms of fuel economy, the 1.2L engine delivered respectable figures, making it an attractive option for budget-conscious buyers. Reliability reports generally indicated good reliability for the Kappa engine, although regular maintenance was essential.
Legacy
The Hyundai Venue 1.2 Kappa MPI served as an important entry point into the Hyundai brand for many buyers. While the engine itself isn’t known for being particularly groundbreaking, its reliability and fuel efficiency have contributed to the Venue’s positive reputation in the used car market. As of today, used examples of the 1.2L Venue are readily available and generally offer good value for money. The Kappa engine, while not a performance powerhouse, has proven to be a durable and dependable unit when properly maintained. The Venue, as a whole, helped Hyundai establish a stronger presence in the subcompact SUV segment, paving the way for future models like the updated Venue and the Kona.
