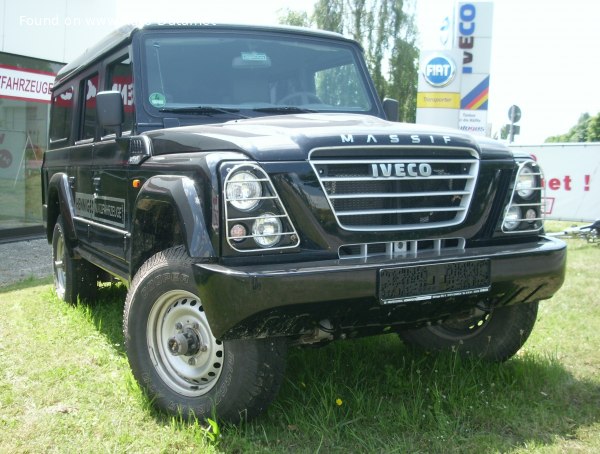

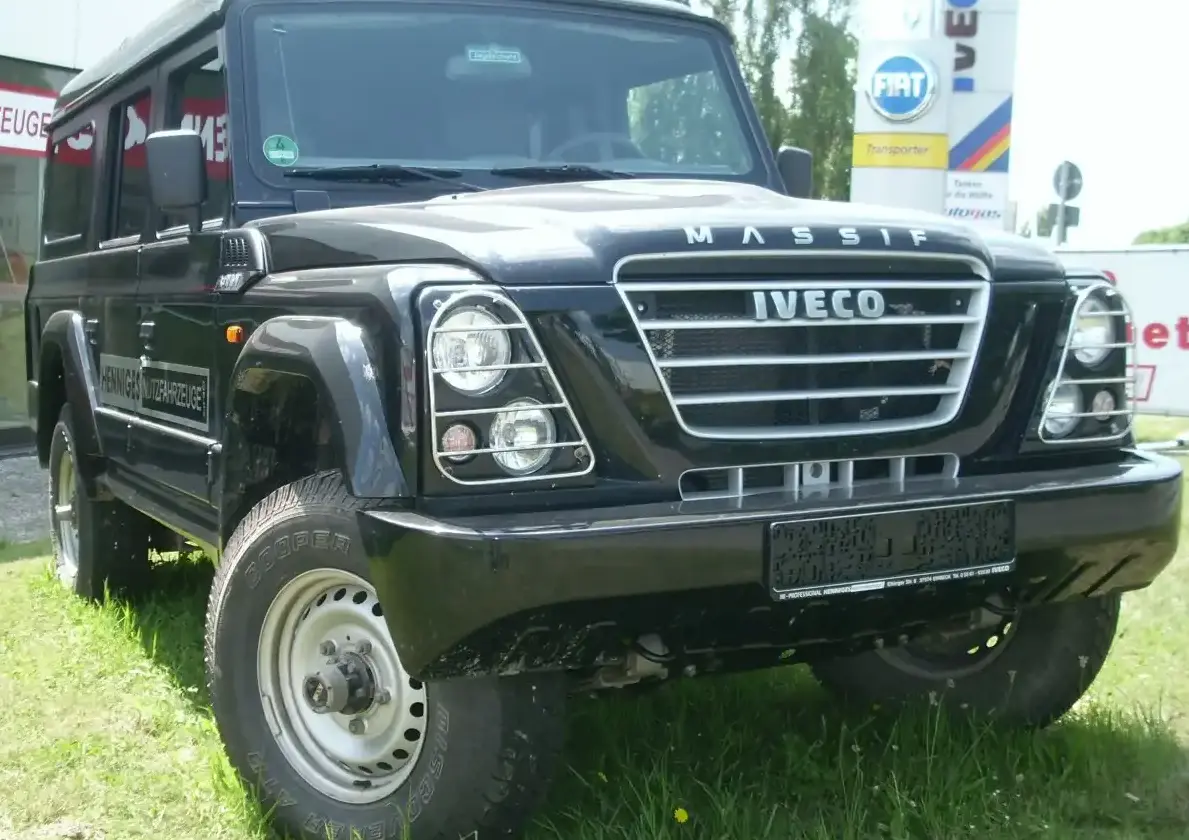

The Iveco Massif 4×4 3.0 HPT, produced from 2008 to 2011, represents a unique entry in the off-road vehicle segment. Developed by Iveco, a commercial vehicle manufacturer, the Massif was intended to fill a niche between traditional pickup trucks and more utilitarian 4x4s. It was primarily marketed in Europe and other international markets, offering a blend of commercial robustness and limited passenger comfort. The 3.0 HPT variant, equipped with a 3.0-liter turbocharged diesel engine producing 176 horsepower, was positioned as a mid-range offering within the Massif lineup, balancing performance with fuel efficiency. The Massif’s design and engineering are heavily influenced by its origins as a potential military vehicle, resulting in a notably durable and capable platform.
Technical Specifications
| Brand | Iveco |
| Model | Massif 4×4 |
| Generation | Massif 4×4 |
| Type (Engine) | 3.0 HPT (176 Hp) |
| Start of production | 2008 |
| End of production | 2011 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Off-road vehicle |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 11.4 l/100 km (20.6 US mpg) |
| Fuel consumption (extra urban) | 9.9 l/100 km (23.8 US mpg) |
| Fuel consumption (combined) | 10.4 l/100 km (22.6 US mpg) |
| Fuel Type | Diesel |
| Maximum speed | 140 km/h (86.99 mph) |
| Weight-to-power ratio | 12.2 kg/Hp |
| Weight-to-torque ratio | 5.4 kg/Nm |
| Power | 176 Hp @ 3500 rpm |
| Torque | 400 Nm @ 2000 rpm (295.02 lb.-ft. @ 2000 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | F1C HPI |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 7.6 l (8.03 US qt | 6.69 UK qt) |
| Coolant capacity | 9 l (9.51 US qt | 7.92 UK qt) |
| Kerb Weight | 2140 kg (4717.89 lbs) |
| Max. weight | 3050 kg (6724.1 lbs) |
| Max load | 910 kg (2006.21 lbs) |
| Fuel tank capacity | 100 l (26.42 US gal | 22 UK gal) |
| Length | 4720 mm (185.83 in) |
| Width | 1750 mm (68.9 in) |
| Height | 2050 mm (80.71 in) |
| Wheelbase | 2768 mm (108.98 in) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears | 6 |
| Gearbox type | Manual transmission |
| Front suspension | Leaf spring |
| Rear suspension | Leaf spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Tires size | 235/85 R16 |
Powertrain & Engine Architecture
The heart of the Massif 3.0 HPT is the F1C HPI 3.0-liter inline-four diesel engine. This engine utilizes a common rail direct injection system, delivering fuel at extremely high pressure for improved combustion efficiency and reduced emissions. A turbocharger with an intercooler further enhances performance, boosting power output to 176 horsepower at 3500 rpm and generating a substantial 400 Nm (295 lb-ft) of torque at just 2000 rpm. This torque curve provides strong low-end pulling power, ideal for off-road driving and hauling loads. The engine is longitudinally mounted in the chassis. The Massif 3.0 HPT was exclusively offered with a six-speed manual transmission, chosen for its durability and suitability for demanding applications. The transmission’s gear ratios are geared towards maximizing torque delivery rather than achieving high-speed acceleration.
Driving Characteristics
The Iveco Massif 3.0 HPT delivers a driving experience that prioritizes capability over refinement. The engine’s strong torque output makes it adept at tackling challenging terrain, and the manual transmission allows for precise control. However, the vehicle’s high center of gravity and leaf spring suspension contribute to a somewhat firm ride, particularly on paved roads. Acceleration is adequate, but not particularly brisk, with a focus on maintaining momentum rather than rapid speed. The six-speed gearbox is well-suited to the engine’s characteristics, providing a good spread of ratios for both on- and off-road use. Compared to potential higher-output versions (which were never officially offered), the 176 hp variant provides a balance between power and fuel economy, making it a more practical choice for everyday use.
Equipment & Trim Levels
The Iveco Massif 4×4 was not offered with a wide range of trim levels. The focus was on functionality and durability rather than luxury. Standard equipment typically included air conditioning, power windows, and a basic audio system. Interior upholstery was typically hard-wearing cloth. Optional extras were limited, but could include features such as a winch, upgraded tires, and a roof rack. The interior design is utilitarian, reflecting the vehicle’s commercial origins. Dashboard layout is straightforward, with clearly labeled controls.
Chassis & Braking
The Massif’s chassis is a robust ladder-frame construction, providing a solid foundation for off-road driving. Both front and rear suspension utilize leaf springs, offering high load-carrying capacity but a less compliant ride compared to coil springs. The braking system features disc brakes on all four wheels, providing adequate stopping power for the vehicle’s weight. The Massif’s tires are typically all-terrain tires, designed to provide good grip on a variety of surfaces. The vehicle’s high ground clearance and short overhangs further enhance its off-road capability.
Market Reception & Comparison
The Iveco Massif 4×4 received mixed reviews from automotive critics. It was praised for its ruggedness, off-road capability, and strong diesel engine. However, it was also criticized for its harsh ride, utilitarian interior, and limited on-road refinement. Compared to other vehicles in its class, such as the Jeep Wrangler or Land Rover Defender, the Massif offered a more affordable price point but lacked the same level of brand recognition and refinement. Fuel economy was reasonable for a vehicle of its size and weight, averaging around 22.6 US mpg in combined driving. Reliability was generally good, owing to the simplicity of the design and the durability of the components.
Legacy
The Iveco Massif 4×4 was a relatively short-lived model, but it has gained a cult following among off-road enthusiasts. Its robust construction and capable powertrain make it a popular choice for overlanding and other adventurous activities. The 3.0 HPT engine is known for its reliability and longevity, and parts availability is generally good. On the used car market, the Massif 4×4 commands a reasonable price, reflecting its unique character and off-road capability. While not a mainstream success, the Iveco Massif 4×4 remains a distinctive and capable vehicle, representing a unique approach to the off-road vehicle segment.
