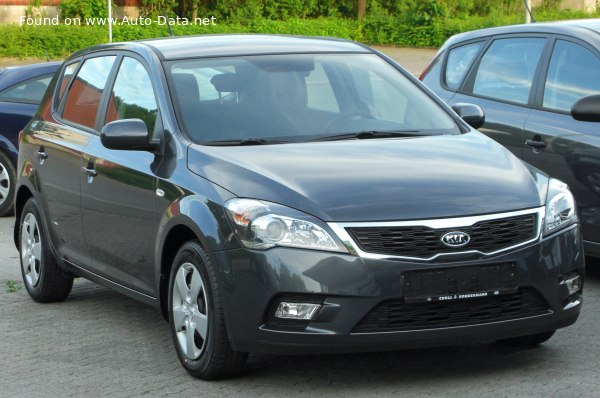

The Kia Cee’d, launched in 2006, represented Kia’s first foray into the European compact hatchback market. The first generation (JD) was designed specifically for European tastes, and underwent a significant facelift in 2009, denoted as the Cee’d I (facelift). Among the engine options available, the 1.4-liter 16V producing 90 horsepower with a five-speed manual transmission was a key entry-level offering. Production of this specific configuration ran from 2009 to 2012, aiming to provide affordable and economical transportation within the competitive European ‘C’ segment. This variant positioned itself as the most accessible Cee’d, targeting budget-conscious buyers and those prioritizing fuel efficiency over outright performance.
Technical Specifications
| Brand | Kia |
| Model | Cee’d |
| Generation | Cee’d I (facelift 2009) |
| Type (Engine) | 1.4 16V (90 Hp) |
| Start of production | 2009 |
| End of production | 2012 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.2 l/100 km (32.7 US mpg) |
| Fuel consumption (extra urban) | 5.1 l/100 km (46.1 US mpg) |
| Fuel consumption (combined) | 5.8 l/100 km (40.6 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.4 sec |
| Acceleration 0 – 62 mph | 13.4 sec |
| Acceleration 0 – 60 mph | 12.7 sec |
| Maximum speed | 180 km/h (111.85 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 14 kg/Hp |
| Weight-to-torque ratio | 9.3 kg/Nm |
| Power | 90 Hp |
| Torque | 136 Nm @ 5000 rpm (100.31 lb.-ft. @ 5000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | G4FA |
| Engine displacement | 1396 cm3 (85.19 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.3 l (3.49 US qt | 2.9 UK qt) |
| Coolant capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Kerb Weight | 1263 kg (2784.44 lbs.) |
| Max. weight | 1710 kg (3769.9 lbs.) |
| Max load | 447 kg (985.47 lbs.) |
| Trunk (boot) space – minimum | 340 l (12.01 cu. ft.) |
| Trunk (boot) space – maximum | 1300 l (45.91 cu. ft.) |
| Fuel tank capacity | 53 l (14 US gal | 11.66 UK gal) |
| Length | 4235 mm (166.73 in.) |
| Width | 1790 mm (70.47 in.) |
| Height | 1480 mm (58.27 in.) |
| Wheelbase | 2650 mm (104.33 in.) |
| Front track | 1538 mm (60.55 in.) |
| Rear track | 1536 mm (60.47 in.) |
| Minimum turning circle | 10.34 m (33.92 ft.) |
| Drivetrain | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Tires size | 185/65 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of this Cee’d variant is the Kia G4FA engine, a 1.4-liter inline-four cylinder gasoline engine. This engine utilizes a multi-point fuel injection system, delivering fuel directly into the intake ports. The engine features a double overhead camshaft (DOHC) valvetrain, operating 16 valves (four per cylinder) to optimize airflow and combustion efficiency. The G4FA is a naturally aspirated engine, meaning it doesn’t rely on turbocharging or supercharging for increased power. The five-speed manual transmission was the standard offering, chosen for its simplicity and contribution to fuel economy. The transmission’s gear ratios were tuned for everyday driving, prioritizing acceleration in lower gears and efficient cruising at highway speeds.
Driving Characteristics
The 90 horsepower output of the 1.4-liter engine translates to modest, but adequate, performance. Acceleration from 0-60 mph takes around 12.7 seconds, making it suitable for urban and suburban driving but less ideal for frequent highway overtaking. The engine delivers its peak torque of 136 Nm (100.31 lb-ft) at 5000 rpm, requiring drivers to utilize the engine’s rev range to achieve optimal performance. Compared to the more powerful 1.6-liter engine options or the diesel variants, this 1.4L felt noticeably less responsive. However, the lighter engine weight contributed to a more nimble feel in corners. The five-speed manual transmission offered a direct connection to the engine, allowing for precise gear selection and control.
Equipment & Trim Levels
The 1.4 16V Cee’d typically came with a base level of equipment, focusing on essential features. Standard amenities included air conditioning, power steering, electric front windows, and a basic audio system with CD player. Safety features such as ABS (Anti-lock Braking System) and front airbags were also standard. Higher trim levels, such as the ‘2’ or ‘3’ trims, offered additional features like alloy wheels, rear electric windows, a more advanced audio system, and optional extras like parking sensors and climate control. Interior upholstery was typically cloth, with a functional and durable design. The dashboard layout was straightforward and user-friendly.
Chassis & Braking
The Cee’d I utilized a MacPherson strut front suspension and a coupled torsion beam rear suspension. This setup provided a good balance between ride comfort and handling. The front brakes were ventilated discs, offering adequate stopping power, while the rear brakes were solid discs. The steering employed a rack and pinion system, providing precise and responsive steering feel. The 1.4-liter models typically came equipped with 15-inch steel wheels with wheel covers, or optional alloy wheels on higher trims. The suspension was tuned for comfort, prioritizing a smooth ride over sporty handling.
Market Reception & Comparison
The 1.4-liter Cee’d was generally well-received as an affordable and practical hatchback. Critics praised its value for money, fuel efficiency, and comfortable ride. However, the engine’s lack of power was a common criticism, particularly when compared to competitors like the Ford Focus or Volkswagen Golf. The 1.6-liter Cee’d offered a noticeable performance improvement, while the 1.6 CRDi diesel provided superior fuel economy. In terms of reliability, the G4FA engine proved to be generally dependable, although regular maintenance was crucial. Fuel economy figures of around 40.6 US mpg combined were competitive for its class.
Legacy
The Kia Cee’d I (facelift) 1.4 16V remains a relatively common sight on used car markets today. Its affordability and reputation for reliability make it an attractive option for budget-conscious buyers. The G4FA engine, while not particularly powerful, is known for its durability and relatively low maintenance costs. However, potential buyers should be aware of the engine’s limitations in terms of performance and ensure that the vehicle has been properly maintained. The Cee’d I played a significant role in establishing Kia as a credible competitor in the European compact hatchback segment, paving the way for subsequent generations of the Cee’d and solidifying Kia’s reputation for building value-for-money vehicles.
