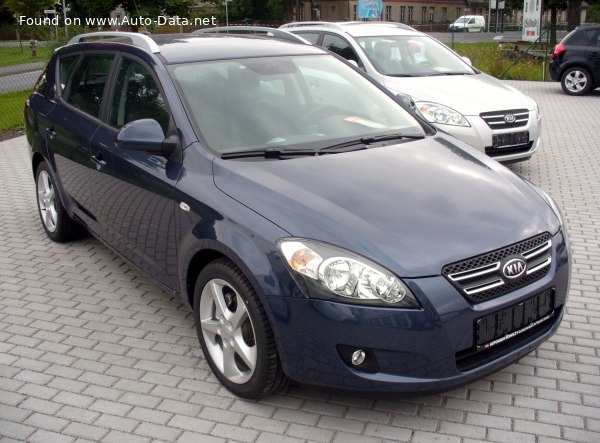

The Kia Cee’d SW 1.4 CVVT, producing 109 horsepower, was a key variant in the first generation (JD) of Kia’s foray into the European compact estate market. Introduced in 2007 and continuing through 2009, this model aimed to provide an affordable and practical option for families seeking a versatile vehicle. Positioned as an entry-level trim within the Cee’d SW lineup, it offered a balance between fuel efficiency and usability. The Cee’d SW (Station Wagon) itself was built on the Hyundai-Kia ED platform, shared with the Hyundai i30, marking Kia’s commitment to designing vehicles specifically tailored for the European consumer. This variant was primarily sold in Europe, where the station wagon body style remains popular.
Technical Specifications
| Brand | Kia |
| Model | Cee’d |
| Generation | Cee’d SW I |
| Type (Engine) | 1.4 CVVT (109 Hp) |
| Start of production | 2007 |
| End of production | 2009 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.9 l/100 km (29.8 US mpg, 35.8 UK mpg, 12.7 km/l) |
| Fuel consumption (extra urban) | 5.4 l/100 km (43.6 US mpg, 52.3 UK mpg, 18.5 km/l) |
| Fuel consumption (combined) | 6.3 l/100 km (37.3 US mpg, 44.8 UK mpg, 15.9 km/l) |
| CO2 emissions | 149 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11.7 sec |
| Acceleration 0 – 62 mph | 11.7 sec |
| Acceleration 0 – 60 mph | 11.1 sec |
| Maximum speed | 187 km/h (116.2 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 12.1 kg/Hp, 82.8 Hp/tonne |
| Weight-to-torque ratio | 9.6 kg/Nm, 104 Nm/tonne |
| Power | 109 Hp @ 6200 rpm |
| Power per litre | 78.1 Hp/l |
| Torque | 137 Nm @ 5000 rpm (101.05 lb.-ft. @ 5000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | G4FA |
| Engine displacement | 1396 cm3 (85.19 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 77 mm (3.03 in.) |
| Piston Stroke | 74.49 mm (2.93 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC CVVT |
| Engine oil capacity | 3.3 l (3.49 US qt | 2.9 UK qt) |
| Coolant capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Kerb Weight | 1317-1399 kg (2903.49 – 3084.27 lbs.) |
| Max. weight | 1820 kg (4012.41 lbs.) |
| Max load | 421-503 kg (928.15 – 1108.93 lbs.) |
| Trunk (boot) space – minimum | 534 l (18.86 cu. ft.) |
| Trunk (boot) space – maximum | 1664 l (58.76 cu. ft.) |
| Fuel tank capacity | 53 l (14 US gal | 11.66 UK gal) |
| Max. roof load | 80 kg (176.37 lbs.) |
| Permitted trailer load with brakes (12%) | 1200 kg (2645.55 lbs.) |
| Permitted trailer load without brakes | 550 kg (1212.54 lbs.) |
| Permitted towbar download | 55 kg (121.25 lbs.) |
| Length | 4470 mm (175.98 in.) |
| Width | 1790 mm (70.47 in.) |
| Height | 1490 mm (58.66 in.) |
| Wheelbase | 2650 mm (104.33 in.) |
| Front track | 1546 mm (60.87 in.) |
| Rear track | 1544 mm (60.79 in.) |
| Front overhang | 865 mm (34.06 in.) |
| Rear overhang | 955 mm (37.6 in.) |
| Minimum turning circle | 10.3-10.8 m (33.79 – 35.43 ft.) |
| Drivetrain | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link suspension, Transverse stabilizer |
| Front brakes | Ventilated discs, 280 mm |
| Rear brakes | Disc, 262 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 185/65 R15; 195/65 R15; 205/55 R16; 225/45 R17 |
| Wheel rims size | 5.5J x 15; 6J x 16; 7J x 17 |
Powertrain & Engine Architecture
The Cee’d SW 1.4 CVVT utilized the Kia G4FA engine, a 1.4-liter inline-four cylinder gasoline engine. This engine was part of Kia’s Gamma engine family, designed for fuel efficiency and reasonable performance. The ‘CVVT’ designation stands for Continuously Variable Valve Timing, a technology employed to optimize engine breathing across a wider range of engine speeds, improving both power and fuel economy. The G4FA features a multi-point fuel injection system, delivering fuel directly into the intake ports. The engine’s valvetrain consists of a double overhead camshaft (DOHC) configuration with four valves per cylinder. The 5-speed manual transmission was standard, providing a relatively conventional gear ratio spread designed for everyday driving. The engine produced 109 horsepower at 6200 rpm and 137 Nm (101 lb-ft) of torque at 5000 rpm.
Driving Characteristics
The 1.4 CVVT engine in the Cee’d SW, paired with the 5-speed manual transmission, offered a comfortable but not particularly sporty driving experience. Acceleration from 0 to 60 mph took around 11.1 seconds, and top speed was limited to 187 km/h (116 mph). The engine felt adequate for typical commuting and highway cruising, but struggled when fully loaded or attempting brisk acceleration. The gear ratios were tuned for fuel efficiency rather than outright performance. Compared to higher-output versions of the Cee’d SW, such as those equipped with the 1.6-liter engine, this variant felt noticeably less powerful. However, it provided a smoother and more economical driving experience, making it ideal for drivers prioritizing practicality and fuel costs.
Equipment & Trim Levels
The 1.4 CVVT Cee’d SW typically came with a reasonable level of standard equipment. This included air conditioning, power windows, central locking, and a basic audio system with CD player. Safety features such as ABS (Anti-lock Braking System) and front airbags were also standard. Higher trim levels offered options like alloy wheels, a trip computer, and upgraded audio systems. Interior upholstery was typically cloth, with a functional and durable design. The dashboard layout was straightforward and user-friendly, prioritizing ease of use over stylistic flair.
Chassis & Braking
The Cee’d SW featured an independent McPherson strut suspension at the front and an independent multi-link suspension at the rear, providing a comfortable ride quality. A transverse stabilizer bar was included to reduce body roll during cornering. The braking system consisted of ventilated discs at the front and solid discs at the rear. The suspension setup was tuned to prioritize comfort and stability, rather than sporty handling. The steering was electrically assisted, providing light and easy steering feel.
Market Reception & Comparison
The Kia Cee’d SW 1.4 CVVT was generally well-received by automotive critics as a practical and affordable estate car. It was praised for its spacious interior, comfortable ride, and competitive fuel economy. However, some critics noted its lack of outright performance and somewhat bland styling. Compared to other estate cars in its class, such as the Ford Focus Estate and Vauxhall Astra Estate, the Cee’d SW offered a compelling value proposition, particularly considering Kia’s then-improving reputation for reliability. The 1.4L engine offered better fuel economy than the 1.6L, but at the cost of performance.
Legacy
The Kia Cee’d SW 1.4 CVVT has proven to be a relatively reliable vehicle in the used car market. The G4FA engine is known for its durability, and routine maintenance is generally straightforward and affordable. While not a performance standout, this variant remains a practical and economical choice for buyers seeking a spacious and versatile estate car. Parts availability is generally good, and the Cee’d SW continues to be a popular choice for families and individuals looking for a dependable and affordable vehicle.
