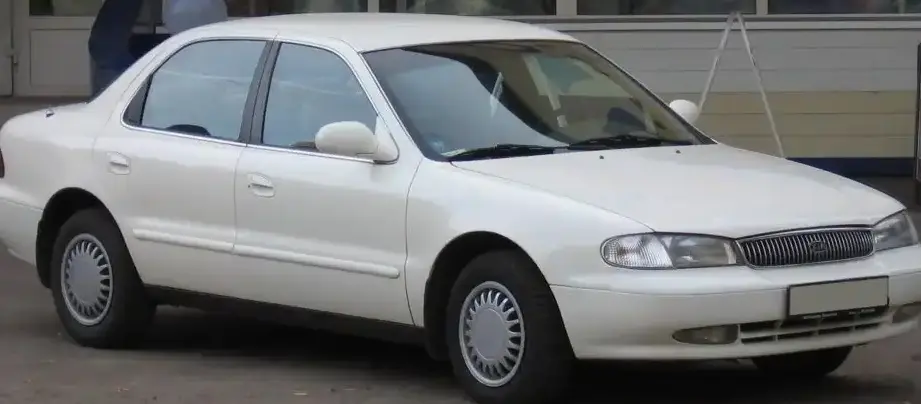

The Kia Clarus (K9A), produced between 1996 and 1998, represented a significant step forward for the South Korean automaker in the mid-size sedan segment. Positioned as a more upscale offering than the earlier Concord, the Clarus aimed to compete with established Japanese and American brands. The 2.0 i 16V variant, equipped with a 133 horsepower engine, served as a key model within the Clarus lineup, offering a balance between performance and affordability. It was primarily marketed towards families and individuals seeking a comfortable and reliable vehicle with a touch of sophistication. The K9A platform was a front-wheel drive configuration, and the Clarus was sold primarily in Asian and some European markets, with limited presence in North America.
Technical Specifications
| Brand | Kia |
| Model | Clarus |
| Generation | Clarus (K9A) |
| Type (Engine) | 2.0 i 16V (133 Hp) |
| Start of production | 1996 |
| End of production | 1998 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (combined) | 9.9 l/100 km |
| Fuel consumption (US mpg) | 23.8 US mpg |
| Fuel consumption (UK mpg) | 28.5 UK mpg |
| Fuel consumption (km/l) | 10.1 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.9 sec |
| Acceleration 0 – 62 mph | 10.9 sec |
| Acceleration 0 – 60 mph | 10.4 sec |
| Maximum speed | 195 km/h (121.17 mph) |
| Weight-to-power ratio | 9.3 kg/Hp |
| Weight-to-torque ratio | 7.2 kg/Nm |
| Power | 133 Hp @ 6000 rpm |
| Power per litre | 66.6 Hp/l |
| Torque | 171 Nm @ 4000 rpm (126.12 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | FE |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm (3.39 in.) |
| Piston Stroke | 86 mm (3.39 in.) |
| Compression ratio | 9.2:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.3 l (4.54 US qt | 3.78 UK qt) |
| Kerb Weight | 1234 kg (2720.5 lbs.) |
| Max. weight | 1770 kg (3902.18 lbs.) |
| Max load | 536 kg (1181.68 lbs.) |
| Trunk (boot) space – minimum | 424 l (14.97 cu. ft.) |
| Trunk (boot) space – maximum | 764 l (26.98 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4696 mm (184.88 in.) |
| Width | 1770 mm (69.69 in.) |
| Height | 1420 mm (55.91 in.) |
| Wheelbase | 2659 mm (104.69 in.) |
| Front track | 1500 mm (59.06 in.) |
| Rear (Back) track | 1500 mm (59.06 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65R14 |
Powertrain & Engine Architecture
The heart of the Clarus 2.0 i 16V is the Kia FE engine, a 1.998-liter inline-four cylinder gasoline engine. This engine utilizes a multi-port fuel injection system, delivering fuel directly into the intake ports for improved combustion efficiency. The ‘16V’ designation indicates the engine features a dual overhead camshaft (DOHC) valvetrain, operating four valves per cylinder. This configuration enhances volumetric efficiency, contributing to the engine’s power output. The FE engine, while not a particularly advanced design, was known for its relative simplicity and durability. The 5-speed manual transmission was the standard offering for this trim, providing drivers with direct control over the engine’s power. The transmission’s gear ratios were tuned for a balance of acceleration and fuel economy, though it wasn’t particularly sporty in its gearing.
Driving Characteristics
The 133 horsepower and 126 lb-ft of torque produced by the 2.0-liter engine provided adequate, but not exhilarating, performance. Acceleration from 0-60 mph took around 10.4 seconds, placing it in the slower end of the mid-size sedan spectrum. The manual transmission allowed for reasonable control, but the engine lacked the low-end grunt of larger displacement engines or turbocharged alternatives. Compared to other Clarus variants, such as those equipped with a larger 2.5-liter engine (where available in certain markets), the 2.0-liter felt noticeably less powerful. However, it offered a more fuel-efficient driving experience. The suspension provided a comfortable ride, prioritizing smoothness over sporty handling. Steering was light and easy, making it well-suited for city driving.
Equipment & Trim Levels
The 2.0 i 16V Clarus typically came with a reasonable level of standard equipment. This included power windows and locks, manual air conditioning, and a basic audio system. Interior upholstery was typically cloth, with a relatively simple dashboard layout. Optional extras could include power sunroof, upgraded audio systems, and alloy wheels. The trim level generally sat in the mid-range of the Clarus lineup, offering a step up from the base models but lacking the luxury features found in higher-spec trims. Safety features were relatively basic for the time, typically including ABS brakes as standard equipment.
Chassis & Braking
The Clarus K9A utilized a front-wheel drive chassis with a MacPherson strut front suspension and a coil spring rear suspension. This setup provided a comfortable ride quality, but wasn’t designed for aggressive cornering. The braking system consisted of ventilated discs on the front wheels and solid discs on the rear, providing adequate stopping power for the vehicle’s weight and performance. The ABS system helped to maintain steering control during hard braking. The chassis was relatively lightweight, contributing to the car’s fuel efficiency.
Market Reception & Comparison
The Kia Clarus 2.0 i 16V was generally well-received as a practical and affordable mid-size sedan. Critics praised its comfortable ride and spacious interior, but noted its lack of sporty handling and relatively modest performance. Compared to competitors like the Toyota Camry and Honda Accord, the Clarus offered a lower price point but lacked the same level of refinement and brand recognition. Fuel economy was considered average for its class. Reliability was generally good, though not exceptional. The 2.0-liter engine proved to be durable, but maintenance costs were comparable to other vehicles in its segment.
Legacy
The Kia Clarus played a crucial role in establishing Kia as a viable competitor in the global automotive market. While not a groundbreaking vehicle, it demonstrated Kia’s ability to produce a reasonably well-built and equipped mid-size sedan. The 2.0-liter FE engine proved to be a reliable powerplant, and many examples are still on the road today. In the used car market, the Clarus 2.0 i 16V represents an affordable and practical option for those seeking a basic, no-frills transportation. Parts availability is generally good, and maintenance is relatively straightforward, making it a popular choice for budget-conscious buyers. However, potential buyers should be aware of the car’s age and potential for wear and tear on components like the suspension and braking system.
