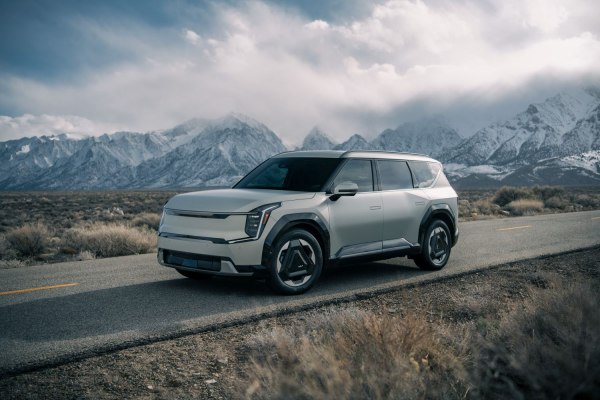

The Kia EV9 76.1 kWh (215 hp) Electric is a battery electric vehicle (BEV) SUV introduced by Kia in March 2023. Representing Kia’s entry into the full-size electric SUV segment, the EV9 is built on a dedicated electric vehicle platform, offering three-row seating for up to seven passengers. This particular variant, equipped with a 76.1 kWh battery pack and a single rear-mounted electric motor producing 215 horsepower, serves as the entry-level model in the EV9 lineup, positioned below the Long Range and GT-Line trims offering increased battery capacity and performance. It aims to provide a balance of range, practicality, and affordability within the growing electric SUV market.
Technical Specifications
| Brand | Kia |
| Model | EV9 |
| Generation | EV9 |
| Type (Engine) | 76.1 kWh (215 Hp) Electric |
| Start of production | March, 2023 |
| Powertrain Architecture | BEV (Electric Vehicle) |
| Body type | SUV |
| Seats | 7 |
| Doors | 5 |
| Fuel Type | Electricity |
| Acceleration 0 – 60 mph | 7.7 sec |
| Maximum speed | 190 km/h (118.06 mph) |
| 100 km/h – 0 | 39 m |
| Weight-to-power ratio | 10.7 kg/Hp, 93.1 Hp/tonne |
| Weight-to-torque ratio | 6.6 kg/Nm, 151.5 Nm/tonne |
| Gross battery capacity | 76.1 kWh |
| Battery voltage | 632 V |
| Battery technology | Lithium-ion (Li-Ion) |
| Battery weight | 463 kg (1020.74 lbs.) |
| Battery location | Below the floor |
| All-electric range (EPA) | 370.1 km (229.97 mi) |
| Average Energy consumption (EPA) | 23.8 kWh/100 km (38.3 kWh/100 mi, 88 MPGe, 4.2 km/kWh, 2.6 mi/kWh) |
| Electric motor power | 215 Hp @ 4400-9000 rpm |
| Electric motor Torque | 350 Nm (258.15 lb.-ft. @ 0-4200 rpm) |
| Electric motor location | Rear axle, Transverse |
| Electric motor type | Synchronous |
| System power | 215 Hp |
| System torque | 350 Nm (258.15 lb.-ft.) |
| Kerb Weight | 2310 kg (5092.68 lbs.) |
| Max. weight | 2910 kg (6415.45 lbs.) |
| Max load | 600 kg (1322.77 lbs.) |
| Trunk (boot) space – minimum | 572 l (20.2 cu. ft.) |
| Trunk (boot) space – maximum | 2313 l (81.68 cu. ft.) |
| Permitted trailer load with brakes (12%) | 907 kg (1999.59 lbs.) |
| Permitted trailer load without brakes | 454 kg (1000.9 lbs.) |
| Length | 5009 mm (197.2 in.) |
| Width | 1979 mm (77.91 in.) |
| Height | 1750 mm (68.9 in.) |
| Wheelbase | 3099 mm (122.01 in.) |
| Front track | 1702 mm (67.01 in.) |
| Rear (Back) track | 1715 mm (67.52 in.) |
| Front overhang | 871 mm (34.29 in.) |
| Rear overhang | 1039 mm (40.91 in.) |
| Ride height (ground clearance) | 178 mm (7.01 in.) |
| Minimum turning circle (turning diameter) | 12.4 m (40.68 ft.) |
| Approach angle | 20° |
| Departure angle | 22.8° |
| Drivetrain Architecture | One electric motor drives the rear wheels. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 1 gears, automatic transmission |
| Front suspension | Spring Strut, Independent type McPherson |
| Rear suspension | Spring Strut, Independent multi-link suspension |
| Front brakes | Ventilated discs, 360.68 mm |
| Rear brakes | Disc, 345.44 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Wheel rims size | 19 |
Powertrain & Engine Architecture
The Kia EV9 76.1 kWh utilizes a single permanent magnet synchronous motor (PMSM) located on the rear axle, delivering 215 horsepower and 350 Nm (258 lb-ft) of torque. This motor is powered by a 76.1 kWh lithium-ion battery pack, comprised of pouch-type cells. The battery operates at a high voltage of 632V, enabling faster charging times. The EV9 employs an 800V charging architecture, allowing for DC fast charging at up to 230 kW, capable of adding approximately 130 miles of range in just 15 minutes under ideal conditions. The single-speed automatic transmission is integral to the motor, providing seamless power delivery. The vehicle lacks a traditional multi-gear transmission as electric motors deliver peak torque across a broad RPM range.
Driving Characteristics
The 215 hp rear-wheel-drive EV9 offers adequate performance for everyday driving. Acceleration from 0 to 60 mph takes approximately 7.7 seconds. While not as brisk as the higher-powered Long Range or GT-Line models, the base EV9 provides sufficient power for merging onto highways and overtaking maneuvers. The single-speed transmission delivers smooth, linear acceleration. The rear-wheel-drive configuration contributes to a balanced feel, although it may exhibit some traction limitations in slippery conditions. The EV9’s substantial weight (2310 kg / 5092.68 lbs) is noticeable, particularly during spirited driving. The regenerative braking system offers adjustable levels of intensity, allowing drivers to customize the driving experience and maximize energy recovery.
Equipment & Trim Levels
The base EV9 76.1 kWh trim comes standard with a comprehensive suite of features, including a 12.3-inch touchscreen infotainment system, a 12.3-inch digital instrument cluster, synthetic leather upholstery, heated and ventilated front seats, a panoramic sunroof, and a suite of advanced driver-assistance systems (ADAS) such as forward collision avoidance assist, lane keeping assist, and adaptive cruise control. Optional extras include a premium audio system, second-row captain’s chairs, and a head-up display. The interior design emphasizes spaciousness and comfort, with a minimalist aesthetic and high-quality materials.
Chassis & Braking
The EV9 utilizes a McPherson strut front suspension and a multi-link rear suspension, providing a comfortable and controlled ride. The suspension is tuned to prioritize ride quality over sporty handling. The EV9 features ventilated discs on the front wheels and solid discs on the rear wheels. The anti-lock braking system (ABS) and electronic stability control (ESC) are standard. The steering is electrically assisted, providing light and precise steering feel. The EV9’s relatively high curb weight necessitates a robust braking system to ensure adequate stopping power.
Market Reception & Comparison
The Kia EV9 has been generally well-received by automotive critics, praised for its spacious interior, comfortable ride, and advanced technology. The base 76.1 kWh model has been noted for its competitive pricing and adequate range. Compared to other electric SUVs in its class, such as the Tesla Model Y and the Hyundai IONIQ 7 (when released), the EV9 offers a more traditional SUV design and a more luxurious interior. Fuel economy is rated at 88 MPGe combined, and 4.2 km/kWh. Some reviewers have criticized the base model’s acceleration and handling, noting that it lacks the performance of the higher-powered trims.
Legacy
The Kia EV9 represents a significant step forward for the brand, showcasing its commitment to electric mobility and innovative design. The 76.1 kWh variant, as the entry point to the EV9 lineup, is expected to appeal to a broad range of buyers seeking a practical and affordable electric SUV. The long-term reliability of the EV9’s powertrain remains to be seen, but Kia’s reputation for building durable and reliable vehicles suggests that it will prove to be a dependable choice for years to come. As the electric vehicle market continues to evolve, the EV9 is poised to become a key player in the full-size electric SUV segment.
