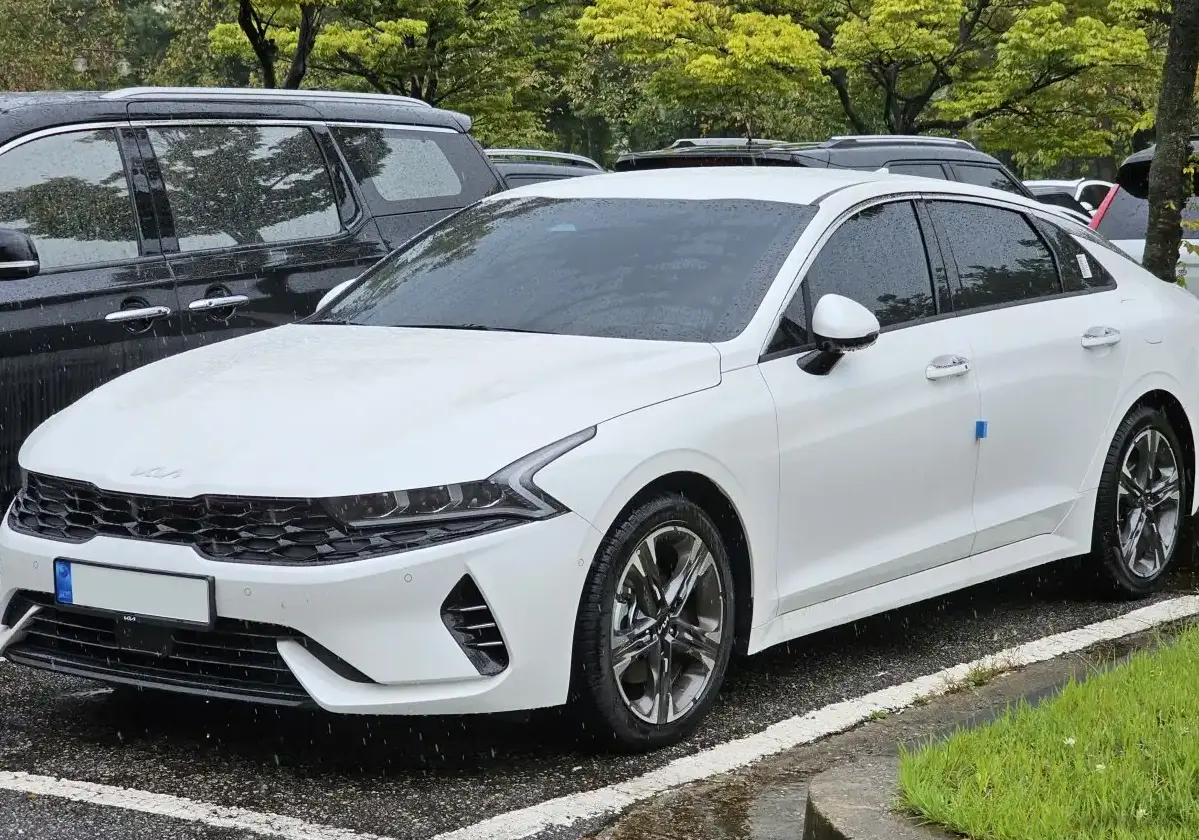

The Kia K5 1.6 T-GDI AWD Automatic, produced from 2020 through February 2024, represents a significant offering in Kia’s mid-size sedan lineup. Positioned as a technologically advanced and stylish alternative in the competitive segment, the K5 (previously known as the Optima) aimed to attract buyers seeking a blend of performance, fuel efficiency, and modern features. This particular variant, equipped with the 1.6-liter turbocharged gasoline direct injection (T-GDI) engine and an eight-speed automatic transmission coupled with all-wheel drive, occupied a mid-range position within the K5 portfolio, offering a step up in performance and capability from the base engine options.
Technical Specifications
| Brand | Kia |
| Model | K5 |
| Generation | K5 |
| Type (Engine) | 1.6 T-GDI (180 Hp) AWD Automatic |
| Start of production | 2020 |
| End of production | February, 2024 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan, Fastback |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 9 l/100 km (26.1 US mpg) |
| Fuel consumption (extra urban) | 6.9 l/100 km (34.1 US mpg) |
| Fuel consumption (combined) | 8.1 l/100 km (29 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Emission standard | ULEV 70 – LEV III |
| Weight-to-power ratio | 8.4 kg/Hp |
| Weight-to-torque ratio | 5.7 kg/Nm |
| Power | 180 Hp @ 5500 rpm |
| Power per litre | 112.6 Hp/l |
| Torque | 264 Nm @ 1500-4500 rpm (194.72 lb.-ft.) |
| Engine layout | Front, Transverse |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75.6 mm (2.98 in.) |
| Piston Stroke | 89 mm (3.5 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC, CVVD |
| Coolant Capacity | 4.53 l (4.79 US qt | 3.99 UK qt) |
| Kerb Weight | 1507-1572 kg (3322.37 – 3465.67 lbs.) |
| Max. weight | 2040 kg (4497.43 lbs.) |
| Max load | 468-533 kg (1031.76 – 1175.06 lbs.) |
| Trunk (boot) space | 453 l (16 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4905 mm (193.11 in.) |
| Width | 1859 mm (73.19 in.) |
| Height | 1445 mm (56.89 in.) |
| Wheelbase | 2850 mm (112.2 in.) |
| Front track | 1618-1633 mm (63.7 – 64.29 in.) |
| Rear track | 1626-1641 mm (64.02 – 64.61 in.) |
| Front overhang | 945 mm (37.2 in.) |
| Rear overhang | 1110 mm (43.7 in.) |
| Ride height (ground clearance) | 135 mm (5.31 in.) |
| Drag coefficient (Cd) | 0.27 |
| Minimum turning circle | 11 m (36.09 ft.) |
| Drivetrain Architecture | All wheel drive (4×4) |
| Number of gears | 8 |
| Gearbox type | Automatic transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs, 304.8 mm |
| Rear brakes | Disc, 284.48 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 205/65 R16 95H; 235/45 R18 94V |
| Wheel rims size | 6.5J x 16; 7.5J x 18 |
Powertrain & Engine Architecture
At the heart of the K5 1.6 T-GDI AWD lies the Smartstream G1.6 T-GDI engine, a four-cylinder, inline gasoline engine. This engine utilizes direct fuel injection and a single scroll turbocharger with an intercooler to deliver a balance of power and efficiency. Kia’s Continuously Variable Valve Duration (CVVD) technology is a key feature, optimizing valve timing based on driving conditions for improved fuel economy and reduced emissions. The engine produces 180 horsepower at 5,500 rpm and 195 lb-ft of torque between 1,500 and 4,500 rpm. The eight-speed automatic transmission, designed in-house by Hyundai/Kia, provides smooth and responsive shifting. The all-wheel-drive system employs a mechanically controlled multi-plate clutch to distribute power between the front and rear axles as needed, enhancing traction and stability, particularly in inclement weather.
Driving Characteristics
The K5 1.6 T-GDI AWD offers a noticeably more engaging driving experience than the base 2.5-liter naturally aspirated engine. The turbocharger provides readily available torque, making for confident acceleration in both city and highway driving. While not a sports sedan, the K5 delivers adequate performance for most drivers. The eight-speed automatic transmission is well-tuned, offering quick and seamless gear changes. The AWD system provides enhanced grip and stability, particularly on slippery surfaces. Compared to the front-wheel-drive version, the AWD model exhibits slightly heavier steering feel and a marginally reduced fuel economy. The gear ratios are optimized for a balance between acceleration and fuel efficiency, with a relatively tall final drive contributing to highway cruising comfort.
Equipment & Trim Levels
The K5 1.6 T-GDI AWD was typically offered in EX and GT-Line trim levels. Standard features generally included LED headlights, a 10.25-inch touchscreen infotainment system with Apple CarPlay and Android Auto compatibility, a suite of advanced driver-assistance systems (ADAS) such as forward collision avoidance assist, lane keeping assist, and adaptive cruise control, and automatic climate control. Higher trim levels added features like a panoramic sunroof, leather upholstery, a premium sound system, and ventilated front seats. Optional extras included a wireless charging pad, a head-up display, and premium paint colors.
Chassis & Braking
The K5 utilizes a front McPherson strut suspension and a rear multi-link suspension, providing a comfortable and controlled ride. The suspension tuning is geared towards everyday usability rather than outright sportiness. The AWD models typically feature slightly stiffer springs and dampers compared to the front-wheel-drive versions to compensate for the added weight. Braking duties are handled by ventilated discs up front and solid discs at the rear. The anti-lock braking system (ABS) and electronic stability control (ESC) are standard features, enhancing safety and control. Steering is rack-and-pinion with electric power assist.
Market Reception & Comparison
The Kia K5 1.6 T-GDI AWD was generally well-received by automotive critics. Reviewers praised its stylish design, spacious interior, and comprehensive suite of technology features. The turbocharged engine and all-wheel-drive system were also highlighted as strengths. Compared to competitors like the Honda Accord, Toyota Camry, and Mazda 6, the K5 offered a more distinctive design and a more generous level of standard equipment. Fuel economy was competitive, averaging around 29 mpg in combined driving. Reliability ratings were generally average for the segment, with some reports of minor issues with the infotainment system.
Legacy
The Kia K5 1.6 T-GDI AWD represents a step forward in Kia’s efforts to establish itself as a mainstream automotive brand. The Smartstream engine and eight-speed automatic transmission are proving to be relatively reliable powertrains, although long-term durability data is still emerging. On the used car market, these models hold their value reasonably well, particularly those in excellent condition with low mileage. The combination of style, technology, and all-wheel-drive capability makes the K5 1.6 T-GDI AWD a compelling option for buyers seeking a modern and well-equipped mid-size sedan.
