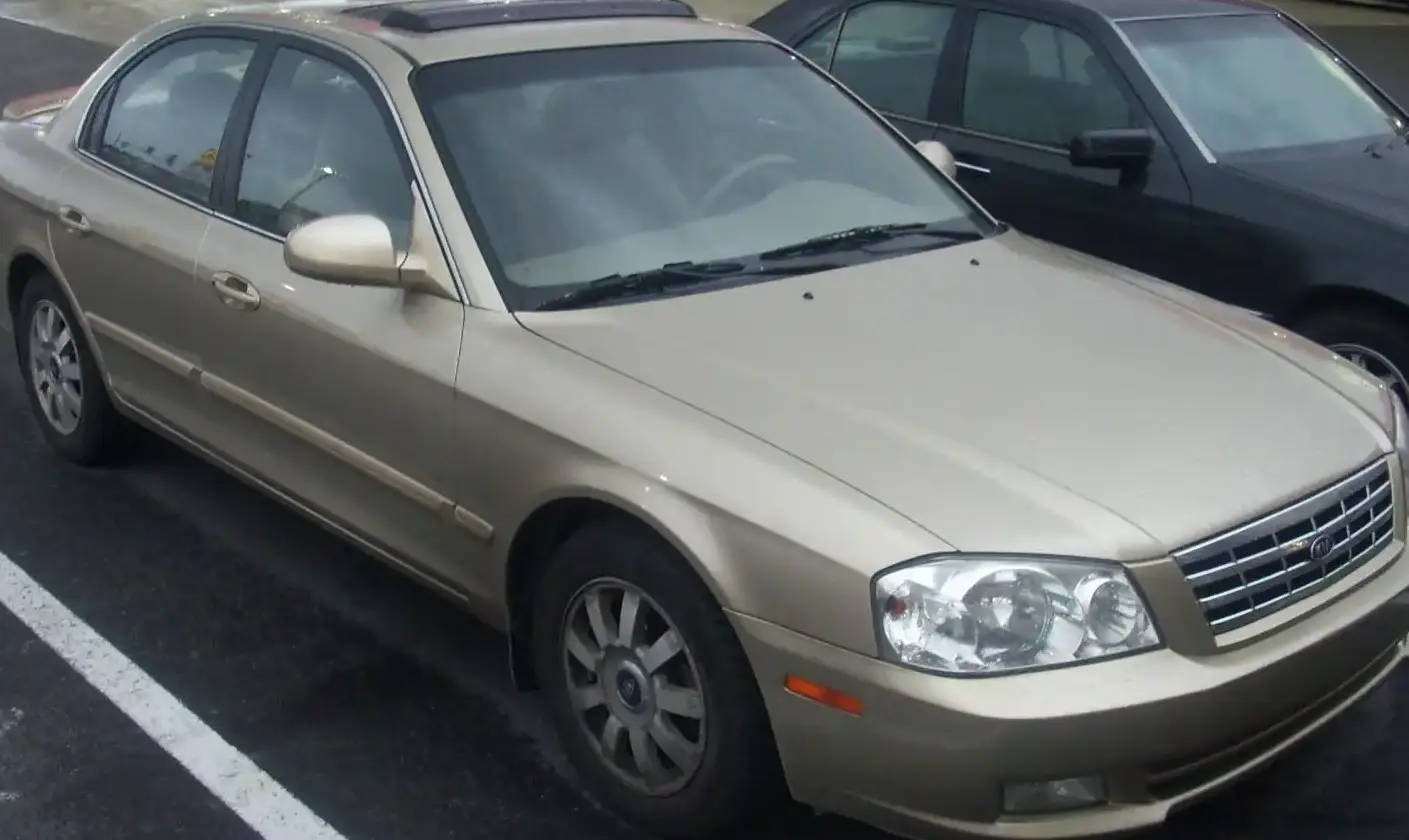

The Kia Magentis, known as the Kia Optima in some markets, represented a significant step forward for the Korean automaker in the mid-size sedan segment. Introduced in 2000 and continuing through 2005 for the first generation (Magentis I), it aimed to provide a compelling alternative to established Japanese and European competitors. The 2.5-liter V6 engine paired with an automatic transmission was a key offering within the Magentis lineup, positioned as a comfortable and well-equipped option for buyers prioritizing refinement over outright sportiness. This variant aimed to bridge the gap between the base 2.0-liter four-cylinder models and the potential for future, more performance-oriented trims.
Technical Specifications
| Brand | Kia |
| Model | Magentis |
| Generation | Magentis I |
| Type (Engine) | 2.5 V6 (169 Hp) Automatic |
| Start of production | 2000 year |
| End of production | 2005 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (economy) – urban | 15.2 l/100 km (15.5 US mpg, 18.6 UK mpg, 6.6 km/l) |
| Fuel consumption (economy) – extra urban | 7.6 l/100 km (30.9 US mpg, 37.2 UK mpg, 13.2 km/l) |
| Fuel consumption (economy) – combined | 10.4 l/100 km (22.6 US mpg, 27.2 UK mpg, 9.6 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 8.8 sec |
| Acceleration 0 – 62 mph | 8.8 sec |
| Acceleration 0 – 60 mph | 8.4 sec |
| Maximum speed | 209 km/h (129.87 mph) |
| Emission standard | Euro 3 |
| Weight-to-power ratio | 8.9 kg/Hp, 112.7 Hp/tonne |
| Weight-to-torque ratio | 6.5 kg/Nm, 153.3 Nm/tonne |
| Power | 169 Hp @ 6000 rpm |
| Power per litre | 67.8 Hp/l |
| Torque | 230 Nm @ 4000 rpm (169.64 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Delta / G6BV |
| Engine displacement | 2493 cm3 (152.13 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 75 mm (2.95 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Coolant | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Kerb Weight | 1500 kg (3306.93 lbs.) |
| Max. weight | 2000 kg (4409.25 lbs.) |
| Max load | 500 kg (1102.31 lbs.) |
| Trunk (boot) space – minimum | 479 l (16.92 cu. ft.) |
| Trunk (boot) space – maximum | 810 l (28.6 cu. ft.) |
| Fuel tank capacity | 65 l (17.17 US gal | 14.3 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 1700 kg (3747.86 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Length | 4730 mm (186.22 in.) |
| Width | 1820 mm (71.65 in.) |
| Height | 1410 mm (55.51 in.) |
| Wheelbase | 2700 mm (106.3 in.) |
| Front track | 1540 mm (60.63 in.) |
| Rear (Back) track | 1530 mm (60.24 in.) |
| Minimum turning circle (turning diameter) | 11.6 m (38.06 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/60 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of this Magentis variant is the Kia Delta 2.5-liter V6 engine, internally designated as the G6BV. This engine is a naturally aspirated, 60-degree V6 featuring a cast iron block and aluminum cylinder heads. It utilizes a multi-port fuel injection system, delivering fuel directly into the intake ports just before the intake valves. The engine employs a double overhead camshaft (DOHC) valvetrain, with four valves per cylinder, contributing to improved breathing and power output. The 2.5L V6 produces 169 horsepower at 6000 rpm and 230 Nm (169.64 lb-ft) of torque at 4000 rpm. The engine’s design prioritized smooth operation and reliability over peak performance. The engine is transversely mounted in the front of the vehicle. Paired with the engine is a four-speed automatic transmission. While not the most modern transmission by today’s standards, it was designed for smooth shifts and ease of use, aligning with the Magentis’s comfort-oriented character.
Driving Characteristics
The 2.5 V6 automatic Magentis offered a comfortable and refined driving experience. Acceleration from 0-60 mph took approximately 8.4 seconds, making it adequately powered for everyday driving and highway merging. However, it wasn’t designed for spirited performance. The four-speed automatic transmission, while smooth, lacked the responsiveness of more modern gearboxes or manual transmissions. Gear ratios were tuned for fuel efficiency and comfortable cruising rather than aggressive acceleration. Compared to the base 2.0-liter four-cylinder models, the V6 provided noticeably more power and torque, resulting in a more relaxed driving experience, especially when fully loaded or climbing hills. It didn’t offer the same level of engagement as a manual transmission, but it catered to drivers who preferred convenience and ease of use.
Equipment & Trim Levels
The 2.5 V6 automatic trim typically included features such as air conditioning, power windows and locks, a CD player, and cloth upholstery. Higher trim levels added options like a sunroof, leather seats, upgraded audio systems, and alloy wheels. Safety features included dual front airbags and ABS (Anti-lock Braking System). The Magentis aimed to offer a good value proposition, providing a reasonable level of equipment for its price point. The interior design was functional and straightforward, prioritizing usability over luxury.
Chassis & Braking
The Magentis I utilized a front-wheel-drive layout with a double wishbone suspension in the front and an independent multi-link suspension in the rear. This suspension setup aimed to provide a comfortable ride and decent handling characteristics. The front brakes were ventilated discs, while the rear brakes were solid discs. The steering was a rack-and-pinion system with hydraulic power assistance. The suspension tuning was geared towards comfort, resulting in a relatively soft ride quality. Stabilizer bars were included to reduce body roll during cornering, but the Magentis wasn’t intended to be a sporty handling vehicle.
Market Reception & Comparison
The Kia Magentis 2.5 V6 automatic received mixed reviews. Critics praised its spacious interior, comfortable ride, and generous standard equipment. However, some criticized its somewhat bland styling and lack of sporty driving dynamics. Fuel economy was also a point of concern, with combined fuel consumption around 22.6 US mpg. Compared to competitors like the Honda Accord and Toyota Camry, the Magentis offered a lower price point but lacked the same level of refinement and brand recognition. The V6 engine provided a noticeable performance advantage over the base four-cylinder models, but it came at the cost of increased fuel consumption.
Legacy
The Kia Magentis I 2.5 V6 automatic, while not a groundbreaking vehicle, played a crucial role in establishing Kia as a viable competitor in the mid-size sedan segment. The Delta V6 engine proved to be relatively reliable, although regular maintenance is essential. In the used car market, these Magentis models are often found with relatively high mileage but can still offer affordable transportation. Parts availability is generally good, and the relatively simple mechanical design makes them accessible for DIY repairs. While not a collector’s item, the Magentis I 2.5 V6 represents a significant milestone in Kia’s history, demonstrating the brand’s growing ambition and commitment to quality.
