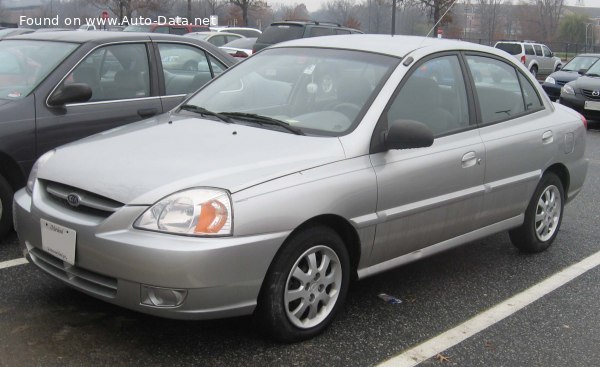

The 2002-2005 Kia Rio I Sedan (DC) 1.3i represented a significant step for Kia in establishing a foothold in the global compact car segment. Following the initial Rio launch, the facelift brought subtle styling updates and refinements to the interior. This particular variant, equipped with the 1.3-liter engine and a five-speed manual transmission, was primarily targeted at buyers seeking an economical and reliable vehicle for daily commuting. It was a common sight in Europe, and increasingly in other markets as Kia expanded its global presence. The Rio aimed to undercut established competitors like the Toyota Yaris and Volkswagen Polo on price, while offering a surprisingly spacious interior for its class.
Technical Specifications
| Brand | Kia |
| Model | Rio |
| Generation | Rio I Sedan (DC, facelift 2002) |
| Type (Engine) | 1.3i (82 Hp) |
| Start of production | 2002 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 8.8 l/100 km (26.7 US mpg) |
| Fuel consumption (extra urban) | 5.4 l/100 km (43.6 US mpg) |
| Fuel consumption (combined) | 7.1 l/100 km (33.1 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 14.3 sec |
| Acceleration 0 – 62 mph | 14.3 sec |
| Acceleration 0 – 60 mph | 13.6 sec |
| Maximum speed | 172 km/h (106.88 mph) |
| Weight-to-power ratio | 11.8 kg/Hp |
| Weight-to-torque ratio | 8.3 kg/Nm |
| Power | 82 Hp @ 5500 rpm |
| Torque | 116 Nm @ 3000 rpm (85.56 lb.-ft. @ 3000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | A3E |
| Engine displacement | 1343 cm3 (81.95 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75.5 mm (2.97 in.) |
| Piston Stroke | 75 mm (2.95 in.) |
| Compression ratio | 9.4:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.4 l (3.59 US qt | 2.99 UK qt) |
| Coolant capacity | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 965 kg (2127.46 lbs.) |
| Max. weight | 1470 kg (3240.8 lbs.) |
| Max load | 505 kg (1113.33 lbs.) |
| Trunk (boot) space – minimum | 326 l (11.51 cu. ft.) |
| Fuel tank capacity | 45 l (11.89 US gal | 9.9 UK gal) |
| Length | 4240 mm (166.93 in.) |
| Width | 1680 mm (66.14 in.) |
| Height | 1440 mm (56.69 in.) |
| Wheelbase | 2410 mm (94.88 in.) |
| Front track | 1430 mm (56.3 in.) |
| Rear (Back) track | 1435 mm (56.5 in.) |
| Minimum turning circle | 9.5 m (31.17 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/65 R14 |
Powertrain & Engine Architecture
The heart of the Rio 1.3i was the A3E engine, a 1343cc inline-four cylinder gasoline engine. This engine featured a single overhead camshaft (OHC) valvetrain with two valves per cylinder. Fuel delivery was handled by a multi-port fuel injection system, providing a balance between efficiency and performance. The A3E engine was known for its simplicity and durability, though it wasn’t a powerhouse. The engine’s 9.4:1 compression ratio was a compromise between fuel economy and power output. The five-speed manual transmission was the standard offering for this trim, providing adequate gear ratios for everyday driving. While an automatic transmission was available in some markets, the 1.3L engine was often considered underpowered when paired with it.
Driving Characteristics
The Rio 1.3i offered modest performance. With 82 horsepower and 116 Nm (85.56 lb-ft) of torque, acceleration was leisurely, taking around 14.3 seconds to reach 62 mph. The focus was clearly on fuel efficiency rather than outright speed. The five-speed manual transmission allowed drivers to keep the engine in its optimal power band, but frequent downshifting was often necessary for overtaking or climbing hills. The steering was light and easy, making it well-suited for urban driving. The suspension, while basic, provided a reasonably comfortable ride, absorbing most road imperfections without excessive body roll. Compared to higher-trim Rio models with larger engines, the 1.3i felt noticeably slower and less refined.
Equipment & Trim Levels
The 1.3i Rio typically came with a fairly basic level of equipment. Standard features generally included power steering, central locking, and an AM/FM radio. Air conditioning was often an optional extra, as were power windows and alloy wheels. Interior upholstery was typically cloth, and the dashboard featured a simple, functional design. Higher trim levels added features like a CD player, upgraded upholstery, and body-colored bumpers. The overall interior ambiance was practical and durable, prioritizing functionality over luxury.
Chassis & Braking
The Rio 1.3i utilized a front-wheel-drive layout with a MacPherson strut front suspension and a coil spring rear suspension. The front brakes were discs, providing adequate stopping power, while the rear brakes were drums, a cost-saving measure common in this class of vehicle. ABS (Anti-lock Braking System) was often included as standard equipment, enhancing safety. The chassis was designed for comfort and affordability, rather than sporty handling. The relatively lightweight construction of the vehicle helped to offset the modest engine output.
Market Reception & Comparison
The Kia Rio 1.3i was generally well-received as an affordable and reliable option in the subcompact segment. Critics praised its spacious interior and competitive pricing, but noted its lack of refinement and modest performance. Compared to the more powerful Rio variants (such as the 1.5L or 1.6L models), the 1.3i offered significantly lower running costs but at the expense of driving enjoyment. Against competitors like the Toyota Yaris and Volkswagen Polo, the Rio offered a similar level of practicality but often at a lower price point. Fuel economy was a strong point, making it an attractive option for budget-conscious drivers.
Legacy
The Kia Rio I Sedan (DC) 1.3i, while not a performance icon, established Kia as a viable contender in the global automotive market. The A3E engine proved to be a durable and reliable unit, and many examples are still on the road today. In the used car market, these Rios are often sought after for their affordability and low running costs. While maintenance is generally straightforward, age-related issues such as corrosion and wear on suspension components are common. The 1.3i variant remains a popular choice for first-time car buyers or those seeking a simple, economical mode of transportation.
