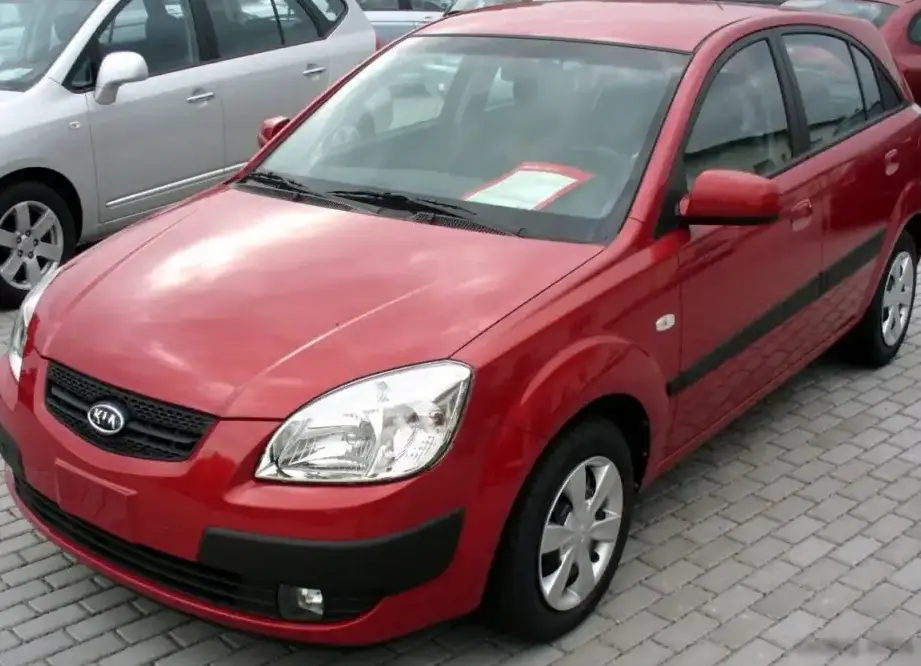

The Kia Rio II Hatchback (JB) 1.4 i 16V 97 hp Automatic, produced between 2005 and 2009, represented an entry-level offering within the second generation Rio lineup. Positioned as a practical and affordable subcompact, this variant aimed to provide comfortable transportation with the convenience of an automatic transmission. It was a key model for Kia as they continued to expand their presence in the European and global markets, offering a budget-friendly alternative to established competitors. The JB series Rio was a significant step forward for Kia in terms of design and build quality, and this particular engine/transmission combination was designed to appeal to buyers prioritizing ease of use over outright performance.
Technical Specifications
| Brand | Kia |
| Model | Rio |
| Generation | Rio II Hatchback (JB) |
| Type (Engine) | 1.4 i 16V (97 Hp) Automatic |
| Start of production | 2005 |
| End of production | 2009 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 9.9 l/100 km (23.8 US mpg) |
| Fuel consumption (extra urban) | 5.6 l/100 km (42 US mpg) |
| Fuel consumption (combined) | 7.2 l/100 km (32.7 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 14.5 sec |
| Acceleration 0 – 62 mph | 14.5 sec |
| Acceleration 0 – 60 mph | 13.8 sec |
| Maximum speed | 168 km/h (104.39 mph) |
| Power | 97 Hp @ 6000 rpm |
| Torque | 125 Nm @ 4700 rpm (92.2 lb.-ft. @ 4700 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Alpha II / G4EE |
| Engine displacement | 1399 cm3 (85.37 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 75.5 mm (2.97 in.) |
| Piston Stroke | 78.1 mm (3.07 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.3 l (3.49 US qt | 2.9 UK qt) |
| Coolant capacity | 5.6 l (5.92 US qt | 4.93 UK qt) |
| Fuel tank capacity | 45 l (11.89 US gal | 9.9 UK gal) |
| Length | 3990 mm (157.09 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1470 mm (57.87 in.) |
| Wheelbase | 2500 mm (98.43 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear track | 1460 mm (57.48 in.) |
| Minimum turning circle | 9.8 m (32.15 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 4 |
| Gearbox type | Automatic transmission |
| Front suspension | Spring Strut |
| Rear suspension | Torsion |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 175/70 R14 |
| Wheel rims size | 5J x 14 |
Powertrain & Engine Architecture
The heart of this Rio variant is the Kia Alpha II engine, specifically the G4EE code. This 1.4-liter inline-four engine utilizes a multi-point fuel injection system, delivering fuel directly to each intake port. The engine features a double overhead camshaft (DOHC) valvetrain, operating 16 valves (four per cylinder) to optimize airflow and combustion efficiency. While not a particularly powerful engine, it was designed for reliability and fuel economy. The four-speed automatic transmission was a common unit for the time, offering smooth, if not particularly quick, gear changes. It’s a conventional hydraulic automatic, lacking the more advanced features found in modern transmissions. The engine’s relatively simple design contributed to its longevity, but also limited its performance potential.
Driving Characteristics
The 1.4L automatic Rio offered a comfortable, but uninspiring, driving experience. Acceleration was modest, with a 0-60 mph time around 13.8 seconds. The automatic transmission, while convenient, tended to prioritize fuel efficiency over responsiveness. Gear ratios were spaced to maximize economy, resulting in a noticeable delay when requesting sudden bursts of power. Compared to the available manual transmission or the slightly more powerful 1.6L engine options, this variant felt noticeably slower. However, for city driving and everyday commuting, the 97 hp engine provided adequate power, and the automatic transmission made it easy to navigate traffic. The focus was clearly on providing a hassle-free driving experience rather than sporty performance.
Equipment & Trim Levels
The 1.4 i 16V Automatic typically came with a base level of equipment, reflecting its position as an entry-level model. Standard features generally included power steering, central locking, electric front windows, and an AM/FM radio. Air conditioning was often an optional extra, as were alloy wheels and a more advanced audio system. Interior upholstery was typically cloth, with a relatively simple dashboard layout. Higher trim levels, available with the 1.6L engine, offered features like upgraded upholstery, a trip computer, and additional safety equipment. The overall interior design was functional and durable, prioritizing practicality over luxury.
Chassis & Braking
The Rio II Hatchback utilized a front-wheel-drive layout with a relatively simple suspension setup. The front suspension consisted of MacPherson struts, while the rear employed a torsion beam axle. This configuration provided a comfortable ride, but didn’t offer particularly sharp handling. Braking duties were handled by ventilated discs at the front and solid discs at the rear. Anti-lock Braking System (ABS) was standard, enhancing safety during emergency braking situations. The chassis was designed to be lightweight, contributing to the car’s fuel efficiency, but also limiting its overall stability at higher speeds.
Market Reception & Comparison
The Kia Rio II Hatchback 1.4 i 16V Automatic was generally well-received as an affordable and practical subcompact. Critics praised its value for money and its comfortable ride. However, the engine’s lack of power and the automatic transmission’s sluggishness were common criticisms. Compared to rivals like the Ford Fiesta or Volkswagen Polo, the Rio offered a more generous standard equipment list for the price, but lacked the refinement and driving dynamics of those European competitors. Fuel economy was competitive, and reliability proved to be generally good, making it a popular choice for budget-conscious buyers.
Legacy
The Kia Rio II 1.4 i 16V Automatic has proven to be a relatively reliable vehicle in the used car market. The Alpha II engine is known for its durability, and the automatic transmission, while not the most sophisticated, has generally held up well over time. Common maintenance issues include wear and tear on suspension components and occasional problems with the fuel injection system. However, parts are readily available and relatively inexpensive. Today, these Rios represent an affordable and practical option for those seeking a basic, reliable subcompact car. While not a performance icon, it served as a crucial stepping stone for Kia, helping to establish the brand as a viable alternative in the competitive automotive landscape.
