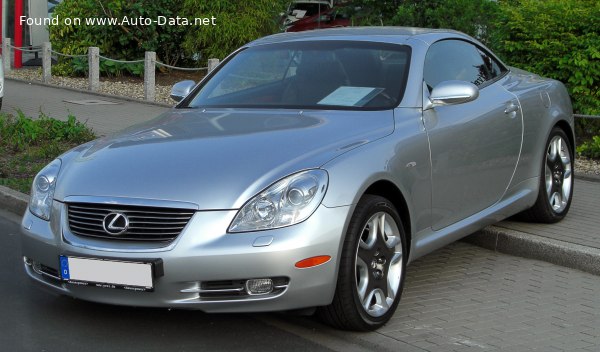

The Lexus SC 430, specifically the 4.3-liter V8 model with the electronically controlled transmission (ECT) introduced with the 2005 facelift (Z40 chassis), represents the pinnacle of Lexus’ grand touring coupe/convertible offerings of the early 2000s. Produced from 2005 to 2010, this iteration built upon the success of the original SC 430, refining its styling, and maintaining its focus on luxurious comfort and robust performance. The SC 430 aimed to compete with established grand tourers like the Mercedes-Benz CLK and BMW 6 Series, offering a unique blend of Japanese reliability and American-market sensibilities. This variant, with its 286 horsepower V8 and automatic transmission, was positioned as the premium offering within the SC 430 lineup, representing the highest level of performance and features available.
Technical Specifications
| Brand | Lexus |
| Model | SC |
| Generation | SC II (Z40, facelift 2005) |
| Type (Engine) | 430 V8 (286 Hp) ECT |
| Start of production | 2005 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe – Cabriolet |
| Seats | 4 |
| Doors | 2 |
| Fuel consumption (economy) – urban (NEDC) | 16.1-16.3 l/100 km (14.6 – 14.4 US mpg, 17.5 – 17.3 UK mpg, 6.2 – 6.1 km/l) |
| Fuel consumption (economy) – extra urban (NEDC) | 8.5-8.6 l/100 km (27.7 – 27.4 US mpg, 33.2 – 32.8 UK mpg, 11.8 – 11.6 km/l) |
| Fuel consumption (economy) – combined (NEDC) | 11.2-11.4 l/100 km (21 – 20.6 US mpg, 25.2 – 24.8 UK mpg, 8.9 – 8.8 km/l) |
| CO2 emissions (NEDC) | 264-269 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 6.2 sec |
| Acceleration 0 – 62 mph | 6.2 sec |
| Acceleration 0 – 60 mph | 5.9 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 6 kg/Hp, 165.8 Hp/tonne |
| Weight-to-torque ratio | 4.1 kg/Nm, 242.9 Nm/tonne |
| Power | 286 Hp @ 5600 rpm |
| Torque | 419 Nm @ 3500 rpm (309.04 lb.-ft. @ 3500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 3UZ-FE |
| Engine displacement | 4293 cm3 (261.97 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 91 mm (3.58 in.) |
| Piston Stroke | 82.5 mm (3.25 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine oil capacity | 5.2 l (5.49 US qt | 4.58 UK qt) |
| Coolant | 9.9 l (10.46 US qt | 8.71 UK qt) |
| Kerb Weight | 1725-1790 kg (3802.97 – 3946.27 lbs.) |
| Max. weight | 2110 kg (4651.75 lbs.) |
| Max load | 320-385 kg (705.48 – 848.78 lbs.) |
| Trunk (boot) space – minimum | 135 l (4.77 cu. ft.) |
| Trunk (boot) space – maximum | 368 l (13 cu. ft.) |
| Fuel tank capacity | 75 l (19.81 US gal | 16.5 UK gal) |
| Length | 4535 mm (178.54 in.) |
| Width | 1825 mm (71.85 in.) |
| Height | 1370 mm (53.94 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Front track | 1550 mm (61.02 in.) |
| Rear (Back) track | 1535 mm (60.43 in.) |
| Drag coefficient (Cd) | 0.29 |
| Minimum turning circle | 11.4 m (37.4 ft.) |
| Drivetrain Architecture | Rear wheel drive |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission ECT |
| Front suspension | Coil spring, Double wishbone, Transverse stabilizer |
| Rear suspension | Double wishbone, Transverse stabilizer, Coil spring |
| Front brakes | Ventilated discs, 296 mm |
| Rear brakes | Disc, 307 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 245/40 ZR18 |
| Wheel rims size | 8J x 18 |
INTRODUCTION
The Lexus SC 430, particularly the 2005-2010 facelift model equipped with the 4.3-liter 3UZ-FE V8 engine and ECT automatic transmission, represents a refined iteration of Lexus’ luxury coupe/convertible. Building on the initial SC 430 launch in 1991, the Z40 facelift brought subtle but significant styling updates, including a revised front fascia, taillights, and interior trim. This variant was exclusively offered with a rear-wheel-drive configuration and aimed to deliver a smooth, comfortable, and powerful grand touring experience. The SC 430 occupied the top spot in the SC lineup, offering a more potent alternative to the earlier inline-six powered models.
Powertrain & Engine Architecture
The heart of the SC 430 is the 3UZ-FE 4.3-liter (4293 cc) naturally aspirated V8 engine. This engine, a member of Lexus’ highly regarded ‘UZ’ family, is known for its durability and smooth power delivery. It features a 60-degree V-angle, dual overhead camshafts (DOHC) with four valves per cylinder, and Lexus’ Variable Valve Timing-intelligent (VVT-i) system. The VVT-i system optimizes valve timing based on engine speed and load, improving both performance and fuel efficiency. Fuel delivery is handled by a multi-port fuel injection system. The engine produces 286 horsepower at 5600 rpm and 309 lb-ft of torque at 3500 rpm. The engine is longitudinally mounted, driving the rear wheels. Paired with the 3UZ-FE is a six-speed electronically controlled automatic transmission (ECT). This transmission features adaptive shift logic, adjusting shift points based on driving style and conditions. It offers both fully automatic operation and a manual shift mode for greater driver control.
Driving Characteristics
The SC 430 4.3L V8 Automatic delivers a distinctly grand touring experience. While not a sports car, the combination of the V8 engine and six-speed automatic provides ample power for confident highway cruising and brisk acceleration. The 0-60 mph sprint takes approximately 5.9 seconds, and the car has a governed top speed of 155 mph. The automatic transmission is generally smooth and responsive, although it can sometimes feel slightly hesitant during quick downshifts. The gear ratios are tuned for comfortable cruising, with a focus on maximizing torque at lower and mid-range engine speeds. Compared to a manual transmission-equipped SC 430 (which was not offered in the US market), the automatic prioritizes ease of use and refinement over outright performance. The automatic also differs significantly from the earlier SC300/400 models, offering a more modern and sophisticated driving experience.
Equipment & Trim Levels
The SC 430 4.3L V8 Automatic came generously equipped as standard. Typical features included leather upholstery, power-adjustable and heated front seats, a premium sound system (often Mark Levinson), automatic climate control, and a power-retractable hardtop. Optional extras included navigation system, wood trim, and upgraded interior color schemes. The interior design emphasized luxury and comfort, with a focus on high-quality materials and a driver-centric layout. The facelifted models (2005-2010) featured subtle interior refinements, such as updated trim materials and improved switchgear.
Chassis & Braking
The SC 430 utilizes a robust chassis designed for both comfort and handling. The front suspension features a coil spring, double wishbone setup with a transverse stabilizer bar, while the rear suspension employs a double wishbone configuration with coil springs and a transverse stabilizer bar. This setup provides a comfortable ride while minimizing body roll during cornering. Braking duties are handled by ventilated discs at the front and solid discs at the rear, equipped with an Anti-lock Braking System (ABS). The steering is a rack-and-pinion system with hydraulic power assistance, providing precise and responsive steering feel.
Market Reception & Comparison
The Lexus SC 430 was generally well-received by automotive critics, praised for its luxurious interior, smooth ride, and reliable V8 engine. However, some critics noted its relatively conservative styling and lack of a manual transmission option. Compared to other trims in the SC lineup (primarily the earlier SC300 and SC400), the 4.3L V8 Automatic offered significantly more power and a more refined driving experience. Fuel economy, however, was considerably lower than the inline-six models. The SC 430’s fuel consumption of around 20-21 mpg combined was typical for a V8-powered grand tourer of its era, but it was a noticeable step down from the more economical SC300.
Legacy
The Lexus SC 430, particularly the 4.3L V8 Automatic variant, has developed a loyal following among enthusiasts. The 3UZ-FE engine is renowned for its durability and longevity, and well-maintained examples are known to reach high mileage with minimal issues. The car’s blend of luxury, performance, and reliability has made it a desirable used car. While not a high-volume seller compared to some other Lexus models, the SC 430 remains a respected and appreciated grand tourer, representing a unique chapter in Lexus’ history. Today, the SC 430 is often sought after by collectors and enthusiasts who appreciate its classic styling and robust engineering.
