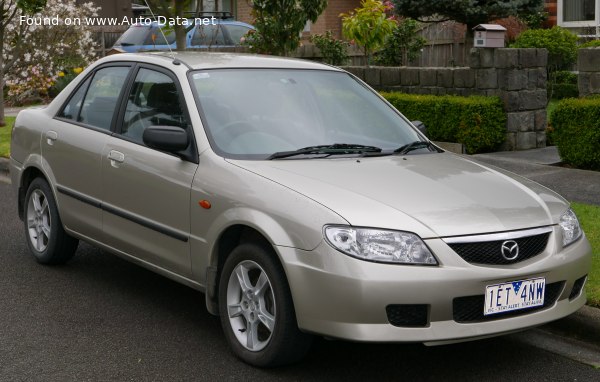

The Mazda 323 S VI (BJ) 1.6 i 16V, produced between 2000 and 2003, represented a key iteration of Mazda’s compact offering in the European and Asian markets. Positioned as a mainstream, affordable sedan, this variant occupied the middle ground of the 323 S VI lineup, offering a balance between economy and usability. It was built on the BJ platform, the sixth generation of the 323 series, and aimed to provide a comfortable and reliable transportation solution for families and commuters. This specific 1.6-liter, 95 horsepower configuration, paired with a four-speed automatic transmission, was designed to appeal to buyers prioritizing ease of driving over outright performance.
Technical Specifications
| Brand | Mazda |
| Model | 323 |
| Generation | 323 S VI (BJ) |
| Type (Engine) | 1.6 i 16V (95 Hp) |
| Start of production | 2000 year |
| End of production | 2003 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 11.3 l/100 km (20.8 US mpg, 25 UK mpg, 8.8 km/l) |
| Fuel consumption (extra urban) | 7.1 l/100 km (33.1 US mpg, 39.8 UK mpg, 14.1 km/l) |
| Fuel consumption (combined) | 8.6 l/100 km (27.4 US mpg, 32.8 UK mpg, 11.6 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 14.2 sec |
| Acceleration 0 – 62 mph | 14.2 sec |
| Acceleration 0 – 60 mph | 13.5 sec |
| Maximum speed | 170 km/h (105.63 mph) |
| Weight-to-power ratio | 11.7 kg/Hp, 85.2 Hp/tonne |
| Weight-to-torque ratio | 7.8 kg/Nm, 128.3 Nm/tonne |
| Power | 95 Hp @ 5500 rpm |
| Power per litre | 59.4 Hp/l |
| Torque | 143 Nm @ 3700 rpm (105.47 lb.-ft. @ 3700 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | ZM |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 78 mm (3.07 in.) |
| Piston Stroke | 83.6 mm (3.29 in.) |
| Compression ratio | 9.7:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 2.9 l (3.06 US qt | 2.55 UK qt) |
| Coolant capacity | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 1115 kg (2458.15 lbs.) |
| Max. weight | 1625 kg (3582.51 lbs.) |
| Max load | 510 kg (1124.36 lbs.) |
| Trunk (boot) space – minimum | 415 l (14.66 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4390 mm (172.83 in.) |
| Width | 1705 mm (67.13 in.) |
| Height | 1410 mm (55.51 in.) |
| Wheelbase | 2610 mm (102.76 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear (Back) track | 1470 mm (57.87 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R14 |
| Wheel rims size | 14 |
Powertrain & Engine Architecture
The heart of the 323 S VI 1.6 i 16V was the ZM engine, a 1.6-liter inline-four cylinder gasoline engine. This engine utilized a multi-port fuel injection system, delivering fuel directly into the intake ports, optimizing combustion efficiency. The engine featured a double overhead camshaft (DOHC) valvetrain, operating 16 valves (four per cylinder) to enhance volumetric efficiency and improve power output. The 9.7:1 compression ratio was a typical value for naturally aspirated engines of this era, balancing performance and fuel economy. Paired with this engine was a four-speed automatic transmission. This transmission, while providing convenient shiftless driving, was a relatively conventional design, lacking the advanced features found in later automatic gearboxes. It was chosen for its simplicity and cost-effectiveness, contributing to the overall affordability of the vehicle.
Driving Characteristics
The 1.6-liter engine, producing 95 horsepower, delivered adequate, but not exhilarating, performance. Acceleration from 0 to 60 mph took around 13.5 seconds, and top speed was limited to 170 km/h (105.63 mph). The automatic transmission, while smooth in operation, did detract from the engine’s responsiveness. Gear ratios were optimized for fuel efficiency rather than outright acceleration. Compared to the more powerful 1.8-liter or the diesel variants, the 1.6 i 16V automatic felt noticeably slower, particularly when overtaking or climbing hills. However, its smooth power delivery and ease of use made it a comfortable daily driver. The steering was light and precise, making maneuvering in urban environments effortless.
Equipment & Trim Levels
The 323 S VI 1.6 i 16V typically came equipped with a reasonable level of standard features. These included power steering, central locking, electric front windows, and an AM/FM radio. Interior upholstery was typically cloth, with a relatively simple dashboard layout. Optional extras included air conditioning, alloy wheels, and a CD player. The trim level for this variant generally fell into the mid-range, offering a step up from the base models but lacking the premium features found in higher-spec versions.
Chassis & Braking
The 323 S VI utilized a conventional chassis design, with coil springs and a stabilizer bar at both the front and rear. The front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were solid discs. ABS (Anti-lock Braking System) was standard, enhancing safety by preventing wheel lockup during hard braking. The suspension was tuned for comfort, providing a relatively smooth ride over uneven surfaces. The relatively light curb weight of 1115 kg (2458.15 lbs) helped to mitigate the effects of the modest engine output.
Market Reception & Comparison
The Mazda 323 S VI 1.6 i 16V automatic was generally well-received as a practical and affordable family car. Critics praised its comfortable ride, ease of driving, and reasonable fuel economy. However, some reviewers noted its lack of performance compared to other engines in the lineup. The 1.8-liter version offered significantly more power, while the diesel models provided superior fuel efficiency. In terms of reliability, the ZM engine proved to be generally robust, although regular maintenance was essential. Fuel economy figures of around 27.4 US mpg combined were competitive for its class.
Legacy
The Mazda 323 S VI 1.6 i 16V, while not a particularly groundbreaking vehicle, remains a popular choice in the used car market, particularly for those seeking an affordable and reliable compact sedan. The ZM engine is known for its durability, and parts availability is generally good. However, potential buyers should be aware of the age-related issues common to vehicles of this era, such as corrosion and wear and tear on suspension components. The automatic transmission, while reliable, may require servicing or rebuilding after many years of use. Overall, the 323 S VI 1.6 i 16V represents a solid and dependable choice for budget-conscious buyers.
