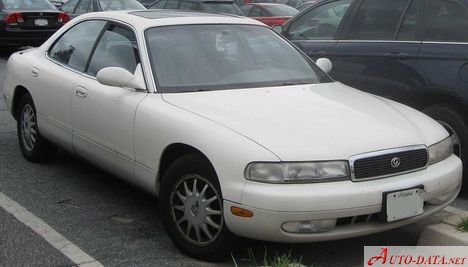

The Mazda Sentia HC, produced between 1996 and 2000, represented Mazda’s foray into the upper-midsize luxury sedan segment, primarily aimed at the Japanese domestic market (JDM). Positioned above the Mazda 626 (known as the Eunos Cosmo in some markets), the Sentia sought to offer a more prestigious and refined driving experience. The 3.0 i V6 18V, equipped with a 2.954-liter V6 engine producing 160 horsepower, was a key variant within the HC lineup, offering a balance between performance and comfort. It served as a step up from the smaller-engined models, appealing to buyers seeking a more powerful and sophisticated vehicle.
Technical Specifications
| Brand | Mazda |
| Model | Sentia |
| Generation | Sentia (HC) |
| Type (Engine) | 3.0 i V6 18V (160 Hp) |
| Start of production | 1996 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 16 l/100 km (14.7 US mpg, 17.7 UK mpg, 6.3 km/l) |
| Fuel consumption (extra urban) | 9 l/100 km (26.1 US mpg, 31.4 UK mpg, 11.1 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 200 km/h (124.27 mph) |
| Weight-to-power ratio | 9.6 kg/Hp, 104.6 Hp/tonne |
| Weight-to-torque ratio | 6.1 kg/Nm, 163.4 Nm/tonne |
| Power | 160 Hp @ 5500 rpm |
| Power per litre | 54.2 Hp/l |
| Torque | 250 Nm @ 2500 rpm (184.39 lb.-ft. @ 2500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 2954 cm3 (180.26 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 90 mm (3.54 in.) |
| Piston Stroke | 77.4 mm (3.05 in.) |
| Compression ratio | 8.5:1 |
| Number of valves per cylinder | 3 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Kerb Weight | 1530 kg (3373.07 lbs.) |
| Trunk (boot) space (minimum) | 360 l (12.71 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4895 mm (192.72 in.) |
| Width | 1795 mm (70.67 in.) |
| Height | 1420 mm (55.91 in.) |
| Wheelbase | 2850 mm (112.2 in.) |
| Front track | 1510 mm (59.45 in.) |
| Rear (Back) track | 1520 mm (59.84 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Coil spring |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/65 R15 93 H |
| Wheel rims size | 6J x 15 ET 50 |
Powertrain & Engine Architecture
The heart of the Sentia 3.0 i V6 was the JE series 3.0-liter V6 engine. This engine, designated as the JE-ZE, featured a 60-degree V-angle and utilized a single overhead camshaft (OHC) design per cylinder bank. The multi-port fuel injection system delivered fuel directly to each cylinder, optimizing combustion efficiency. The 8.5:1 compression ratio was a compromise between performance and the fuel quality available in the Japanese market. The engine’s 160 horsepower output, while not exceptionally high by contemporary standards, provided ample power for comfortable cruising and overtaking. Paired with this engine was a four-speed automatic transmission, designed for smooth and effortless gear changes. This transmission was chosen to enhance the luxury experience, prioritizing comfort over outright performance.
Driving Characteristics
The 3.0 i V6 automatic Sentia offered a refined and comfortable driving experience. The automatic transmission, while lacking the responsiveness of a manual gearbox, provided smooth shifts and made the car easy to drive in urban environments. The rear-wheel-drive configuration contributed to balanced handling, although it wasn’t particularly sporty. The engine delivered its peak torque of 250 Nm (184 lb-ft) at a relatively low 2500 rpm, providing good low-end and mid-range acceleration. Compared to the smaller 2.2-liter four-cylinder models, the 3.0 i V6 offered significantly more power and a more relaxed driving experience, especially on highways. However, it wasn’t as nimble or engaging as some of its European competitors.
Equipment & Trim Levels
The Sentia 3.0 i V6 typically came well-equipped, reflecting its positioning as a luxury vehicle. Standard features included power windows, power locks, air conditioning, and a high-quality audio system. Interior upholstery was typically cloth or leather, with woodgrain trim accents adding to the sense of luxury. Optional extras included a sunroof, upgraded audio systems, and power-adjustable seats. The trim level often dictated the availability of these options, with higher trims offering more standard features and a more luxurious interior.
Chassis & Braking
The Sentia HC utilized a traditional body-on-frame construction, contributing to its robust feel. The front suspension employed coil springs, while the rear suspension featured a double wishbone setup, designed to provide a comfortable ride and stable handling. Braking duties were handled by ventilated discs at the front and solid discs at the rear. An Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The steering was rack and pinion, assisted by hydraulic power steering for ease of maneuverability.
Market Reception & Comparison
The Mazda Sentia was generally well-received in Japan, praised for its comfortable ride, spacious interior, and refined driving experience. However, it faced stiff competition from established luxury brands such as Toyota, Nissan, and Honda. Critics noted that the Sentia, while offering good value for money, lacked the brand prestige of its rivals. The 3.0 i V6 variant was considered a sweet spot in the lineup, offering a good balance of performance and fuel economy. Fuel consumption figures were around 16 l/100 km in urban driving and 9 l/100 km on the highway, which was typical for a large-displacement V6 engine of that era. Compared to the smaller-engined Sentia models, the 3.0 i V6 offered superior performance but at the cost of slightly higher fuel consumption.
Legacy
The Mazda Sentia, while not a massive sales success, remains a fondly remembered vehicle among enthusiasts. The JE-ZE V6 engine is known for its reliability and smooth operation, provided it receives regular maintenance. Today, well-maintained examples of the Sentia 3.0 i V6 are becoming increasingly collectible, particularly in Japan. The car represents a unique chapter in Mazda’s history, showcasing the company’s ambition to compete in the luxury sedan segment. While parts availability can be a challenge, the Sentia’s robust construction and relatively simple mechanicals make it a viable classic car for those willing to invest the time and effort in its upkeep.
