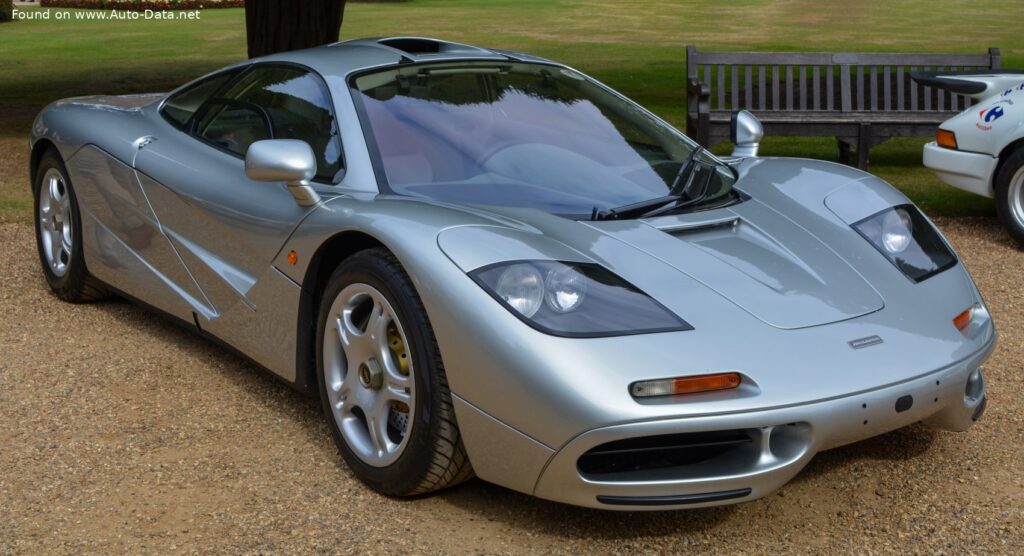

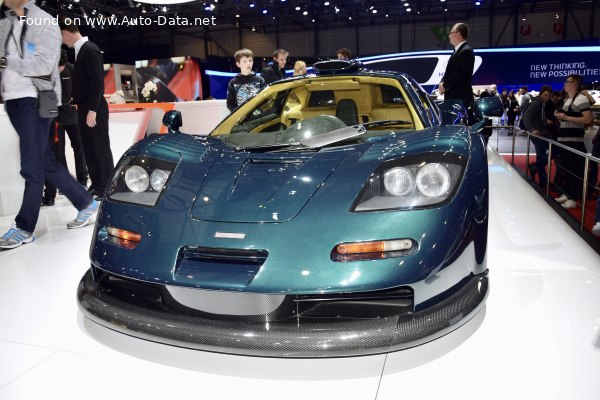

The McLaren F1 GT 6.1 V12, produced in extremely limited numbers during 1997, represents the ultimate evolution of the groundbreaking McLaren F1. Built to homologate the F1 GTR race car for GT Championship racing, the GT 6.1 was a significant step up in performance from the already exceptional standard F1. Only a handful of these cars were constructed, making them among the most coveted and valuable automobiles in the world. This variant distinguished itself through a more powerful engine, subtle aerodynamic refinements, and a focus on track-day capability while retaining road legality. It was a direct response to the demands of motorsport and a testament to McLaren’s engineering prowess.
Technical Specifications
| Brand | McLaren |
| Model | F1 |
| Generation | F1 |
| Type (Engine) | GT 6.1 V12 (627 Hp) |
| Start of production | 1997 |
| End of production | 1997 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 3 |
| Doors | 2 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 1.8 kg/Hp, 559.8 Hp/tonne |
| Weight-to-torque ratio | 1.7 kg/Nm, 580.4 Nm/tonne |
| Power | 627 Hp @ 7400 rpm |
| Power per litre | 103.4 Hp/l |
| Torque | 650 Nm @ 5600 rpm, 479.42 lb.-ft. @ 5600 rpm |
| Engine layout | Middle, Longitudinal |
| Engine Model/Code | BMW S70/2 |
| Engine displacement | 6064 cm3, 370.05 cu. in. |
| Number of cylinders | 12 |
| Engine configuration | V-engine |
| Cylinder Bore | 86 mm, 3.39 in. |
| Piston Stroke | 87 mm, 3.43 in. |
| Compression ratio | 11:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 6 l, 6.34 US qt | 5.28 UK qt |
| Kerb Weight | 1120 kg, 2469.18 lbs |
| Trunk (boot) space – minimum | 227 l, 8.02 cu. ft. |
| Trunk (boot) space – maximum | 283 l, 9.99 cu. ft. |
| Fuel tank capacity | 90 l, 23.78 US gal | 19.8 UK gal |
| Length | 4928 mm, 194.02 in. |
| Width | 1940 mm, 76.38 in. |
| Height | 1200 mm, 47.24 in. |
| Wheelbase | 2718 mm, 107.01 in. |
| Front track | 1620 mm, 63.78 in. |
| Rear (Back) track | 1582 mm, 62.28 in. |
| Ride height (ground clearance) | 120 mm, 4.72 in. |
| Drag coefficient (Cd) | 0.32 |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Coil spring, Double wishbone, Transverse stabilizer |
| Rear suspension | Double wishbone, Coil spring |
| Front brakes | Ventilated discs, 332×32 mm |
| Rear brakes | Ventilated discs, 305×26 mm |
| Steering type | Steering rack and pinion |
| Tires size | Front wheel tires: 235/45 R17Rear wheel tires: 315/45 R17 |
| Wheel rims size | Front wheel rims: 9J x 17Rear wheel rims: 11.5J x 17 |
Powertrain & Engine Architecture
At the heart of the F1 GT 6.1 lies the BMW S70/2 engine, a 6.1-liter naturally aspirated V12. This engine was an evolution of the S70/1 found in the standard F1, featuring increased displacement achieved through a larger bore and stroke. The engine produced a staggering 627 horsepower at 7,400 rpm and 650 Nm (479.42 lb-ft) of torque at 5,600 rpm. The engine utilized a multi-port fuel injection system and a double overhead camshaft (DOHC) valvetrain, ensuring precise control over the combustion process. The engine’s longitudinal mid-engine layout contributed to the car’s exceptional balance. The S70/2 was paired exclusively with a 6-speed manual transmission, providing drivers with complete control over the immense power.
Driving Characteristics
The F1 GT 6.1 delivered a driving experience unlike any other. The increased power output, combined with the relatively lightweight construction (1,120 kg or 2,469 lbs), resulted in breathtaking acceleration. While precise performance figures varied slightly depending on testing conditions, the GT 6.1 was capable of reaching 60 mph in around 3.2 seconds and achieving a top speed exceeding 220 mph. The manual transmission demanded skill and precision, but rewarded drivers with a direct connection to the engine. The car’s suspension, featuring coil springs and double wishbone setups at both ends, provided a surprisingly compliant ride for a vehicle of its performance capabilities. However, the GT 6.1 was primarily designed for track use, and its stiff chassis and direct steering demanded a high level of driver involvement.
Equipment & Trim Levels
The F1 GT 6.1 was not offered with extensive trim level options. Its focus was purely on performance. The interior was spartan yet functional, featuring lightweight bucket seats upholstered in carbon fiber and leather. A minimalist dashboard housed essential gauges, and creature comforts were limited to maintain weight savings. Air conditioning and a basic audio system were typically included, but options were scarce. The emphasis was on creating a driver-focused environment, free from unnecessary distractions. The central driving position, unique to the F1, provided the driver with unparalleled visibility and control.
Chassis & Braking
The F1 GT 6.1 utilized a carbon fiber monocoque chassis, providing exceptional rigidity and lightness. This construction technique was revolutionary at the time and contributed significantly to the car’s performance. The suspension system employed coil springs and double wishbone setups at both the front and rear, with a transverse stabilizer bar at the front to reduce body roll. Braking duties were handled by ventilated disc brakes at all four corners, measuring 332×32 mm at the front and 305×26 mm at the rear, providing ample stopping power. The car’s rear-wheel-drive configuration and precise steering rack and pinion system contributed to its exceptional handling characteristics.
Market Reception & Comparison
The McLaren F1 GT 6.1 was universally praised by automotive journalists and enthusiasts. Its performance was considered astonishing, and its engineering was lauded as a masterpiece. Compared to the standard F1, the GT 6.1 offered a noticeable increase in power and a more focused driving experience. While the standard F1 was a grand tourer capable of comfortable long-distance driving, the GT 6.1 was a dedicated performance machine. The limited production run and its racing pedigree ensured that the GT 6.1 quickly became a collector’s item, with values soaring over time. Fuel economy was, unsurprisingly, not a priority, and maintenance costs were exceptionally high due to the car’s complex engineering and specialized components.
Legacy
The McLaren F1 GT 6.1 remains a landmark achievement in automotive engineering. Its innovative design, powerful engine, and exceptional performance continue to inspire awe and admiration. The S70/2 engine, while complex, has proven to be remarkably durable when properly maintained. Today, the F1 GT 6.1 is one of the most valuable and sought-after automobiles in the world, commanding prices well into the multi-million dollar range. It represents the pinnacle of McLaren’s early engineering efforts and a testament to the company’s commitment to pushing the boundaries of automotive performance. Its influence can still be seen in modern supercars, and it continues to be celebrated as a true icon of the automotive world.
