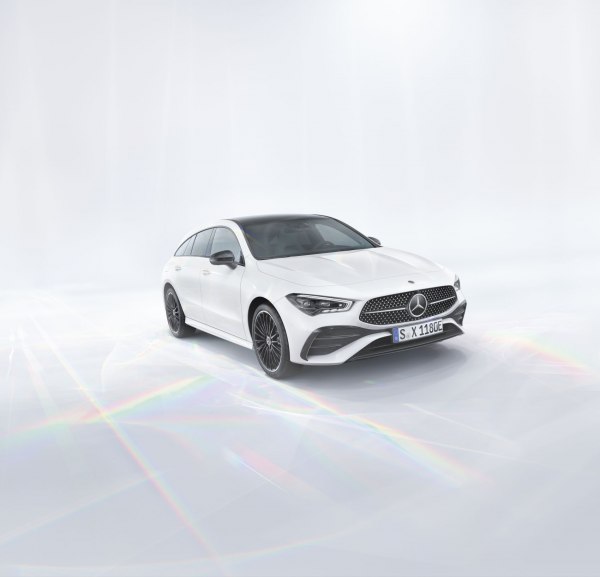

The Mercedes-Benz CLA 180d Shooting Brake (X118, facelift 2023) represents the entry point into the CLA Shooting Brake range, offering a blend of practicality, efficiency, and Mercedes-Benz luxury. Introduced with the facelift in January 2023, this variant is positioned as a fuel-conscious option within the compact executive estate segment. It builds upon the foundation of the X118 platform, shared with the A-Class and GLA, and aims to provide a stylish and comfortable experience for drivers prioritizing economy and everyday usability. This model is primarily marketed in Europe and other regions where diesel engines remain popular due to their fuel efficiency and lower running costs.
Technical Specifications
| Brand | Mercedes-Benz |
| Model | CLA |
| Generation | CLA Shooting Brake (X118, facelift 2023) |
| Type (Engine) | CLA 180d (116 Hp) 8G-DCT |
| Start of production | January, 2023 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Combined fuel consumption (WLTP) | 5.2-5.7 l/100 km (45.2 – 41.3 US mpg, 54.3 – 49.6 UK mpg, 19.2 – 17.5 km/l) |
| CO2 emissions (WLTP) | 135-149 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 10.1 sec |
| Acceleration 0 – 62 mph | 10.1 sec |
| Acceleration 0 – 60 mph | 9.6 sec |
| Maximum speed | 203 km/h (126.14 mph) |
| Emission standard | Euro 6e |
| Weight-to-power ratio | 13.3 kg/Hp, 75.1 Hp/tonne |
| Weight-to-torque ratio | 5.5 kg/Nm, 181.2 Nm/tonne |
| Power | 116 Hp @ 3400-4400 rpm |
| Power per litre | 59.5 Hp/l |
| Torque | 280 Nm @ 1300-2600 rpm (206.52 lb.-ft. @ 1300-2600 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | OM 654.920 |
| Engine displacement | 1950 cm3 (119 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm (3.23 in.) |
| Piston Stroke | 92.3 mm (3.63 in.) |
| Compression ratio | 15.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Kerb Weight | 1545 kg (3406.14 lbs.) |
| Max. weight | 2140 kg (4717.89 lbs.) |
| Max load | 595 kg (1311.75 lbs.) |
| Trunk (boot) space – minimum | 490 l (17.3 cu. ft.) |
| Trunk (boot) space – maximum | 1355 l (47.85 cu. ft.) |
| Fuel tank capacity | 43 l (11.36 US gal | 9.46 UK gal) |
| AdBlue tank | 23.8 l (6.29 US gal | 5.24 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 1400 kg (3086.47 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 80 kg (176.37 lbs.) |
| Length | 4688 mm (184.57 in.) |
| Width | 1830 mm (72.05 in.) |
| Width including mirrors | 1999 mm (78.7 in.) |
| Height | 1430 mm (56.3 in.) |
| Wheelbase | 2729 mm (107.44 in.) |
| Front track | 1614 mm (63.54 in.) |
| Rear (Back) track | 1610 mm (63.39 in.) |
| Front overhang | 927 mm (36.5 in.) |
| Rear overhang | 1032 mm (40.63 in.) |
| Minimum turning circle (turning diameter) | 11.1 m (36.42 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 8 gears, automatic transmission G-DCT |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 205/55 R17; 225/45 R18 |
| Wheel rims size | 6.5J x 17; 7.5J x 18 |
INTRODUCTION
The Mercedes-Benz CLA 180d Shooting Brake, part of the X118 facelift introduced in 2023, is a five-door station wagon designed to offer a practical and efficient entry point into the CLA range. The X118 generation represents a significant update to the original CLA Shooting Brake, incorporating revised styling, updated technology, and improved efficiency. This 180d variant, powered by a 1.95-liter diesel engine, is geared towards buyers who prioritize fuel economy and lower running costs without sacrificing the premium feel and features associated with the Mercedes-Benz brand. It slots in as the base model, below higher-powered petrol and diesel options like the CLA 200d and CLA 250.
Powertrain & Engine Architecture
At the heart of the CLA 180d lies the OM 654.920, a 1.95-liter inline-four cylinder diesel engine. This engine is a member of the modular OM 654 family, known for its advanced technology and efficiency. It utilizes a commonrail direct fuel injection system, delivering fuel at extremely high pressure for optimized combustion. The engine also features a turbocharger with an intercooler, boosting power and torque. The valvetrain employs a double overhead camshaft (DOHC) configuration with four valves per cylinder, enhancing breathing and overall performance. Paired with this engine is the 8G-DCT (8-speed dual-clutch transmission), a sophisticated gearbox known for its quick and smooth shifts. This transmission contributes to both fuel efficiency and a responsive driving experience. The 8G-DCT is a wet clutch system, offering improved durability and heat management compared to dry clutch systems.
Driving Characteristics
The CLA 180d, with its 116 horsepower and 280 Nm (206 lb-ft) of torque, delivers adequate performance for everyday driving. Acceleration from 0-100 km/h (0-62 mph) takes around 10.1 seconds. While not a performance-oriented variant, the engine provides sufficient power for comfortable cruising and overtaking maneuvers. The 8G-DCT transmission plays a crucial role in maximizing the available power, offering quick and seamless gear changes. Compared to higher-output versions like the CLA 200d, the 180d feels less urgent in its acceleration. However, the lower power output also contributes to improved fuel economy. The gear ratios are tuned for efficiency, prioritizing lower engine speeds at highway cruising. The front-wheel-drive configuration provides predictable handling, although it may lack the all-weather capability of optional all-wheel-drive systems available on other CLA variants.
Equipment & Trim Levels
The standard equipment level on the CLA 180d Shooting Brake is comprehensive, reflecting Mercedes-Benz’s commitment to luxury and technology. Standard features typically include automatic climate control, a touchscreen infotainment system with Apple CarPlay and Android Auto compatibility, and a suite of safety features such as automatic emergency braking and lane keeping assist. Interior upholstery is typically Artico leatherette, a high-quality synthetic leather. Optional extras include features like a larger touchscreen display, a panoramic sunroof, heated seats, and a premium sound system. Trim levels beyond the base model often add features like upgraded interior trim, larger alloy wheels, and advanced driver-assistance systems. The overall interior design emphasizes a modern and minimalist aesthetic, with high-quality materials and a focus on user-friendliness.
Chassis & Braking
The CLA 180d utilizes an independent suspension setup, with a McPherson strut front suspension and a multi-link rear suspension. This configuration provides a comfortable ride quality while maintaining good handling characteristics. A stabilizer bar is included on both axles to reduce body roll during cornering. The braking system consists of ventilated discs at the front and solid discs at the rear. Anti-lock braking system (ABS) is standard, along with electronic brakeforce distribution (EBD) and brake assist. The steering system is a rack and pinion type with electric power assistance, providing precise and responsive steering feel.
Market Reception & Comparison
The CLA 180d Shooting Brake has been generally well-received by automotive critics as a practical and efficient option within the compact executive estate segment. Reviewers have praised its fuel economy, comfortable ride, and stylish design. However, some have noted that the engine can feel underpowered, particularly when fully loaded or driving uphill. Compared to the CLA 200d, the 180d offers lower running costs but sacrifices some performance. Against competitors like the Audi A3 Sportback and BMW 2 Series Gran Coupe, the CLA 180d offers a compelling combination of luxury, technology, and efficiency. Its fuel economy figures are competitive within its class, and its spacious interior and practical estate body style make it a versatile choice for families and individuals alike.
Legacy
The OM 654 engine family, used in the CLA 180d, has proven to be a reliable and durable powertrain. Early reports suggest good long-term reliability, with owners reporting few major issues. The 8G-DCT transmission is also known for its robustness. As a result, the CLA 180d is expected to hold its value reasonably well in the used car market. Its fuel efficiency and relatively low maintenance costs make it an attractive option for buyers seeking a practical and economical premium estate. The combination of Mercedes-Benz build quality and the efficient diesel powertrain should ensure that these vehicles remain desirable for years to come.
