| General information | |
|---|---|
| Brand | Mercedes-Benz |
| Model | E-class |

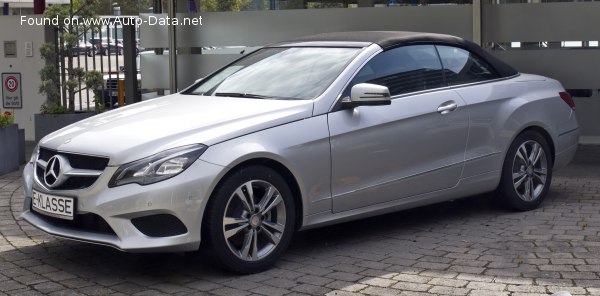

| Generation | E-class Cabrio (A207, facelift 2013) |
| Type (Engine) | E 220d (170 Hp) 9G-TRONIC |
| Start of production | September, 2015 year |
| End of production | March, 2017 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Cabriolet |
| Seats | 4 |
| Doors | 2 |
| Performance specs | |
| Fuel consumption (economy) – urban (NEDC) | 5.5-5.7 l/100 km 42.8 – 41.3 US mpg 51.4 – 49.6 UK mpg 18.2 – 17.5 km/l |
| Fuel consumption (economy) – extra urban (NEDC) | 4.1-4.4 l/100 km 57.4 – 53.5 US mpg 68.9 – 64.2 UK mpg 24.4 – 22.7 km/l |
| Fuel consumption (economy) – combined (NEDC) | 4.6-4.8 l/100 km 51.1 – 49 US mpg 61.4 – 58.9 UK mpg 21.7 – 20.8 km/l |
| CO2 emissions (NEDC) | 120-127 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 8.5 sec |
| Acceleration 0 – 62 mph | 8.5 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 8.1 sec |
| Maximum speed | 230 km/h 142.92 mph |
| Emission standard | Euro 6 |
| Weight-to-power ratio | 10.4 kg/Hp, 96 Hp/tonne |
| Weight-to-torque ratio | 4.4 kg/Nm, 226 Nm/tonne |
| Engine specs | |
| Power | 170 Hp @ 3000-4200 rpm. |
| Power per litre | 79.3 Hp/l |
| Torque | 400 Nm @ 1400-2800 rpm. 295.02 lb.-ft. @ 1400-2800 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | OM 651.911 |
| Engine displacement | 2143 cm3 130.77 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm 3.27 in. |
| Piston Stroke | 99 mm 3.9 in. |
| Compression ratio | 16.2:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | BiTurbo, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 6.5 l 6.87 US qt | 5.72 UK qt |
| Engine oil specification |  Log in to see. |
| Engine systems | Start & Stop System Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1770 kg 3902.18 lbs. |
| Max. weight | 2315 kg 5103.7 lbs. |
| Max load | 545 kg 1201.52 lbs. |
| Trunk (boot) space – minimum | 300 l 10.59 cu. ft. |
| Trunk (boot) space – maximum | 390 l 13.77 cu. ft. |
| Fuel tank capacity | 66 l 17.44 US gal | 14.52 UK gal |
| AdBlue tank | 25 l 6.6 US gal | 5.5 UK gal |
| Permitted trailer load with brakes (12%) | 1800 kg 3968.32 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Permitted towbar download | 75 kg 165.35 lbs. |
| Dimensions | |
| Length | 4703 mm 185.16 in. |
| Width | 1786 mm 70.31 in. |
| Width including mirrors | 2016 mm 79.37 in. |
| Height | 1398 mm 55.04 in. |
| Wheelbase | 2760 mm 108.66 in. |
| Front track | 1538 mm 60.55 in. |
| Rear (Back) track | 1541 mm 60.67 in. |
| Front overhang | 862 mm 33.94 in. |
| Rear overhang | 1081 mm 42.56 in. |
| Minimum turning circle (turning diameter) | 11.15 m 36.58 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 9 gears, automatic transmission G-TRONIC |
| Front suspension | Coil spring, Independent multi-link suspension, Transverse stabilizer |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | Front wheel tires: 235/45 R17; 235/40 R18; 235/35 R19 Rear wheel tires: 235/45 R17; 255/35 R18; 255/30 R19 |
| Wheel rims size | Front wheel rims: 7.5J x 17; 8J x 18; 8J x 19; 8.5J x 19 Rear wheel rims: 7.5J x 17; 8.5J x 18; 8.5J x 19 |
| What is the body type, Mercedes-Benz E-class Cabrio (A207, facelift 2013)? | Cabriolet, 2 Doors, 4 Seats |
|---|---|
| What is the fuel economy, Mercedes-Benz E-class Cabrio (A207, facelift 2013) E 220d (170 Hp) 9G-TRONIC? | 4.6-4.8 l/100 km 51.1 – 49 US mpg 61.4 – 58.9 UK mpg 21.7 – 20.8 km/l |
| How ECO is the car, Mercedes-Benz E-class E 220d (170 Hp) 9G-TRONIC? | 120-127 g/km CO2 Euro 6 |
| How fast is the car, 2015 E-class Cabrio (A207, facelift 2013) E 220d (170 Hp) 9G-TRONIC? | 230 km/h | 142.92 mph 0-100 km/h: 8.5 sec 0-60 mph: 8.1 sec |
| How much power, Mercedes-Benz E-class Cabriolet 2015 E 220d (170 Hp) 9G-TRONIC? | 170 Hp, 400 Nm 295.02 lb.-ft. |
| What is the engine size, Mercedes-Benz E-class Cabriolet 2015 E 220d (170 Hp) 9G-TRONIC? | 2.1 l 2143 cm3 130.77 cu. in. |
| How many cylinders, 2015 Mercedes-Benz E 220d (170 Hp) 9G-TRONIC? | 4, Inline |
| What is the drivetrain, Mercedes-Benz E-class Cabrio (A207, facelift 2013) Cabriolet 2015 E 220d (170 Hp) 9G-TRONIC? | Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| How long is this vehicle, 2015 Mercedes-Benz E-class Cabriolet? | 4703 mm 185.16 in. |
| How wide is the vehicle, 2015 Mercedes-Benz E-class Cabriolet? | 1786 mm 70.31 in. |
| What is the curb weight, 2015 Mercedes-Benz E-class Cabrio (A207, facelift 2013) E 220d (170 Hp) 9G-TRONIC? | 1770 kg 3902.18 lbs. |
| What is the gross weight, 2015 Mercedes-Benz E-class Cabrio (A207, facelift 2013) E 220d (170 Hp) 9G-TRONIC? | 2315 kg 5103.7 lbs. |
| How much trunk (boot) space, 2015 Mercedes-Benz E-class Cabriolet? | 300 – 390 l 10.59 – 13.77 cu. ft. |
| How many gears, What type is the gearbox, 2015 Mercedes-Benz E-class Cabrio (A207, facelift 2013) E 220d (170 Hp) 9G-TRONIC? | 9, automatic transmission G-TRONIC |
