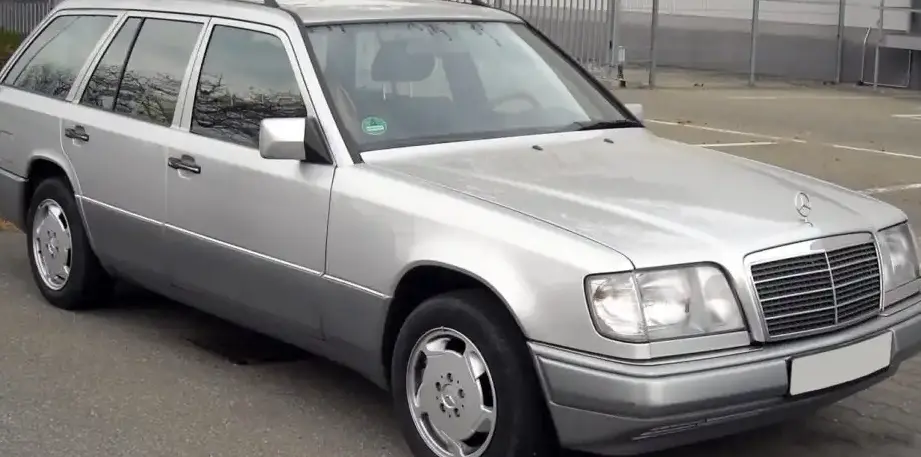

The Mercedes-Benz E-Class T-modell (S124) AMG E 36 T, produced between September 1993 and May 1996, represents a high-performance variant of the popular S124 estate car. Positioned as a premium offering within the E-Class range, it combined the practicality of a wagon with the performance enhancements developed by AMG, Mercedes-Benz’s in-house tuning division. This model catered to buyers seeking a blend of luxury, space, and spirited driving dynamics. It was a relatively limited-production vehicle, adding to its exclusivity and collectibility.
Technical Specifications
| Brand | Mercedes-Benz |
| Model | E-Class |
| Generation | E-Class T-modell (S124) |
| Type | AMG E 36 T (272 Hp) 4G-TRONIC |
| Start of production | September, 1993 |
| End of production | May, 1996 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 14 l/100 km (16.8 US mpg) |
| Fuel consumption (extra urban) | 9.6 l/100 km (24.5 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 7.2 sec |
| Acceleration 0 – 62 mph | 7.2 sec |
| Acceleration 0 – 60 mph | 6.8 sec |
| Maximum speed | 240 km/h (149.13 mph) |
| Weight-to-power ratio | 6 kg/Hp |
| Weight-to-torque ratio | 4.3 kg/Nm |
| Power | 272 Hp @ 5750 rpm |
| Torque | 385 Nm @ 3750-4500 rpm (283.96 lb.-ft.) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M 104 E 36 AMG / 104.9936 |
| Engine displacement | 3604 cm3 (219.93 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 91 mm (3.58 in.) |
| Piston Stroke | 92.4 mm (3.64 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Kerb Weight | 1640 kg (3615.58 lbs.) |
| Max. weight | 2230 kg (4916.31 lbs.) |
| Max load | 590 kg (1300.73 lbs.) |
| Fuel tank capacity | 72 l (19.02 US gal) |
| Length | 4765 mm (187.6 in.) |
| Width | 1740 mm (68.5 in.) |
| Height | 1468 mm (57.8 in.) |
| Wheelbase | 2800 mm (110.24 in.) |
| Front track | 1516 mm (59.69 in.) |
| Rear track | 1507 mm (59.33 in.) |
| Drivetrain Architecture | Rear wheel drive |
| Number of gears | 4 |
| Gearbox type | Automatic transmission G-TRONIC |
| Front suspension | Wishbone |
| Rear suspension | Hydro-pneumatic element, Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Cone worm with recirculation balls |
| Power steering | Hydraulic Steering |
| Tires size | 225/45 ZR17 |
| Wheel rims size | 7.5J x 17 |
Powertrain & Engine Architecture
The heart of the AMG E 36 T is the M 104 E 36 AMG engine, a 3.6-liter inline-six cylinder powerplant. This engine, designated with the code 104.9936, was a heavily modified version of Mercedes-Benz’s established M104 engine family. Key upgrades included a higher compression ratio (10.5:1), optimized cylinder head flow, and a revised intake and exhaust system. The engine utilized multi-port fuel injection for precise fuel delivery. The double overhead camshaft (DOHC) valvetrain, with four valves per cylinder, contributed to the engine’s high-revving nature and power output. Power was transmitted to the rear wheels via a four-speed 4G-TRONIC automatic transmission, specifically tuned to handle the increased torque. This transmission, while not as modern as later iterations, provided smooth shifts and adequate performance for the vehicle’s intended use.
Driving Characteristics
The AMG E 36 T offered a noticeable performance upgrade over the standard E-Class T-modell variants. The 272 horsepower and 284 lb-ft of torque allowed for brisk acceleration, achieving 0-60 mph in approximately 6.8 seconds and a top speed of 149 mph. While the automatic transmission wasn’t as engaging as a manual gearbox, it provided a comfortable and effortless driving experience. The gear ratios were optimized for both acceleration and highway cruising. Compared to the base model 1.8L or even the 2.8L E-Class wagons, the AMG version felt significantly more powerful and responsive. However, it didn’t possess the raw, visceral feel of some contemporary sports cars. The suspension, while comfortable, was firmer than the standard E-Class, providing better body control during spirited driving.
Equipment & Trim Levels
The AMG E 36 T came generously equipped, reflecting its premium positioning. Standard features included leather upholstery, power-adjustable front seats, automatic climate control, and an upgraded sound system. Exterior enhancements included AMG-specific body styling, including a front spoiler, side skirts, and a rear spoiler. Unique AMG wheels (7.5J x 17) and tires (225/45 ZR17) completed the exterior package. Optional extras included a sunroof, upgraded audio systems, and various interior trim options. The interior generally featured a dark wood trim, emphasizing the car’s luxury character.
Chassis & Braking
The S124 E-Class chassis was known for its robust construction and comfortable ride. The AMG E 36 T benefited from a slightly lowered and stiffer suspension setup to improve handling. The front suspension utilized wishbones, while the rear employed an independent multi-link suspension with a hydro-pneumatic element, offering a good balance between comfort and control. Braking duties were handled by ventilated discs on all four wheels, coupled with an Anti-lock Braking System (ABS) for enhanced safety. The braking system was adequately sized for the car’s performance, providing confident stopping power.
Market Reception & Comparison
The AMG E 36 T was well-received by automotive critics, who praised its blend of performance, practicality, and luxury. It was seen as a compelling alternative to more traditional sports wagons. Compared to other E-Class variants, the AMG model offered a significant performance advantage, but at a higher price point. Fuel economy, understandably, was lower than the more economical engine options, averaging around 16.8 mpg in the city and 24.5 mpg on the highway. Reliability was generally good, typical of Mercedes-Benz engineering, although the AMG-tuned engine and transmission required more diligent maintenance.
Legacy
The Mercedes-Benz E-Class T-modell (S124) AMG E 36 T remains a sought-after vehicle among enthusiasts and collectors. The M104 engine is known for its durability and relatively straightforward maintenance. While finding parts can sometimes be a challenge, the engine’s robust design ensures long-term reliability when properly maintained. Today, these wagons represent a unique combination of classic Mercedes-Benz styling, AMG performance, and practical wagon versatility. Well-maintained examples command a premium in the used car market, reflecting their rarity and desirability.
