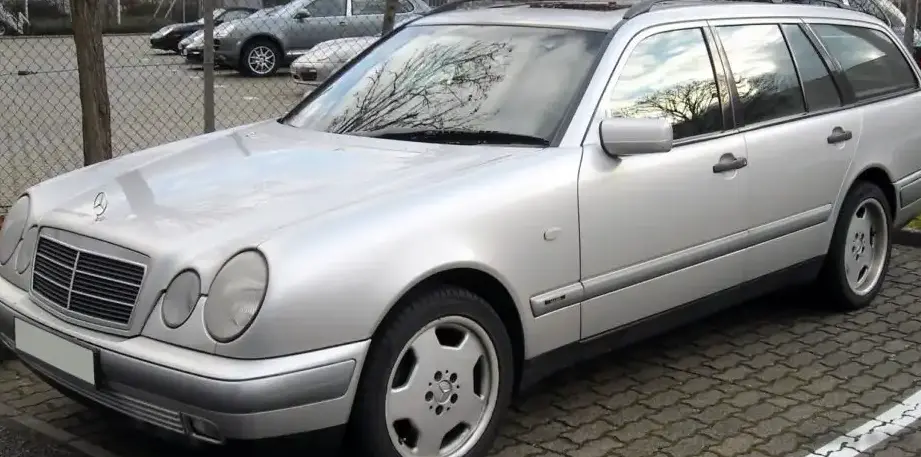

The Mercedes-Benz E-Class T-modell (S210) E 200 Kompressor, produced from March 1997 to July 1999, represented a compelling blend of practicality and performance within the W210 series. Positioned as a mid-range offering in the T-modell (estate) lineup, it catered to buyers seeking a spacious, comfortable wagon with a noticeable step up in power compared to the base models. The S210 chassis, introduced in 1996, brought a modern estate car design to the E-Class range, replacing the previous W124 T-modell. This variant specifically utilized a supercharged 2.0-liter inline-four engine, offering a balance between fuel efficiency and respectable acceleration.
Technical Specifications
| Brand | Mercedes-Benz |
| Model | E-Class |
| Generation | E-Class T-modell (S210) |
| Type (Engine) | E 200 Kompressor (192 Hp) |
| Start of production | March, 1997 |
| End of production | July, 1999 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 13.9 l/100 km (16.9 US mpg, 20.3 UK mpg, 7.2 km/l) |
| Fuel consumption (extra urban) | 7.7 l/100 km (30.5 US mpg, 36.7 UK mpg, 13 km/l) |
| Fuel consumption (combined) | 10 l/100 km (23.5 US mpg, 28.2 UK mpg, 10 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.1 sec |
| Acceleration 0 – 62 mph | 9.1 sec |
| Acceleration 0 – 60 mph | 8.6 sec |
| Maximum speed | 225 km/h (139.81 mph) |
| Weight-to-power ratio | 8.4 kg/Hp, 118.5 Hp/tonne |
| Weight-to-torque ratio | 6 kg/Nm, 166.7 Nm/tonne |
| Power | 192 Hp @ 5300 rpm |
| Power per litre | 96.1 Hp/l |
| Torque | 270 Nm @ 2500-4800 rpm (199.14 lb.-ft. @ 2500-4800 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M 111 E 20 ML / 111.947 |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 89.9 mm (3.54 in.) |
| Piston Stroke | 78.7 mm (3.1 in.) |
| Compression ratio | 8.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Supercharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Coolant | 8.5 l (8.98 US qt | 7.48 UK qt) |
| Kerb Weight | 1620 kg (3571.49 lbs.) |
| Max. weight | 2200 kg (4850.17 lbs.) |
| Max load | 580 kg (1278.68 lbs.) |
| Trunk (boot) space – minimum | 600 l (21.19 cu. ft.) |
| Trunk (boot) space – maximum | 1920 l (67.8 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4816 mm (189.61 in.) |
| Width | 1799 mm (70.83 in.) |
| Height | 1505 mm (59.25 in.) |
| Wheelbase | 2833 mm (111.54 in.) |
| Front track | 1542 mm (60.71 in.) |
| Rear (Back) track | 1546 mm (60.87 in.) |
| Drivetrain Architecture | Rear wheel drive |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Double wishbone |
| Rear suspension | Hydro-pneumatic element, Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/55 R16 |
| Wheel rims size | 7.5J x 16 |
Powertrain & Engine Architecture
The heart of the E 200 Kompressor was the M111 E 20 ML engine, a 1998cc inline-four cylinder powerplant. This engine was notable for its use of a mechanically driven supercharger (Kompressor in Mercedes terminology) and an intercooler. The supercharger provided increased torque at lower engine speeds, addressing the typical torque deficit of naturally aspirated four-cylinder engines. Fuel delivery was handled by a multi-port fuel injection system, ensuring precise fuel metering. The engine featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, optimizing breathing and contributing to its power output. The 5-speed manual transmission was the standard offering, providing drivers with direct control over the engine’s power. An optional 5-speed automatic transmission was also available, catering to those prioritizing convenience.
Driving Characteristics
The E 200 Kompressor offered a noticeably more spirited driving experience than the base E 200. The supercharger provided a strong surge of torque from around 2500 rpm, making overtaking and merging onto highways relatively effortless. While not a sports car, the E 200 Kompressor delivered respectable acceleration, achieving 0-60 mph in approximately 8.6 seconds. The manual transmission allowed for precise gear selection, while the automatic, though smooth, did slightly diminish the sense of control. The rear-wheel drive configuration contributed to balanced handling, although it lacked the all-weather capability of all-wheel drive variants.
Equipment & Trim Levels
The E 200 Kompressor T-modell typically came equipped with a solid base level of features, including power windows, power locks, and air conditioning. Interior upholstery was generally cloth, although leather was available as an option. Standard dashboard configuration included wood trim accents and a multi-function steering wheel. Optional extras included a sunroof, upgraded audio system, automatic climate control, and heated seats. The T-modell also benefited from the spaciousness of the estate body style, offering ample cargo capacity for families and those with active lifestyles.
Chassis & Braking
The S210 chassis featured a double wishbone front suspension and an independent multi-link rear suspension, providing a comfortable and controlled ride. The rear suspension utilized a hydro-pneumatic element, further enhancing ride quality. Braking duties were handled by ventilated discs at the front and solid discs at the rear. Anti-lock braking system (ABS) was standard, enhancing safety and stability during hard braking. The steering was a rack and pinion system with hydraulic power assistance, providing precise and responsive steering feel.
Market Reception & Comparison
The E 200 Kompressor T-modell was generally well-received by automotive critics. It was praised for its blend of practicality, performance, and comfort. Compared to the naturally aspirated E 200, the Kompressor variant offered a significant improvement in acceleration and responsiveness. It also provided a more affordable alternative to the more powerful E 280 or E 320 models. Fuel economy was reasonable for its class, although not exceptional. Reliability was generally good, although the supercharger system did require periodic maintenance.
Legacy
The M111 engine, including the E 200 Kompressor variant, proved to be a durable and reliable powerplant. Today, well-maintained examples of the E 200 Kompressor T-modell are sought after by enthusiasts and collectors. The combination of its spaciousness, comfortable ride, and respectable performance makes it a practical and enjoyable classic. While the supercharger system may require occasional attention, the engine’s overall robustness ensures that these vehicles can continue to provide years of reliable service. The S210 T-modell, in general, is remembered as a stylish and functional estate car that set a high standard for its time.
