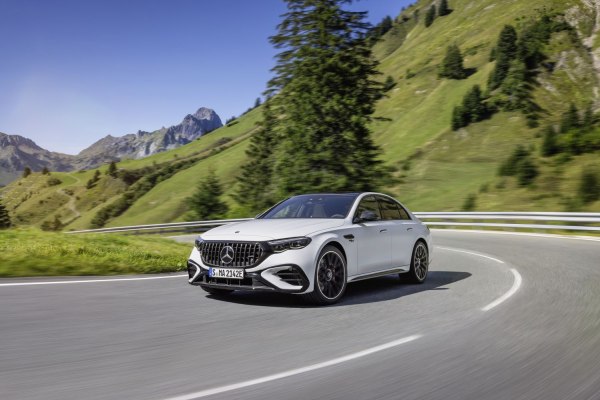

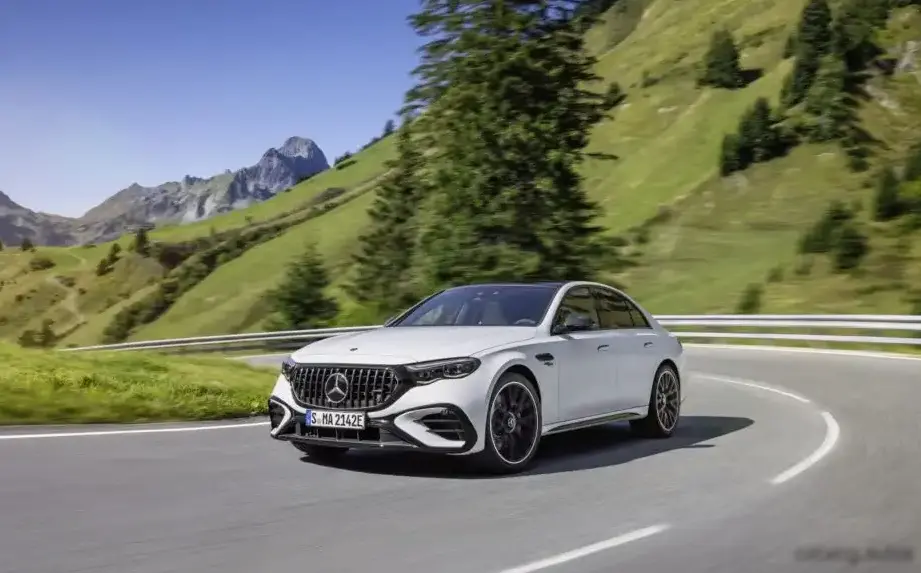

The Mercedes-Benz E 53 AMG 4MATIC+ Plug-in Hybrid, introduced in March 2024 as part of the W214 E-Class generation, represents a significant step in the brand’s electrified performance strategy. Positioned as a high-performance variant within the E-Class lineup, it bridges the gap between the more conventional E-Class models and the full AMG performance offerings. This model combines a potent inline-six cylinder engine with an electric motor and a plug-in hybrid system, delivering substantial power and efficiency. It’s designed to appeal to buyers seeking a luxurious, technologically advanced sedan with exhilarating performance and the flexibility of electric driving.
Technical Specifications
| Brand | Mercedes-Benz |
| Model | E-class |
| Generation | E-class (W214) |
| Type | AMG E 53 (585 Hp) Plug-in Hybrid 4MATIC+ AMG SPEEDSHIFT TCT 9G |
| Start of production | March, 2024 |
| Powertrain Architecture | PHEV (Plug-in Hybrid Electric Vehicle) |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Combined fuel consumption (WLTP) | 0.8-1 l/100 km |
| CO2 emissions (WLTP) | 19-23 g/km |
| Fuel Type | Petrol / electricity |
| Acceleration 0 – 100 km/h | 4 sec |
| Acceleration 0 – 62 mph | 4 sec |
| Acceleration 0 – 60 mph | 3.9 sec |
| Maximum speed | 250 km/h, Electronically limited (155.34 mph) |
| Emission standard | Euro 6e |
| Weight-to-power ratio | 4 kg/Hp, 252.7 Hp/tonne |
| Weight-to-torque ratio | 3.1 kg/Nm, 324 Nm/tonne |
| Gross battery capacity | 28.6 kWh |
| Net (usable) battery capacity | 21.2 kWh |
| Battery voltage | 400 V |
| Battery technology | Lithium-ion (Li-Ion) |
| Battery location | Under the trunk |
| Recuperation output | 120 kW |
| All-electric range (WLTP) | 93-101 km (57.79 – 62.76 mi) |
| Average Energy consumption (WLTP) | 24.1-25.9 kWh/100 km (38.79 – 41.68 kWh/100 mi) |
| Max speed (electric) | 140 km/h (86.99 mph) |
| Electric motor power | 163 Hp |
| Electric motor Torque | 480 Nm @ 1 rpm (354.03 lb.-ft. @ 1 rpm) |
| Electric motor location | Between the combustion engine and the transmission |
| Electric motor type | Synchronous |
| System power | 585 Hp |
| System torque | 750 Nm (553.17 lb.-ft.) |
| Power | 449 Hp @ 5800-6100 rpm |
| Torque | 560 Nm @ 2200-5000 rpm (413.03 lb.-ft. @ 2200-5000 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M 256 |
| Engine displacement | 2999 cm3 (183.01 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 92.4 mm (3.64 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Twin-scroll turbo, Intercooler |
| Valvetrain | DOHC, CAMTRONIC |
| Kerb Weight | 2315 kg (5103.7 lbs.) |
| Max. weight | 2920 kg (6437.5 lbs.) |
| Max load | 605 kg (1333.8 lbs.) |
| Trunk (boot) space – minimum | 370 l (13.07 cu. ft.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2100 kg (4629.71 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 84 kg (185.19 lbs.) |
| Length | 4959 mm (195.24 in.) |
| Width | 1902 mm (74.88 in.) |
| Width including mirrors | 2065 mm (81.3 in.) |
| Height | 1472 mm (57.95 in.) |
| Wheelbase | 2961 mm (116.57 in.) |
| Front track | 1649 mm (64.92 in.) |
| Rear (Back) track | 1608 mm (63.31 in.) |
| Minimum turning circle (turning diameter) | 12.53 m (41.11 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 9 gears, automatic transmission AMG SPEEDSHIFT TCT |
| Front suspension | Coil spring, Independent multi-link suspension, Transverse stabilizer |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs, 370×36 mm |
| Rear brakes | Ventilated discs, 360×26 mm |
| Assisting systems | ABS (Anti-lock braking system), 4-wheel steering (4WS, active rear steering) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | Front wheel tires: 255/45 ZR19 Rear wheel tires: 285/40 ZR19 |
| Wheel rims size | 19 |
INTRODUCTION
The Mercedes-Benz E 53 AMG 4MATIC+ Plug-in Hybrid, launched in March 2024, is a key component of the W214 E-Class range. It represents a significant evolution in the E-Class’s performance capabilities, blending the luxury and refinement expected of the model with the added benefits of a plug-in hybrid powertrain. This variant sits above the standard E-Class models and below the more aggressively tuned E 63 AMG, offering a compelling balance of performance, efficiency, and everyday usability. The W214 platform itself is a thoroughly modern design, incorporating advanced technology in areas such as driver assistance, infotainment, and connectivity.
Powertrain & Engine Architecture
At the heart of the E 53 AMG lies a 3.0-liter inline-six cylinder engine, internally designated as the M 256. This engine benefits from a twin-scroll turbocharger and direct fuel injection, producing 449 horsepower and 560 Nm (413 lb-ft) of torque. The engine features Mercedes-Benz’s CAMTRONIC variable valve timing system, optimizing efficiency and performance across the rev range. Crucially, this engine is paired with an electric motor integrated between the engine and the 9-speed AMG SPEEDSHIFT TCT automatic transmission. The electric motor contributes an additional 163 horsepower and 480 Nm (354 lb-ft) of torque. The combined system output is a substantial 585 horsepower and 750 Nm (553 lb-ft) of torque. The 28.6 kWh gross (21.2 kWh net) lithium-ion battery pack, located under the trunk floor, provides an all-electric range of 93-101 km (57.79 – 62.76 miles) according to WLTP standards. The transmission itself is a sophisticated 9-speed automatic, tuned for rapid and smooth shifts, and features a wet clutch pack for enhanced durability.
Driving Characteristics
The E 53 AMG delivers a remarkably refined yet potent driving experience. In electric mode, the car offers near-silent acceleration and impressive responsiveness. Switching to hybrid mode seamlessly blends the power of the engine and electric motor, resulting in exhilarating acceleration – 0 to 60 mph in just 3.9 seconds. The 9-speed transmission is well-matched to the engine’s characteristics, providing quick and precise gear changes. Compared to a standard E-Class, the E 53 benefits from a more responsive throttle, firmer suspension tuning, and enhanced braking performance. While not as overtly aggressive as the E 63, the E 53 offers a compelling balance of comfort and performance, making it suitable for both daily commuting and spirited driving. The all-wheel-drive system (4MATIC+) ensures excellent traction in all weather conditions.
Equipment & Trim Levels
The E 53 AMG comes standard with a comprehensive array of luxury and technology features. Interior appointments include premium leather upholstery, AMG sport seats, and a distinctive AMG steering wheel. The MBUX infotainment system, with its large touchscreen displays and advanced voice control, is a centerpiece of the cabin. Standard equipment also includes a panoramic sunroof, ambient lighting, and a premium sound system. Optional extras include advanced driver assistance systems such as adaptive cruise control, lane keeping assist, and a head-up display. Exterior styling cues include AMG-specific body styling, larger wheels, and performance brakes.
Chassis & Braking
The E 53 AMG features a sophisticated chassis designed to deliver both comfort and handling precision. The suspension utilizes coil springs and an independent multi-link setup at both the front and rear, with a transverse stabilizer bar to reduce body roll. The braking system consists of ventilated discs all around, with larger rotors and upgraded calipers compared to the standard E-Class. The E 53 also benefits from 4-wheel steering, which enhances agility at lower speeds and stability at higher speeds. The suspension is tuned to provide a firmer ride than the standard E-Class, but remains comfortable enough for everyday use.
Market Reception & Comparison
The E 53 AMG Plug-in Hybrid has been generally well-received by automotive critics. Praise has been directed towards its impressive performance, refined driving experience, and efficient powertrain. Compared to the standard E-Class models, the E 53 offers a significant step up in performance and handling. Compared to the E 63 AMG, the E 53 provides a more balanced and fuel-efficient option, sacrificing some of the ultimate performance for greater everyday usability. Fuel economy is a strong point, with the plug-in hybrid system allowing for significant electric-only driving, reducing fuel consumption and emissions. Reliability is expected to be in line with other Mercedes-Benz models, although long-term data is still emerging.
Legacy
The E 53 AMG Plug-in Hybrid represents a pivotal moment in the evolution of the E-Class, showcasing Mercedes-Benz’s commitment to electrification and performance. The combination of a powerful inline-six engine, an electric motor, and a plug-in hybrid system sets a new standard for luxury sedans. While it’s still early days, the powertrain is expected to prove reliable, benefiting from Mercedes-Benz’s extensive engineering expertise. On the used car market, the E 53 AMG is likely to hold its value well, appealing to buyers seeking a technologically advanced and high-performing luxury sedan.
