| General information | |
|---|---|
| Brand | Mercedes-Benz |
| Model | G-class |

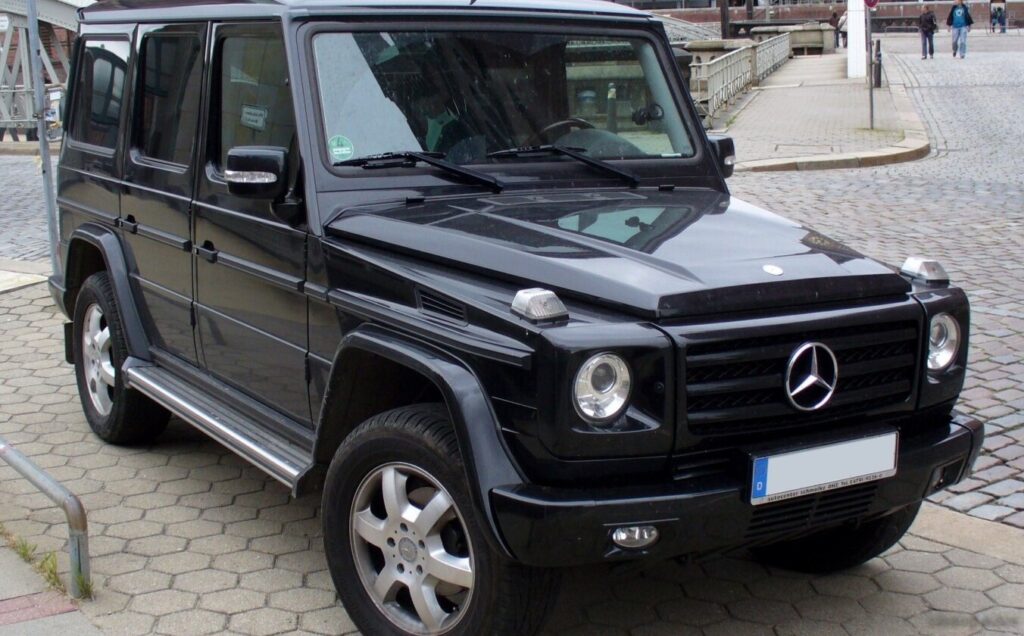

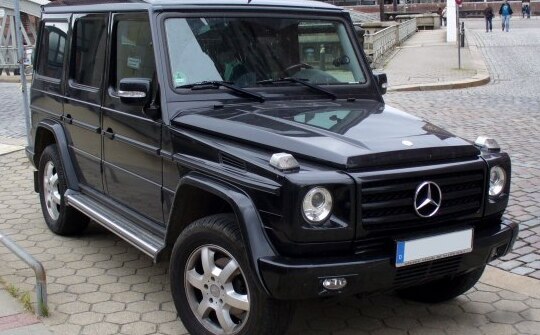

| Generation | G-class Long (W463, facelift 2008) |
| Type (Engine) | G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC |
| Start of production | 2009 year |
| End of production | 2010 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Off-road vehicle |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban (NEDC) | 13.4 l/100 km 17.6 US mpg 21.1 UK mpg 7.5 km/l |
| Fuel consumption (economy) – extra urban (NEDC) | 9.7 l/100 km 24.2 US mpg 29.1 UK mpg 10.3 km/l |
| Fuel consumption (economy) – combined (NEDC) | 11 l/100 km 21.4 US mpg 25.7 UK mpg 9.1 km/l |
| CO2 emissions (NEDC) | 291 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 9.1 sec |
| Acceleration 0 – 62 mph | 9.1 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 8.6 sec |
| Maximum speed | 177 km/h 109.98 mph |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 10.6 kg/Hp, 94.5 Hp/tonne |
| Weight-to-torque ratio | 4.4 kg/Nm, 227.8 Nm/tonne |
| Engine specs | |
| Power | 224 Hp @ 3800 rpm. |
| Power per litre | 75 Hp/l |
| Torque | 540 Nm @ 1600-2400 rpm. 398.28 lb.-ft. @ 1600-2400 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | OM 642.970 |
| Engine displacement | 2987 cm3 182.28 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 83 mm 3.27 in. |
| Piston Stroke | 92 mm 3.62 in. |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 8 l 8.45 US qt | 7.04 UK qt |
| Engine oil specification |  Log in to see. |
| Engine systems | Particulate filter |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 2370 kg 5224.96 lbs. |
| Max. weight | 3200 kg 7054.79 lbs. |
| Max load | 830 kg 1829.84 lbs. |
| Trunk (boot) space – minimum | 480 l 16.95 cu. ft. |
| Trunk (boot) space – maximum | 2250 l 79.46 cu. ft. |
| Fuel tank capacity | 96 l 25.36 US gal | 21.12 UK gal |
| Max. roof load | 200 kg 440.92 lbs. |
| Permitted trailer load with brakes (12%) | 3500 kg 7716.18 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Permitted towbar download | 140 kg 308.65 lbs. |
| Dimensions | |
| Length | 4662 mm 183.54 in. |
| Width | 1760 mm 69.29 in. |
| Width including mirrors | 2007 mm 79.02 in. |
| Height | 1931 mm 76.02 in. |
| Wheelbase | 2850 mm 112.2 in. |
| Front track | 1475 mm 58.07 in. |
| Rear (Back) track | 1475 mm 58.07 in. |
| Front overhang | 783 mm 30.83 in. |
| Rear overhang | 820 mm 32.28 in. |
| Ride height (ground clearance) | 205 mm 8.07 in. |
| Minimum turning circle (turning diameter) | 13.3 m 43.64 ft. |
| Approach angle | 36° |
| Departure angle | 27° |
| Climb angle | 38.7° |
| Wading depth | 500 mm 19.69 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 7 gears, automatic transmission G-TRONIC |
| Front suspension | Coil spring, Rigid axle suspension |
| Rear suspension | Rigid axle suspension, Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Cone worm with recirculation balls |
| Power steering | Hydraulic Steering |
| Tires size | 265/70 R16 |
| Wheel rims size | 7.5J x 16 |
| What is the body type, Mercedes-Benz G-class Long (W463, facelift 2008)? | Off-road vehicle, 5 Doors, 5 Seats |
|---|---|
| What is the fuel economy, Mercedes-Benz G-class Long (W463, facelift 2008) G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 11 l/100 km 21.4 US mpg 25.7 UK mpg 9.1 km/l |
| How ECO is the car, Mercedes-Benz G-class G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 291 g/km CO2 Euro 4 |
| How fast is the car, 2009 G-class Long (W463, facelift 2008) G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 177 km/h | 109.98 mph 0-100 km/h: 9.1 sec 0-60 mph: 8.6 sec |
| How much power, Mercedes-Benz G-class Off-road vehicle 2009 G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 224 Hp, 540 Nm 398.28 lb.-ft. |
| What is the engine size, Mercedes-Benz G-class Off-road vehicle 2009 G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 3.0 l 2987 cm3 182.28 cu. in. |
| How many cylinders, 2009 Mercedes-Benz G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 6, V-engine |
| What is the drivetrain, Mercedes-Benz G-class Long (W463, facelift 2008) Off-road vehicle 2009 G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | All wheel drive (4×4). Internal Combustion engine. The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle. |
| How long is this vehicle, 2009 Mercedes-Benz G-class Off-road vehicle? | 4662 mm 183.54 in. |
| How wide is the vehicle, 2009 Mercedes-Benz G-class Off-road vehicle? | 1760 mm 69.29 in. |
| What is the curb weight, 2009 Mercedes-Benz G-class Long (W463, facelift 2008) G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 2370 kg 5224.96 lbs. |
| What is the gross weight, 2009 Mercedes-Benz G-class Long (W463, facelift 2008) G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 3200 kg 7054.79 lbs. |
| How much trunk (boot) space, 2009 Mercedes-Benz G-class Off-road vehicle? | 480 – 2250 l 16.95 – 79.46 cu. ft. |
| How many gears, What type is the gearbox, 2009 Mercedes-Benz G-class Long (W463, facelift 2008) G 350 CDI V6 (224 Hp) 4MATIC 7G-TRONIC? | 7, automatic transmission G-TRONIC |
