| General information | |
|---|---|
| Brand | Mercedes-Benz |
| Model | Vito |

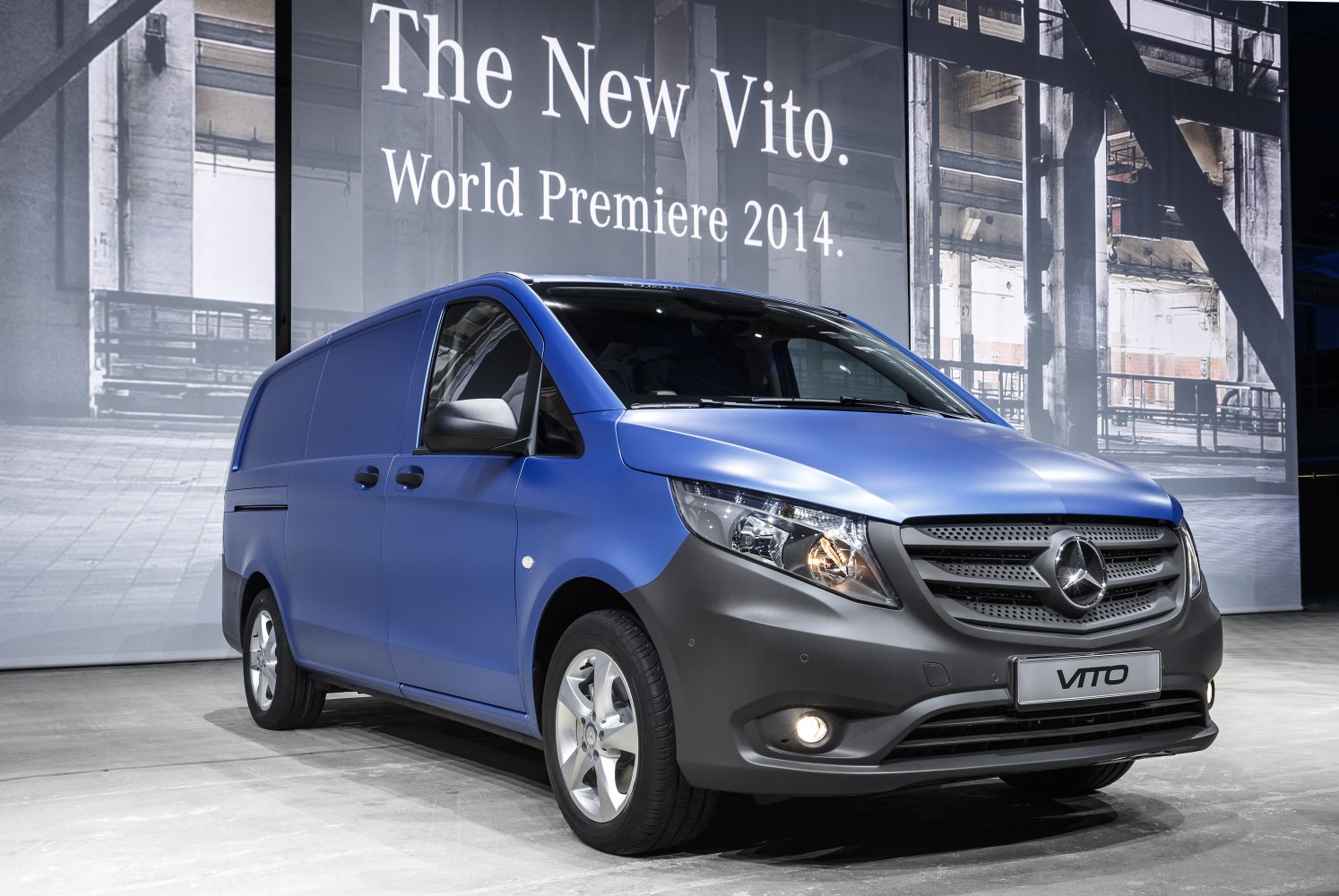

| Generation | Vito (W447) Panel Van Long |
| Type (Engine) | 109 CDI (88 Hp) |
| Start of production | 2014 year |
| End of production | 2018 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Van |
| Seats | 2-3 |
| Doors | 4-5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 7.7-7.8 l/100 km 30.5 – 30.2 US mpg 36.7 – 36.2 UK mpg 13 – 12.8 km/l |
| Fuel consumption (economy) – extra urban | 5.3-5.4 l/100 km 44.4 – 43.6 US mpg 53.3 – 52.3 UK mpg 18.9 – 18.5 km/l |
| Fuel consumption (economy) – combined | 6.2-6.3 l/100 km 37.9 – 37.3 US mpg 45.6 – 44.8 UK mpg 16.1 – 15.9 km/l |
| CO2 emissions | 162-164 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 18.9 sec |
| Acceleration 0 – 62 mph | 18.9 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 18 sec |
| Maximum speed | 157 km/h 97.56 mph |
| Emission standard | Euro 6b N1 |
| Engine specs | |
| Power | 88 Hp @ 3800 rpm. |
| Power per litre | 55.1 Hp/l |
| Torque | 230 Nm @ 1500-2000 rpm. 169.64 lb.-ft. @ 1500-2000 rpm. |
| Maximum engine speed | 4500 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | OM 622.951 |
| Engine displacement | 1598 cm3 97.52 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80 mm 3.15 in. |
| Piston Stroke | 79.5 mm 3.13 in. |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 6.5 l 6.87 US qt | 5.72 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 10.4 l 10.99 US qt | 9.15 UK qt |
| Engine systems | Particulate filter |
|
|
|
| Space, Volume and weights | |
| Max. weight | 2800-3050 kg 6172.94 – 6724.1 lbs. |
| Trunk (boot) space – minimum | 6000 l 211.89 cu. ft. |
| Fuel tank capacity | 57 l 15.06 US gal | 12.54 UK gal |
| AdBlue tank | 11.5 l 3.04 US gal | 2.53 UK gal |
| Max. roof load | 150 kg 330.69 lbs. |
| Permitted trailer load with brakes (12%) | 1200 kg 2645.55 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Permitted towbar download | 100 kg 220.46 lbs. |
| Dimensions | |
| Length | 5140 mm 202.36 in. |
| Width | 1928 mm 75.91 in. |
| Width including mirrors | 2249 mm 88.54 in. |
| Height | 1910 mm 75.2 in. |
| Wheelbase | 3200 mm 125.98 in. |
| Front overhang | 895 mm 35.24 in. |
| Rear overhang | 1045 mm 41.14 in. |
| Minimum turning circle (turning diameter) | 12.9 m 42.32 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent coil spring, Trailing arm |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 195/65 R16; 205/65 R16; 225/60 R16; 225/55 R17; 245/45 R18; 245/45 R19 |
| Wheel rims size | 6.5J x 16; 6.5J x 17; 7J x 17; 7.5J x 18; 8J x 19 |
| What is the body type, Mercedes-Benz Vito (W447) Panel Van Long? | Van, 4-5 Doors, 2-3 Seats |
|---|---|
| What is the fuel economy, Mercedes-Benz Vito (W447) Panel Van Long 109 CDI (88 Hp)? | 6.2-6.3 l/100 km 37.9 – 37.3 US mpg 45.6 – 44.8 UK mpg 16.1 – 15.9 km/l |
| How ECO is the car, Mercedes-Benz Vito 109 CDI (88 Hp)? | 162-164 g/km CO2 Euro 6b N1 |
| How fast is the car, 2014 Vito (W447) Panel Van Long 109 CDI (88 Hp)? | 157 km/h | 97.56 mph 0-100 km/h: 18.9 sec 0-60 mph: 18 sec |
| How much power, Mercedes-Benz Vito Van 2014 109 CDI (88 Hp)? | 88 Hp, 230 Nm 169.64 lb.-ft. |
| What is the engine size, Mercedes-Benz Vito Van 2014 109 CDI (88 Hp)? | 1.6 l 1598 cm3 97.52 cu. in. |
| How many cylinders, 2014 Mercedes-Benz 109 CDI (88 Hp)? | 4, Inline |
| What is the drivetrain, Mercedes-Benz Vito (W447) Panel Van Long Van 2014 109 CDI (88 Hp)? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2014 Mercedes-Benz Vito Van? | 5140 mm 202.36 in. |
| How wide is the vehicle, 2014 Mercedes-Benz Vito Van? | 1928 mm 75.91 in. |
| What is the gross weight, 2014 Mercedes-Benz Vito (W447) Panel Van Long 109 CDI (88 Hp)? | 2800-3050 kg 6172.94 – 6724.1 lbs. |
| How much trunk (boot) space, 2014 Mercedes-Benz Vito Van? | 6000 l 211.89 cu. ft. |
| How many gears, What type is the gearbox, 2014 Mercedes-Benz Vito (W447) Panel Van Long 109 CDI (88 Hp)? | 6, manual transmission |
