| General information | |
|---|---|
| Brand | Mitsubishi |
| Model | Eclipse |

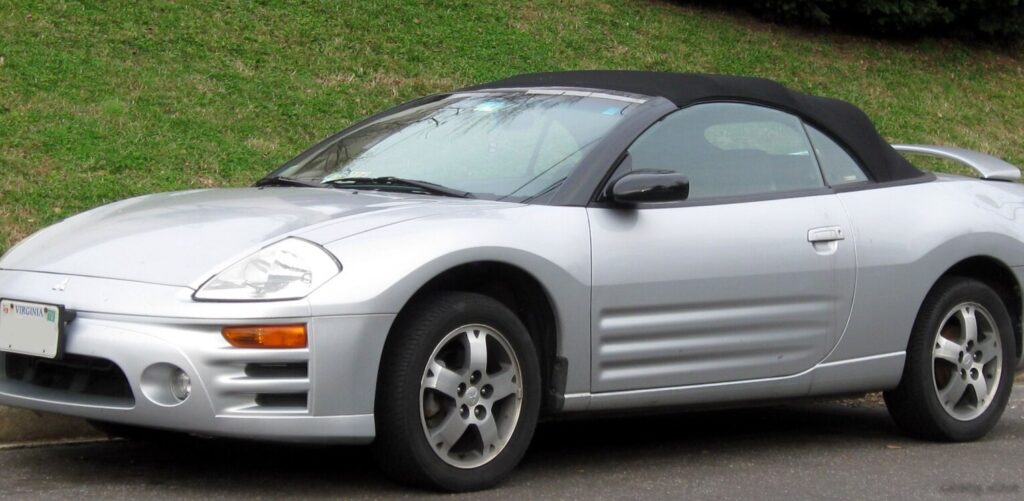

| Generation | Eclipse Spyder III (3G, facelift 2003) |
| Type (Engine) | GTS 3.0 i V6 24V (210 Hp) Automatic |
| Start of production | 2003 year |
| End of production | 2005 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Cabriolet |
| Seats | 4 |
| Doors | 2 |
| Performance specs | |
| Fuel consumption (economy) – urban | 11.8 l/100 km 19.9 US mpg 23.9 UK mpg 8.5 km/l |
| Fuel consumption (economy) – extra urban | 8.7 l/100 km 27 US mpg 32.5 UK mpg 11.5 km/l |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 7.3 kg/Hp, 136.4 Hp/tonne |
| Weight-to-torque ratio | 5.5 kg/Nm, 180.5 Nm/tonne |
| Engine specs | |
| Power | 210 Hp @ 5750 rpm. |
| Power per litre | 70.7 Hp/l |
| Torque | 278 Nm @ 3750 rpm. 205.04 lb.-ft. @ 3750 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | 6G72 |
| Engine displacement | 2972 cm3 181.36 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 91.1 mm 3.59 in. |
| Piston Stroke | 76 mm 2.99 in. |
| Compression ratio | 9:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 4.3 l 4.54 US qt | 3.78 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 8 l 8.45 US qt | 7.04 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1540 kg 3395.12 lbs. |
| Max. weight | 1865 kg 4111.62 lbs. |
| Max load | 325 kg 716.5 lbs. |
| Trunk (boot) space – minimum | 170 l 6 cu. ft. |
| Fuel tank capacity | 62 l 16.38 US gal | 13.64 UK gal |
| Dimensions | |
| Length | 4490 mm 176.77 in. |
| Width | 1750 mm 68.9 in. |
| Height | 1340 mm 52.76 in. |
| Wheelbase | 2560 mm 100.79 in. |
| Front track | 1510 mm 59.45 in. |
| Rear (Back) track | 1510 mm 59.45 in. |
| Front overhang | 1010 mm 39.76 in. |
| Rear overhang | 920 mm 36.22 in. |
| Ride height (ground clearance) | 165 mm 6.5 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/50 R17 |
| Wheel rims size | 17 |
| What is the body type, Mitsubishi Eclipse Spyder III (3G, facelift 2003)? | Cabriolet, 2 Doors, 4 Seats |
|---|---|
| How much power, Mitsubishi Eclipse Cabriolet 2003 GTS 3.0 i V6 24V (210 Hp) Automatic? | 210 Hp, 278 Nm 205.04 lb.-ft. |
| What is the engine size, Mitsubishi Eclipse Cabriolet 2003 GTS 3.0 i V6 24V (210 Hp) Automatic? | 3.0 l 2972 cm3 181.36 cu. in. |
| How many cylinders, 2003 Mitsubishi GTS 3.0 i V6 24V (210 Hp) Automatic? | 6, V-engine |
| What is the drivetrain, Mitsubishi Eclipse Spyder III (3G, facelift 2003) Cabriolet 2003 GTS 3.0 i V6 24V (210 Hp) Automatic? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2003 Mitsubishi Eclipse Cabriolet? | 4490 mm 176.77 in. |
| How wide is the vehicle, 2003 Mitsubishi Eclipse Cabriolet? | 1750 mm 68.9 in. |
| What is the curb weight, 2003 Mitsubishi Eclipse Spyder III (3G, facelift 2003) GTS 3.0 i V6 24V (210 Hp) Automatic? | 1540 kg 3395.12 lbs. |
| What is the gross weight, 2003 Mitsubishi Eclipse Spyder III (3G, facelift 2003) GTS 3.0 i V6 24V (210 Hp) Automatic? | 1865 kg 4111.62 lbs. |
| How much trunk (boot) space, 2003 Mitsubishi Eclipse Cabriolet? | 170 l 6 cu. ft. |
| How many gears, What type is the gearbox, 2003 Mitsubishi Eclipse Spyder III (3G, facelift 2003) GTS 3.0 i V6 24V (210 Hp) Automatic? | 4, automatic transmission |
