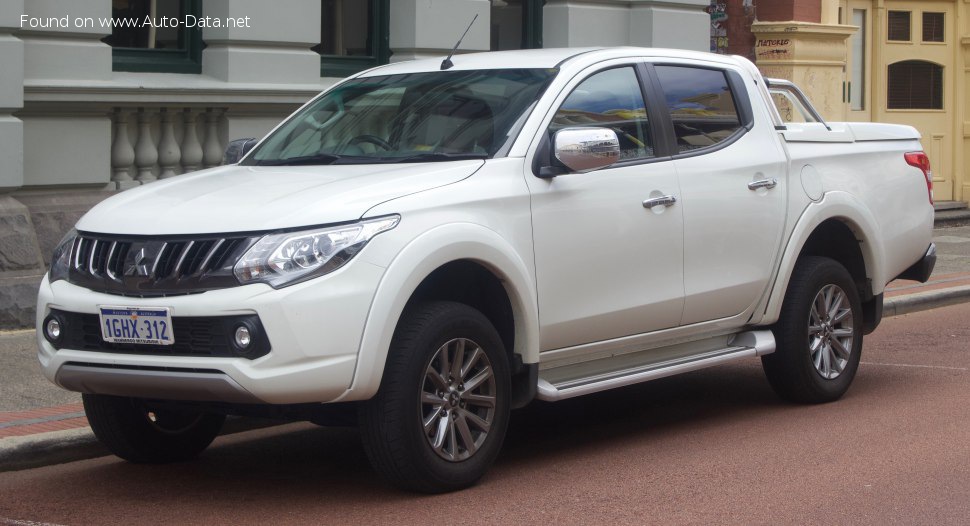

Mitsubishi Triton V 2.5 DI-D (110 Hp)

The Mitsubishi Triton V 2.5 DI-D (110 Hp), produced from 2015 to 2018, represents the fifth generation of Mitsubishi’s popular pickup truck. While not officially sold in the United States, the Triton (known as the Mitsubishi L200 in many international markets) is a significant vehicle in Asia, Europe, Australia, and Latin America, competing with models like the Toyota Hilux and Nissan Navara. This generation focused on improving comfort, refinement, and safety while maintaining the Triton’s reputation for ruggedness and practicality. The 2.5 DI-D variant, equipped with a 110 horsepower diesel engine, was a common offering in several markets, prioritizing fuel efficiency and durability over outright performance.

Mitsubishi Triton V 2.5 DI-D: Overview

The Triton V, launched in 2015, marked a substantial evolution for the series. It aimed to blend the functionality expected of a workhorse pickup with features appealing to private buyers. The fifth-generation Triton introduced a more sophisticated design, improved interior quality, and enhanced safety technologies. The 2.5 DI-D engine option provided a balance between power and economy, making it suitable for a wide range of applications, from commercial use to family transport. Its rear-wheel-drive configuration and manual transmission were typical for the segment in many of its target markets.

Engine & Performance

The heart of the Triton V 2.5 DI-D is a 2.5-liter inline-four cylinder diesel engine. This engine produces 110 horsepower at 4000 rpm and 200 Newton-meters (147.51 lb.-ft.) of torque at 2000 rpm. The engine utilizes a turbocharger with an intercooler to enhance power output and efficiency. A diesel commonrail fuel injection system ensures precise fuel delivery, contributing to improved combustion and reduced emissions. The engine’s longitudinal front-engine layout is a conventional setup for pickup trucks. The power-to-weight ratio of 14.5 kg/Hp and a torque-to-weight ratio of 8 kg/Nm indicate a focus on usability rather than high performance. The 5-speed manual transmission allows for driver control and contributes to fuel economy. While not a performance-oriented vehicle, the 2.5 DI-D engine provides adequate power for typical pickup truck duties, including hauling and towing.

Design & Features

The Mitsubishi Triton V 2.5 DI-D is a four-door pickup truck with a seating capacity of five passengers. Its body-on-frame construction provides a robust platform for carrying loads and navigating challenging terrain. The exterior design features a more modern and sculpted appearance compared to previous generations, with a focus on aerodynamic efficiency. The interior was significantly upgraded, offering improved comfort and ergonomics. Key features included an electric power steering system for ease of maneuverability, ventilated front disc brakes and drum rear brakes for stopping power, and an Anti-lock Braking System (ABS) for enhanced safety. The Triton V’s ride height of 200 mm (7.87 inches) provides adequate ground clearance for off-road driving. The vehicle’s dimensions – 5200 mm (204.72 in) in length, 1785 mm (70.28 in) in width, and 1655 mm (65.16 in) in height – position it within the mid-size pickup truck segment. A 75-liter (19.81 US gal) fuel tank provides a reasonable driving range.

Technical Specifications

BrandMitsubishi
ModelTriton
GenerationTriton V
Type (Engine)2.5 DI-D (110 Hp)
Start of productionMay, 2015
End of production2018
Powertrain ArchitectureInternal Combustion engine
Body typePick-up
Seats5
Doors4
Fuel TypeDiesel
Weight-to-power ratio14.5 kg/Hp
Hp/tonne69.2 Hp/tonne
Weight-to-torque ratio8 kg/Nm
Nm/tonne125.8 Nm/tonne
Power110 Hp @ 4000 rpm
Power per litre44.4 Hp/l
Torque200 Nm @ 2000 rpm
Torque (lb.-ft.)147.51 lb.-ft. @ 2000 rpm
Engine layoutFront, Longitudinal
Engine displacement2477 cm3
Engine displacement (cu. in.)151.16 cu. in.
Number of cylinders4
Engine configurationInline
Number of valves per cylinder4
Fuel injection systemDiesel Commonrail
Engine aspirationTurbocharger, Intercooler
ValvetrainDOHC
Kerb Weight1590 kg
Kerb Weight (lbs.)3505.35 lbs.
Max. weight2570 kg
Max. weight (lbs.)5665.88 lbs.
Max load980 kg
Max load (lbs.)2160.53 lbs.
Fuel tank capacity75 l
Fuel tank capacity (US gal)19.81 US gal
Fuel tank capacity (UK gal)16.5 UK gal
Length5200 mm
Length (in.)204.72 in.
Width1785 mm
Width (in.)70.28 in.
Height1655 mm
Height (in.)65.16 in.
Wheelbase3000 mm
Wheelbase (in.)118.11 in.
Front track1520 mm
Front track (in.)59.84 in.
Rear track1515 mm
Rear track (in.)59.65 in.
Front overhang860 mm
Front overhang (in.)33.86 in.
Rear overhang1340 mm
Rear overhang (in.)52.76 in.
Ride height (ground clearance)200 mm
Ride height (in.)7.87 in.
Drag coefficient (Cd)0.42
Minimum turning circle11.4 m
Minimum turning circle (ft.)37.4 ft.
Drivetrain ArchitectureRear wheel drive
Number of gears5
Gearbox typeManual transmission
Front suspensionDouble wishbone
Rear suspensionLeaf spring
Front brakesVentilated discs
Rear brakesDrum
Assisting systemsABS (Anti-lock braking system)
Steering typeSteering rack and pinion
Power steeringElectric Steering
Wheel rims size15

The Mitsubishi Triton V 2.5 DI-D (110 Hp) offered a practical and reliable option for buyers seeking a versatile pickup truck. While not available in the US market, it remains a popular choice in numerous countries, appreciated for its durability, fuel efficiency, and overall value.
