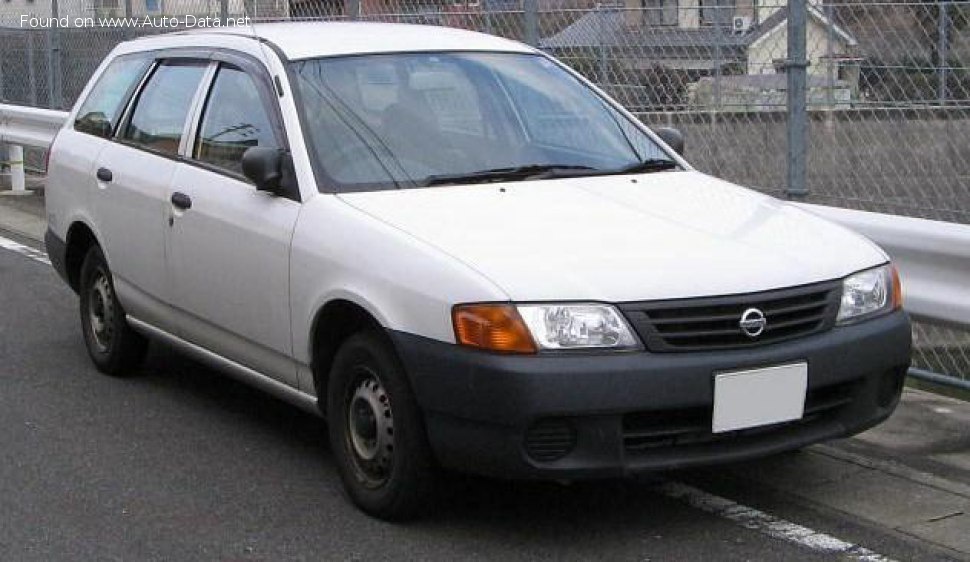

The Nissan AD Y11, specifically the 1.3 i variant producing 90 horsepower, was a compact station wagon produced between 1999 and 2006. Positioned as an entry-level offering within the Y11 AD series, it served as a practical and affordable vehicle primarily targeted at fleet buyers and families seeking a versatile, no-frills transport solution. The AD series, historically a commercial vehicle line in Japan, evolved to include more passenger-oriented models like the Y11, aiming for broader market appeal. This generation, the Y11, represented a significant step up in refinement and features compared to its predecessors, while still maintaining a focus on utility and cost-effectiveness.
Technical Specifications
| Brand | Nissan |
| Model | AD |
| Generation | AD Y11 |
| Type (Engine) | 1.3 i (90 Hp) |
| Start of production | 1999 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 12.3 kg/Hp, 81.1 Hp/tonne |
| Weight-to-torque ratio | 9.3 kg/Nm, 108.1 Nm/tonne |
| Power | 90 Hp @ 6000 rpm |
| Power per litre | 69.5 Hp/l |
| Torque | 120 Nm @ 4400 rpm (88.51 lb.-ft. @ 4400 rpm) |
| Engine displacement | 1295 cm3 (79.03 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 71 mm (2.8 in.) |
| Piston Stroke | 81.5 mm (3.21 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Kerb Weight | 1110 kg (2447.13 lbs.) |
| Max. weight | 1645 kg (3626.6 lbs.) |
| Max load | 535 kg (1179.47 lbs.) |
| Fuel tank capacity | 50 l (13.21 US gal | 11 UK gal) |
| Length | 4370 mm (172.05 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1475 mm (58.07 in.) |
| Wheelbase | 2535 mm (99.8 in.) |
| Front track | 1480 mm (58.27 in.) |
| Rear (Back) track | 1440 mm (56.69 in.) |
| Ride height (ground clearance) | 145 mm (5.71 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
Powertrain & Engine Architecture
The heart of the AD Y11 1.3 i is the Nissan QG13DE engine, a 1.3-liter inline-four cylinder gasoline engine. This engine belongs to Nissan’s QG series, known for its relatively simple design and focus on fuel efficiency. The QG13DE utilizes a multi-point fuel injection system, delivering fuel directly to each intake port. The engine features a single overhead camshaft (SOHC) design with four valves per cylinder, contributing to reasonable performance for its displacement. The 90 horsepower output is achieved at 6000 rpm, while peak torque of 120 Nm (88.51 lb-ft) arrives at 4400 rpm. While not a powerhouse, the QG13DE was designed for smooth, predictable power delivery. The 5-speed manual transmission was the standard offering, providing a direct connection between the engine and the front wheels. The transmission’s gear ratios were tuned for everyday driving, prioritizing fuel economy over outright acceleration.
Driving Characteristics
The 1.3L engine and manual transmission combination in the AD Y11 offered a practical, if not particularly exciting, driving experience. Acceleration was modest, with the vehicle feeling most comfortable during city driving and on relatively flat roads. The 5-speed manual allowed drivers to keep the engine in its optimal power band, but overtaking maneuvers required careful planning. Compared to the larger 1.5L or 1.8L variants, the 1.3L felt noticeably less powerful, especially when fully loaded with passengers and cargo. The gear ratios were spaced to maximize fuel efficiency, meaning the engine could feel strained at higher speeds. Handling was typical for a compact station wagon – predictable and safe, but not sporty. The suspension was tuned for comfort, absorbing bumps and imperfections in the road reasonably well.
Equipment & Trim Levels
The AD Y11 1.3 i was generally offered with a fairly basic level of equipment, reflecting its position as an entry-level model. Standard features typically included power steering, central locking, and basic instrumentation. Interior upholstery was usually cloth, and the dashboard featured a functional, if somewhat utilitarian, design. Air conditioning was often an optional extra, as were power windows and a radio/cassette player. Higher trim levels, available on the larger-engined models, offered features like alloy wheels, upgraded interior trim, and more advanced audio systems. The 1.3 i was often chosen by fleet buyers who prioritized practicality and low running costs over luxury features.
Chassis & Braking
The AD Y11 utilized a front-engine, front-wheel-drive layout. The suspension consisted of MacPherson struts at the front and a torsion beam axle at the rear. This setup provided a good balance between ride comfort and handling. Braking duties were handled by ventilated discs at the front and drum brakes at the rear. While adequate for everyday driving, the drum brakes on the rear wheels were a cost-saving measure and didn’t offer the same stopping power as disc brakes. The vehicle’s relatively light weight (1110 kg / 2447 lbs) helped to mitigate the limitations of the braking system.
Market Reception & Comparison
The Nissan AD Y11 1.3 i was generally well-received as a practical and affordable station wagon. Critics praised its fuel efficiency and spacious interior, but noted its lack of power and basic equipment levels. Compared to other compact station wagons available at the time, such as the Toyota Caldina or the Honda Civic Wagon, the AD Y11 offered a competitive price point. However, it often lagged behind in terms of performance and refinement. The 1.3L engine was considered adequate for urban driving, but less suitable for long highway journeys or frequent hauling of heavy loads. The manual transmission was appreciated by drivers who preferred a more engaging driving experience, but some found it less convenient than an automatic.
Legacy
The Nissan AD Y11 1.3 i, while not a particularly glamorous vehicle, proved to be a reliable and durable workhorse. The QG13DE engine is known for its longevity, and with proper maintenance, can withstand high mileage. In the used car market, these ADs are often sought after by buyers looking for an affordable and practical vehicle. Parts availability is generally good, and maintenance costs are relatively low. While not a collector’s item, the AD Y11 1.3 i remains a testament to Nissan’s ability to produce functional and dependable vehicles that meet the needs of everyday drivers. Its simplicity and robust construction have ensured its continued presence on roads today, particularly in markets where practicality and affordability are highly valued.
