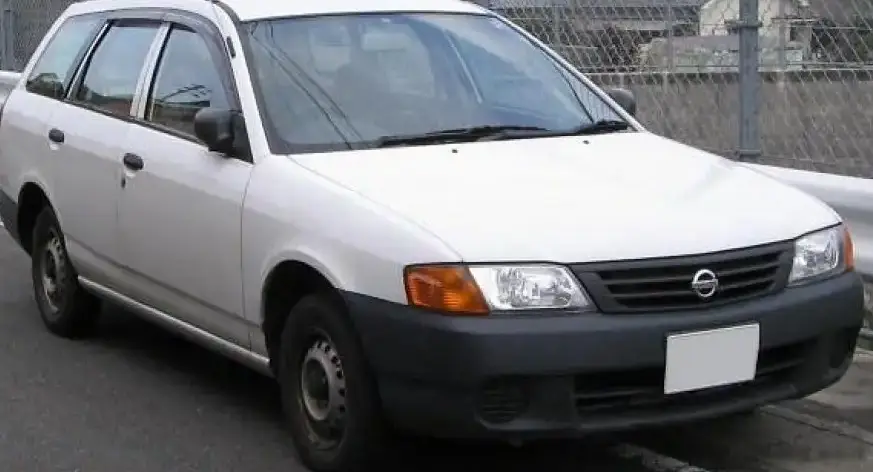

The Nissan AD Y11 1.3i, produced between 1999 and 2006, represents a practical and economical variant within the broader Y11 series of compact station wagons. Positioned as an entry-level offering, this model catered to buyers prioritizing affordability and fuel efficiency over outright performance. The AD, or Active Duty, was primarily marketed in Japan as a light commercial vehicle, often utilized by small businesses and families needing a versatile and reliable transport solution. The Y11 generation, introduced in 1999, offered increased interior space and improved refinement compared to its predecessors, solidifying its position as a popular choice in its segment. The 1.3i Automatic configuration, with its modest power output and convenient transmission, was a common sight on Japanese roads.
Technical Specifications
| Brand | Nissan |
| Model | AD |
| Generation | AD Y11 |
| Type (Engine) | 1.3i (87 Hp) Automatic |
| Start of production | 1999 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Power | 87 Hp @ 6000 rpm |
| Power per litre | 67.2 Hp/l |
| Torque | 113 Nm @ 4400 rpm / 83.34 lb.-ft. @ 4400 rpm |
| Engine displacement | 1295 cm3 / 79.03 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 71 mm / 2.8 in. |
| Piston Stroke | 81.5 mm / 3.21 in. |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Max. weight | 1645 kg / 3626.6 lbs. |
| Fuel tank capacity | 50 l / 13.21 US gal | 11 UK gal |
| Length | 4370 mm / 172.05 in. |
| Width | 1695 mm / 66.73 in. |
| Height | 1475 mm / 58.07 in. |
| Wheelbase | 2535 mm / 99.8 in. |
| Front track | 1480 mm / 58.27 in. |
| Rear (Back) track | 1440 mm / 56.69 in. |
| Ride height (ground clearance) | 145 mm / 5.71 in. |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
Powertrain & Engine Architecture
The heart of the AD Y11 1.3i Automatic is the GA13DE engine, a 1.3-liter inline-four cylinder gasoline engine. This engine utilizes a multi-point fuel injection system, delivering fuel directly to each intake port for improved combustion efficiency. The GA13DE features a single overhead camshaft (SOHC) design with four valves per cylinder, contributing to a reasonable balance of power and fuel economy. The engine’s 9.5:1 compression ratio is typical for naturally aspirated engines of this era. Paired with this engine is a four-speed automatic transmission, designed for smooth and effortless operation. This transmission, while not offering the responsiveness of a manual gearbox, provided a comfortable driving experience, particularly in urban environments. The transmission’s gear ratios were optimized for fuel efficiency and everyday usability, rather than spirited acceleration.
Driving Characteristics
The 87 horsepower and 113 Nm (83.34 lb-ft) of torque produced by the GA13DE engine translate to modest, but adequate, performance. Acceleration is best described as leisurely, with a 0-60 mph time likely exceeding 12 seconds. The automatic transmission contributes to a smooth driving experience, but it can feel somewhat sluggish when attempting to overtake or climb hills. Compared to the more powerful 1.5-liter and 1.8-liter variants of the AD Y11, the 1.3i Automatic offers significantly less performance. However, it excels in fuel economy, achieving an estimated combined fuel consumption of around 6.0-7.0 liters per 100 kilometers (39-45 mpg). The suspension is tuned for comfort, providing a reasonably smooth ride over most road surfaces. The front disc brakes and rear drum brakes offer adequate stopping power for everyday driving, though they lack the bite of more advanced braking systems.
Equipment & Trim Levels
The AD Y11 1.3i Automatic typically came equipped with a basic, yet functional, set of features. Standard equipment generally included power steering, air conditioning, and a basic audio system. Interior upholstery was typically cloth, with a durable and practical design. Higher trim levels, though less common on the 1.3i variant, could add features such as power windows, central locking, and upgraded audio systems. The dashboard layout was straightforward and easy to use, prioritizing functionality over aesthetics. Optional extras included alloy wheels, a sunroof, and a rear wiper.
Chassis & Braking
The AD Y11 utilizes a front-engine, front-wheel-drive layout. The suspension consists of MacPherson struts at the front and a torsion beam axle at the rear. This configuration provides a good balance of ride comfort and handling. The front brakes are ventilated discs, offering better heat dissipation than solid discs. However, the rear brakes are drums, which are less effective at dissipating heat and offer less stopping power than disc brakes. The vehicle’s relatively light weight (1645 kg / 3626.6 lbs) helps to mitigate the limitations of the rear drum brakes. A stabilizer bar is present at the front to reduce body roll during cornering.
Market Reception & Comparison
The Nissan AD Y11 1.3i Automatic was generally well-received in the Japanese market as a practical and affordable station wagon. Critics praised its fuel efficiency, spacious interior, and ease of use. However, its lack of performance was often noted. Compared to the 1.5-liter and 1.8-liter variants, the 1.3i Automatic offered lower running costs but significantly less driving enjoyment. The 1.5-liter engine provided a noticeable performance boost without a significant penalty in fuel economy, making it a popular alternative for those willing to spend a little more. The 1.8-liter variant, while offering the best performance, was considerably more expensive and less fuel-efficient.
Legacy
The Nissan AD Y11 1.3i Automatic has proven to be a relatively reliable vehicle, with the GA13DE engine known for its durability. Common maintenance issues include routine servicing items such as oil changes, spark plug replacements, and air filter replacements. The automatic transmission, if properly maintained, is generally reliable. Today, the AD Y11 1.3i Automatic can be found on the used car market at very affordable prices. It remains a popular choice for budget-conscious buyers seeking a practical and reliable station wagon. While not a performance icon, the AD Y11 1.3i Automatic represents a sensible and economical transportation solution that served a valuable role in the Japanese automotive landscape.
