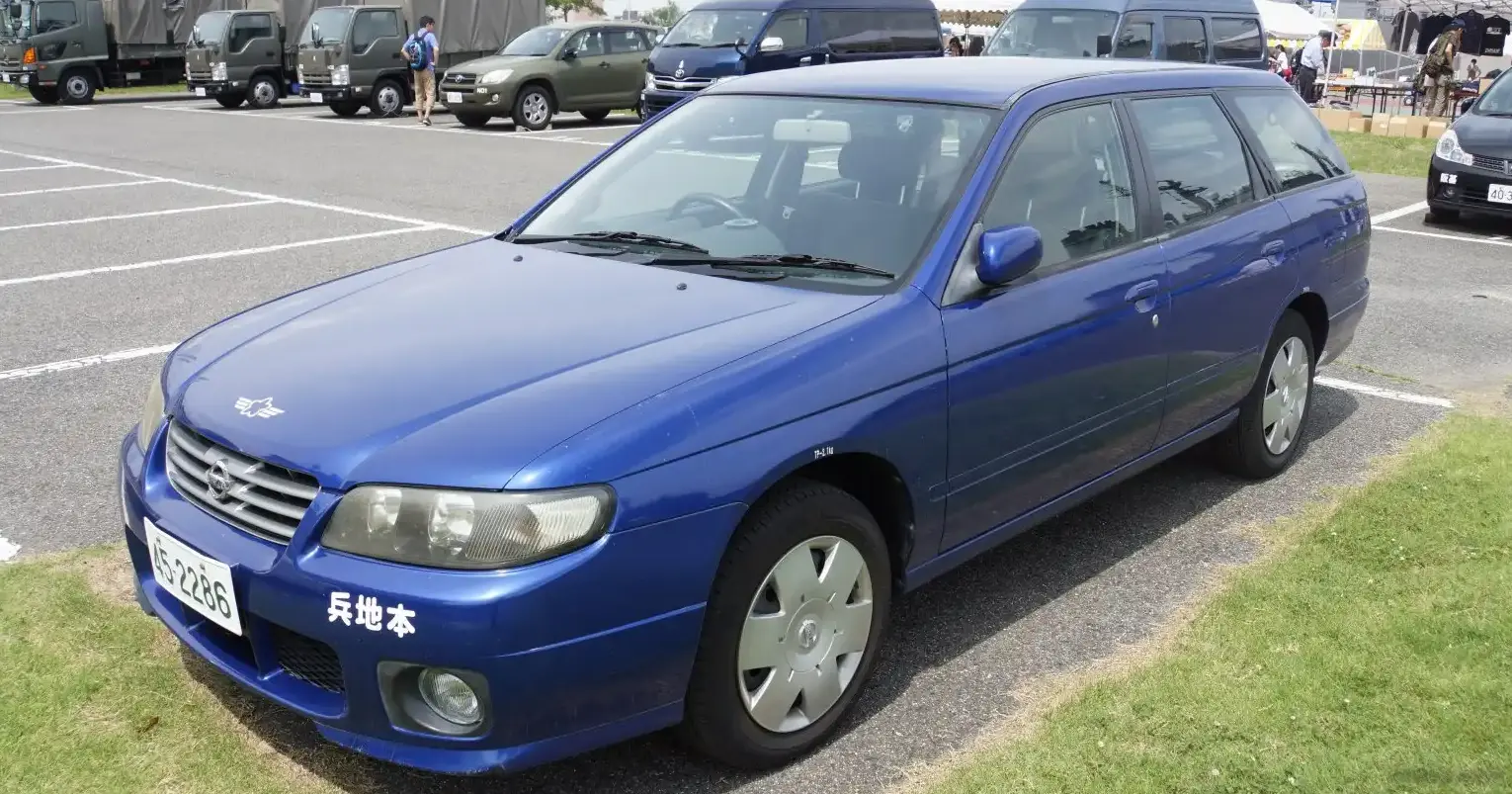

The Nissan Avenir (W11) 2.0i 16V, produced between 2002 and 2005, represented a mid-range offering within the broader Avenir lineup. Positioned as a practical and comfortable family wagon, the W11 Avenir aimed to provide a spacious and well-equipped vehicle for the Japanese domestic market, with limited export sales. This particular variant, featuring a 2.0-liter inline-four engine paired with a Continuously Variable Transmission (CVT), was designed to balance performance with fuel efficiency and ease of driving. The Avenir competed with other Japanese estate cars like the Toyota Caldina and Mitsubishi Libero, offering a blend of practicality and Nissan’s reputation for reliability.
Technical Specifications
| Brand | Nissan |
| Model | Avenir |
| Generation | Avenir (W11) |
| Type (Engine) | 2.0i 16V (150 Hp) CVT |
| Start of production | 2002 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 8.9 kg/Hp, 111.9 Hp/tonne |
| Weight-to-torque ratio | 6.7 kg/Nm, 149.3 Nm/tonne |
| Power | 150 Hp @ 6000 rpm |
| Power per litre | 75.1 Hp/l |
| Torque | 200 Nm @ 4000 rpm (147.51 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | SR20DE |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 89 mm (3.5 in.) |
| Piston Stroke | 80.3 mm (3.16 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Kerb Weight | 1340 kg (2954.19 lbs.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4650 mm (183.07 in.) |
| Width | 1695 mm (66.73 in.) |
| Height | 1490 mm (58.66 in.) |
| Wheelbase | 2620 mm (103.15 in.) |
| Front track | 1475 mm (58.07 in.) |
| Rear (Back) track | 1475 mm (58.07 in.) |
| Ride height (ground clearance) | 150 mm (5.91 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 1 gears, automatic transmission CVT |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 185/65 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of the Avenir 2.0i 16V is the SR20DE engine, a 1998cc inline-four cylinder powerplant. This engine is a naturally aspirated design, utilizing multi-port fuel injection and a double overhead camshaft (DOHC) valvetrain. The SR20DE was a well-established engine within Nissan’s lineup, known for its relative reliability and smooth operation. The 16 valves (four per cylinder) contribute to its respectable power output for its displacement. The engine produces 150 horsepower at 6000 rpm and 200 Nm (147.51 lb-ft) of torque at 4000 rpm. Paired with this engine is a Continuously Variable Transmission (CVT). Nissan’s CVT aimed to provide seamless acceleration and improved fuel economy compared to traditional automatic transmissions. The CVT lacks fixed gear ratios, instead utilizing a belt and pulley system to provide an infinite number of ratios within its operating range.
Driving Characteristics
The Avenir 2.0i 16V CVT offers a comfortable and relaxed driving experience. The CVT, while efficient, doesn’t provide the immediate response of a traditional automatic or manual transmission. Acceleration is smooth and linear, but can feel somewhat lacking in urgency, especially when compared to the more powerful Avenir variants equipped with larger engines. The CVT tends to hold the engine at its optimal power band, which can sometimes result in a droning engine note during hard acceleration. The front-wheel-drive configuration provides predictable handling, but doesn’t offer the dynamic capabilities of all-wheel-drive systems found in some competing wagons. The suspension is tuned for comfort, absorbing bumps and imperfections in the road well, making it a suitable vehicle for long journeys.
Equipment & Trim Levels
The 2.0i 16V CVT trim typically included standard features such as power windows, power locks, air conditioning, and a basic audio system. Interior upholstery was generally cloth, with options for upgraded materials available. The dashboard layout was functional and straightforward, prioritizing ease of use. Optional extras could include alloy wheels, a sunroof, and a more advanced audio system with a CD changer. The Avenir aimed to provide a good level of equipment for its price point, appealing to families seeking a practical and comfortable vehicle.
Chassis & Braking
The Avenir W11 utilizes a front-engine, front-wheel-drive layout. Suspension consists of coil springs on all four wheels, providing a comfortable ride. The front brakes are ventilated discs, offering good stopping power, while the rear brakes are solid discs. Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. Steering is rack and pinion with hydraulic power assistance, providing a light and responsive feel. The vehicle rides on 15-inch wheels with tire size 185/65 R15.
Market Reception & Comparison
The Nissan Avenir 2.0i 16V CVT was generally well-received as a practical and reliable family wagon. Critics praised its spacious interior, comfortable ride, and fuel efficiency. However, some reviewers noted the lack of excitement in its driving dynamics, particularly compared to more performance-oriented estate cars. Compared to the higher-spec Avenir models with larger engines, the 2.0i 16V offered a more affordable entry point into the Avenir range, but at the expense of outright performance. Fuel economy was a strong point, making it an attractive option for drivers prioritizing efficiency. Reliability was also a key strength, with the SR20DE engine being known for its durability.
Legacy
The Nissan Avenir W11, including the 2.0i 16V CVT variant, has maintained a reputation for reliability in the used car market. The SR20DE engine is known to be relatively robust and can withstand high mileage with proper maintenance. CVT transmissions, however, can be a point of concern, as they require specific maintenance procedures and can be expensive to repair if neglected. Today, the Avenir W11 is considered a practical and affordable option for those seeking a spacious and reliable estate car. While not a particularly sought-after classic, it remains a testament to Nissan’s commitment to building durable and functional vehicles.
