| General information | |
|---|---|
| Brand | Nissan |
| Model | Patrol |

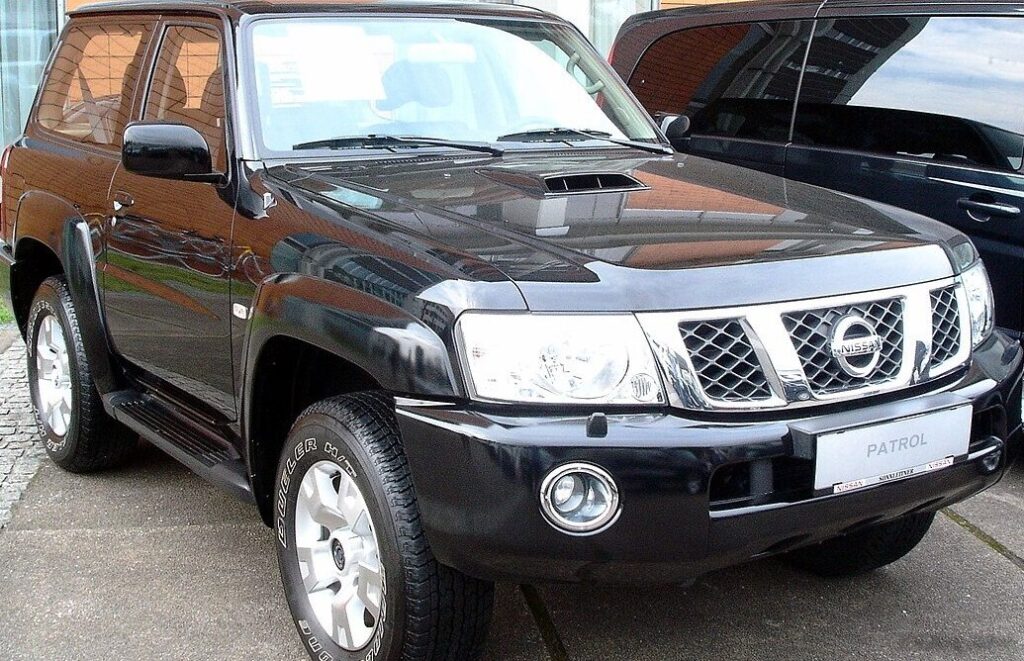

| Generation | Patrol V 3-door (Y61, facelift 2004) |
| Type (Engine) | 4.2 TD (160 Hp) |
| Start of production | 2004 year |
| End of production | 2009 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Off-road vehicle |
| Seats | 5 |
| Doors | 3 |
| Performance specs | |
| Fuel consumption (economy) – urban | 20 l/100 km 11.8 US mpg 14.1 UK mpg 5 km/l |
| Fuel consumption (economy) – extra urban | 11 l/100 km 21.4 US mpg 25.7 UK mpg 9.1 km/l |
| Fuel Type | Diesel |
| Maximum speed | 150 km/h 93.21 mph |
| Weight-to-power ratio | 14.5 kg/Hp, 69 Hp/tonne |
| Weight-to-torque ratio | 7 kg/Nm, 142.7 Nm/tonne |
| Engine specs | |
| Power | 160 Hp @ 3600 rpm. |
| Power per litre | 38.4 Hp/l |
| Torque | 331 Nm @ 2000 rpm. 244.13 lb.-ft. @ 2000 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | TD42Ti |
| Engine displacement | 4169 cm3 254.41 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 96 mm 3.78 in. |
| Piston Stroke | 96 mm 3.78 in. |
| Compression ratio | 22.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 10.5 l 11.1 US qt | 9.24 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 14.7 l 15.53 US qt | 12.93 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 2320 kg 5114.72 lbs. |
| Trunk (boot) space – minimum | 605 l 21.37 cu. ft. |
| Fuel tank capacity | 95 l 25.1 US gal | 20.9 UK gal |
| Dimensions | |
| Length | 4440 mm 174.8 in. |
| Width | 1930 mm 75.98 in. |
| Height | 1850 mm 72.83 in. |
| Wheelbase | 2400 mm 94.49 in. |
| Front track | 1605 mm 63.19 in. |
| Rear (Back) track | 1615 mm 63.58 in. |
| Drivetrain, brakes and suspension specs | |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Power steering | Hydraulic Steering |
| Tires size | 265/70 R16 |
| What is the body type, Nissan Patrol V 3-door (Y61, facelift 2004)? | Off-road vehicle, 3 Doors, 5 Seats |
|---|---|
| How fast is the car, 2004 Patrol V 3-door (Y61, facelift 2004) 4.2 TD (160 Hp)? | 150 km/h | 93.21 mph |
| How much power, Nissan Patrol Off-road vehicle 2004 4.2 TD (160 Hp)? | 160 Hp, 331 Nm 244.13 lb.-ft. |
| What is the engine size, Nissan Patrol Off-road vehicle 2004 4.2 TD (160 Hp)? | 4.2 l 4169 cm3 254.41 cu. in. |
| How many cylinders, 2004 Nissan 4.2 TD (160 Hp)? | 6, Inline |
| What is the drivetrain, Nissan Patrol V 3-door (Y61, facelift 2004) Off-road vehicle 2004 4.2 TD (160 Hp)? | All wheel drive (4×4). Internal Combustion engine. |
| How long is this vehicle, 2004 Nissan Patrol Off-road vehicle? | 4440 mm 174.8 in. |
| How wide is the vehicle, 2004 Nissan Patrol Off-road vehicle? | 1930 mm 75.98 in. |
| What is the curb weight, 2004 Nissan Patrol V 3-door (Y61, facelift 2004) 4.2 TD (160 Hp)? | 2320 kg 5114.72 lbs. |
| How much trunk (boot) space, 2004 Nissan Patrol Off-road vehicle? | 605 l 21.37 cu. ft. |
| How many gears, What type is the gearbox, 2004 Nissan Patrol V 3-door (Y61, facelift 2004) 4.2 TD (160 Hp)? | 5, manual transmission |
