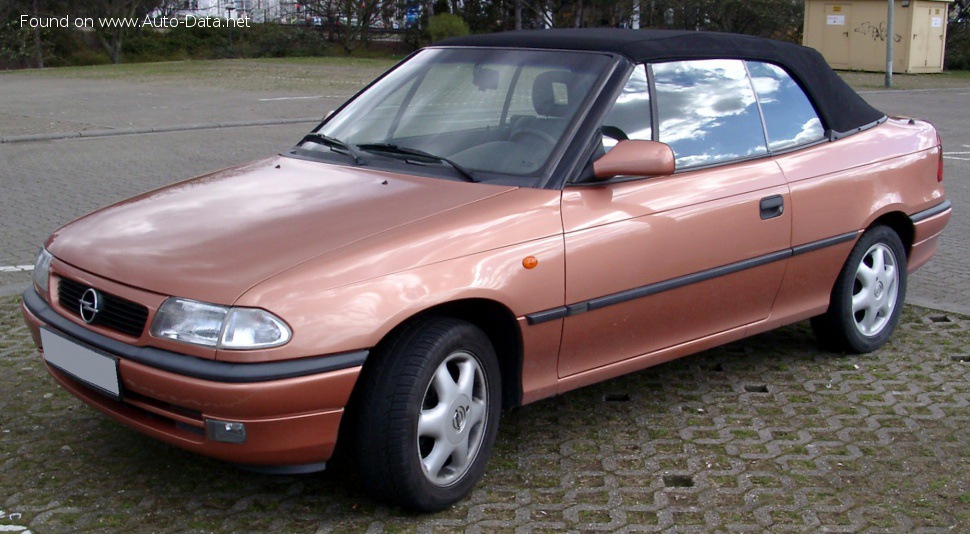

The Opel Astra F Cabriolet 1.6i, produced from 1996 to 2000, represented an accessible entry point into the world of open-top motoring within the broader Astra F range. Following the 1994 facelift of the Astra F series, the Cabriolet continued to offer a stylish and relatively affordable convertible option, particularly in European markets. This variant, powered by the 1.6-liter X16SZR engine and typically paired with a five-speed manual transmission, occupied the lower end of the Cabriolet lineup, focusing on fuel efficiency and affordability rather than outright performance. It was positioned below the more powerful 1.8 and 2.0-liter engine options, catering to buyers prioritizing practicality and lower running costs.
Technical Specifications
| Brand | Opel |
| Model | Astra |
| Generation | Astra F Cabrio (facelift 1994) |
| Type (Engine) | 1.6i (75 Hp) |
| Start of production | 1996 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Cabriolet |
| Seats | 4 |
| Doors | 2 |
| Fuel consumption (urban) | 8.7 l/100 km (27 US mpg, 32.5 UK mpg, 11.5 km/l) |
| Fuel consumption (extra urban) | 5.5 l/100 km (42.8 US mpg, 51.4 UK mpg, 18.2 km/l) |
| Fuel consumption (combined) | 7.2 l/100 km (32.7 US mpg, 39.2 UK mpg, 13.9 km/l) |
| CO2 emissions | 188 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 15 sec |
| Acceleration 0 – 62 mph | 15 sec |
| Acceleration 0 – 60 mph | 14.3 sec |
| Maximum speed | 168 km/h (104.39 mph) |
| Emission standard | Euro 2 |
| Weight-to-power ratio | 15.2 kg/Hp, 65.8 Hp/tonne |
| Weight-to-torque ratio | 8.9 kg/Nm, 112.3 Nm/tonne |
| Power | 75 Hp @ 5200 rpm |
| Power per litre | 46.9 Hp/l |
| Torque | 128 Nm @ 2600 rpm (94.41 lb.-ft. @ 2600 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | X16SZR |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 79 mm (3.11 in.) |
| Piston Stroke | 81.5 mm (3.21 in.) |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Single-point injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Coolant | 5.6 l (5.92 US qt | 4.93 UK qt) |
| Kerb Weight | 1140 kg (2513.27 lbs.) |
| Max. weight | 1560 kg (3439.21 lbs.) |
| Max load | 420 kg (925.94 lbs.) |
| Trunk (boot) space – minimum | 390 l (13.77 cu. ft.) |
| Fuel tank capacity | 52 l (13.74 US gal | 11.44 UK gal) |
| Length | 4239 mm (166.89 in.) |
| Width | 1684 mm (66.3 in.) |
| Width including mirrors | 1852 mm (72.91 in.) |
| Height | 1400 mm (55.12 in.) |
| Wheelbase | 2517 mm (99.09 in.) |
| Front track | 1424 mm (56.06 in.) |
| Rear (Back) track | 1423 mm (56.02 in.) |
| Ride height (ground clearance) | 135 mm (5.31 in.) |
| Drag coefficient (Cd) | 0.33 |
| Minimum turning circle | 10.5 m (34.45 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Steering type | Steering rack and pinion |
| Tires size | 185/60 R14 82H |
| Wheel rims size | 5.5J x 14 |
Powertrain & Engine Architecture
The heart of the Astra F Cabriolet 1.6i is the Opel X16SZR engine, a 1.6-liter inline-four cylinder unit. This engine belongs to Opel’s family of small displacement petrol engines, known for their simplicity and relative reliability. The X16SZR features a single overhead camshaft (SOHC) valvetrain operating two valves per cylinder. Fuel delivery is managed by a single-point fuel injection system, a common feature for engines of this era, which injects fuel into the intake manifold rather than directly into the cylinders. This system, while less efficient than later multi-point injection systems, contributed to the engine’s affordability. The engine produces 75 horsepower at 5200 rpm and 128 Nm (94.41 lb-ft) of torque at 2600 rpm. The standard transmission was a five-speed manual, although a four-speed automatic was offered as an option, further reducing performance.
Driving Characteristics
The 1.6-liter engine in the Astra F Cabriolet provided adequate, but not exhilarating, performance. Acceleration from 0 to 60 mph took around 14.3 seconds, and top speed was approximately 104 mph. The car felt best suited for relaxed cruising rather than spirited driving. The five-speed manual transmission offered a reasonable level of control, allowing drivers to keep the engine in its optimal power band. The optional four-speed automatic, however, noticeably dulled acceleration and required more frequent downshifts on inclines. The Cabriolet’s relatively light weight (around 2513 lbs) helped to mitigate the engine’s modest power output, making it feel more nimble than its horsepower figures might suggest.
Equipment & Trim Levels
The 1.6i Cabriolet typically came with a fairly basic level of equipment, reflecting its position as the entry-level model. Standard features generally included power steering, central locking, and a basic stereo system. Interior upholstery was typically cloth, and the dashboard featured a simple, functional design. Optional extras included alloy wheels, electric windows, and a more sophisticated audio system. The Cabriolet’s trim levels were relatively straightforward, with the 1.6i often serving as the base model, with upgrades available through optional packages.
Chassis & Braking
The Astra F Cabriolet utilized a MacPherson strut front suspension and a torsion beam rear suspension. The front brakes were ventilated discs, providing adequate stopping power, while the rear brakes were drums, a cost-saving measure common in this class of vehicle. The suspension setup prioritized ride comfort over sharp handling, making the Cabriolet a pleasant cruiser. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering, but the car’s soft suspension still allowed for a noticeable degree of lean.
Market Reception & Comparison
The Astra F Cabriolet 1.6i was generally well-received as an affordable and stylish convertible. Critics praised its attractive design and comfortable ride, but noted its lack of outright performance. Compared to the more powerful 1.8 and 2.0-liter versions, the 1.6i offered significantly lower fuel consumption (around 32.7 US mpg combined) but at the expense of acceleration and overall driving enjoyment. The 1.6i appealed to buyers who prioritized fuel economy and affordability over performance, making it a popular choice for those seeking a stylish and practical open-top car.
Legacy
The Opel Astra F Cabriolet 1.6i, while not the most powerful or technologically advanced version of the model, remains a popular choice among classic car enthusiasts and those seeking an affordable entry into the world of classic convertibles. The X16SZR engine is known for its relative reliability, although regular maintenance is essential to prevent issues such as oil leaks and timing chain wear. Today, well-maintained examples of the 1.6i Cabriolet can be found on the used car market, offering a charming and affordable way to experience open-top motoring. Its simplicity and relatively low running costs make it an attractive option for those seeking a classic car that is both enjoyable to drive and easy to maintain.
