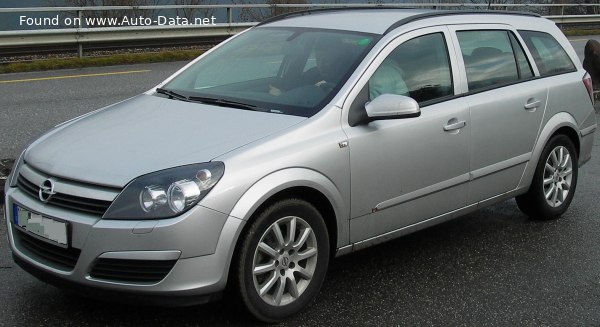

The Opel Astra H Caravan 1.6i 16V Automatic, produced between October 2004 and 2006, represented an entry-level offering within the broader Astra H Caravan (estate) range. Positioned as a practical and economical choice, this variant combined a 1.6-liter gasoline engine with a four-speed automatic transmission. It catered to buyers prioritizing comfort and ease of driving over outright performance, particularly in European markets where station wagons held significant popularity. The Astra H generation, built on the GM Delta platform, aimed to improve upon its predecessor with enhanced interior space, safety features, and a more refined driving experience.
Technical Specifications
| Brand | Opel |
| Model | Astra |
| Generation | Astra H Caravan |
| Type (Engine) | 1.6i 16V (105 Hp) Automatic |
| Start of production | October, 2004 |
| End of production | 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 8.6 l/100 km (27.4 US mpg, 32.8 UK mpg, 11.6 km/l) |
| Fuel consumption (extra urban) | 5.4 l/100 km (43.6 US mpg, 52.3 UK mpg, 18.5 km/l) |
| Fuel consumption (combined) | 6.6 l/100 km (35.6 US mpg, 42.8 UK mpg, 15.2 km/l) |
| CO2 emissions | 163 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.7 sec |
| Acceleration 0 – 62 mph | 13.7 sec |
| Acceleration 0 – 60 mph | 13 sec |
| Maximum speed | 185 km/h (114.95 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 11.6 kg/Hp, 86.4 Hp/tonne |
| Weight-to-torque ratio | 8.1 kg/Nm, 123.5 Nm/tonne |
| Power | 105 Hp @ 6000 rpm |
| Power per litre | 65.7 Hp/l |
| Torque | 150 Nm @ 3900 rpm (110.63 lb.-ft. @ 3900 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Z16XEP, Z16XE1 |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 79 mm (3.11 in.) |
| Piston Stroke | 81.5 mm (3.21 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4 l (4.23 US qt | 3.52 UK qt) |
| Coolant capacity | 6.1 l (6.45 US qt | 5.37 UK qt) |
| Kerb Weight | 1215 kg (2678.62 lbs.) |
| Max. weight | 1840 kg (4056.51 lbs.) |
| Max load | 625 kg (1377.89 lbs.) |
| Trunk (boot) space – minimum | 540 l (19.07 cu. ft.) |
| Trunk (boot) space – maximum | 1590 l (56.15 cu. ft.) |
| Fuel tank capacity | 52 l (13.74 US gal | 11.44 UK gal) |
| Length | 4515 mm (177.76 in.) |
| Width | 1794 mm (70.63 in.) |
| Height | 1500 mm (59.06 in.) |
| Wheelbase | 2703 mm (106.42 in.) |
| Front track | 1488 mm (58.58 in.) |
| Rear track | 1488 mm (58.58 in.) |
| Front overhang | 871 mm (34.29 in.) |
| Rear overhang | 941 mm (37.05 in.) |
| Ride height (ground clearance) | 160 mm (6.3 in.) |
| Drag coefficient (Cd) | 0.31 |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission |
| Front suspension | Spring Strut |
| Rear suspension | Spring Strut |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 195/65 R15 |
| Wheel rims size | 6.5J X 15 |
Powertrain & Engine Architecture
The heart of this Astra variant was the Opel-designed Z16XEP (or occasionally Z16XE1) 1.6-liter inline-four cylinder engine. This engine belonged to the ‘Ecotec’ family, known for its focus on fuel efficiency and refinement. It featured a dual overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to improved breathing and power delivery. Fuel was delivered via a multi-port fuel injection system, a common setup for engines of this era. The engine produced 105 horsepower at 6000 rpm and 150 Nm (110.63 lb-ft) of torque at 3900 rpm. The four-speed automatic transmission, while providing convenience, was a relatively older design compared to the five or six-speed automatics becoming increasingly common. It was chosen for its cost-effectiveness and suitability for the engine’s torque characteristics.
Driving Characteristics
The 1.6i Automatic Astra Caravan offered a comfortable, if not particularly exhilarating, driving experience. Acceleration from 0-100 km/h (0-62 mph) took approximately 13.7 seconds, and top speed was limited to 185 km/h (114.95 mph). The automatic transmission, while smooth in operation, resulted in some power loss compared to the available five-speed manual gearbox. Gear ratios were optimized for fuel economy rather than performance, meaning the engine often felt strained during overtaking maneuvers or when climbing hills. Compared to the more powerful 1.8-liter or turbocharged variants, the 1.6i Automatic lacked the punch needed for spirited driving. However, it excelled in urban environments and on long highway journeys where relaxed cruising was the priority.
Equipment & Trim Levels
The 1.6i Automatic trim typically included standard features such as power windows, central locking, air conditioning, and an audio system. Interior upholstery was usually cloth, with a relatively basic dashboard layout. Optional extras included alloy wheels, a sunroof, upgraded audio systems, and parking sensors. The specific trim level (e.g., Enjoy, Cosmo) determined the level of standard equipment, with higher trims offering more luxurious appointments. Safety features included ABS brakes and driver/passenger airbags, aligning with contemporary safety standards.
Chassis & Braking
The Astra H Caravan featured a MacPherson strut front suspension and a torsion beam rear suspension. This setup provided a good balance between ride comfort and handling. The front brakes were ventilated discs, offering adequate stopping power, while the rear brakes were solid discs. The suspension was tuned for comfort, resulting in a relatively soft ride quality. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The 1.6i Automatic Astra Caravan was generally well-received as a practical and affordable family car. Critics praised its spacious interior, comfortable ride, and fuel efficiency. However, the engine’s lack of power and the somewhat dated four-speed automatic transmission were common criticisms. Compared to the 1.8-liter versions, the 1.6i offered lower running costs but sacrificed performance. The diesel variants, such as the 1.9 CDTi, provided superior fuel economy and torque but came with a higher purchase price. The 1.6i Automatic appealed to buyers who prioritized ease of use and economy over driving excitement.
Legacy
The Z16XEP engine, while generally reliable, is known to be susceptible to timing chain wear if not properly maintained. Regular oil changes and adherence to the manufacturer’s service schedule are crucial for long-term reliability. In the used car market, the 1.6i Automatic Astra Caravan represents an affordable entry point into Astra H ownership. Its simplicity and relatively low maintenance costs make it an attractive option for budget-conscious buyers. However, potential buyers should be aware of the potential timing chain issue and thoroughly inspect the vehicle before purchase. The Astra H Caravan 1.6i Automatic remains a testament to Opel’s commitment to providing practical and economical transportation for the masses.
