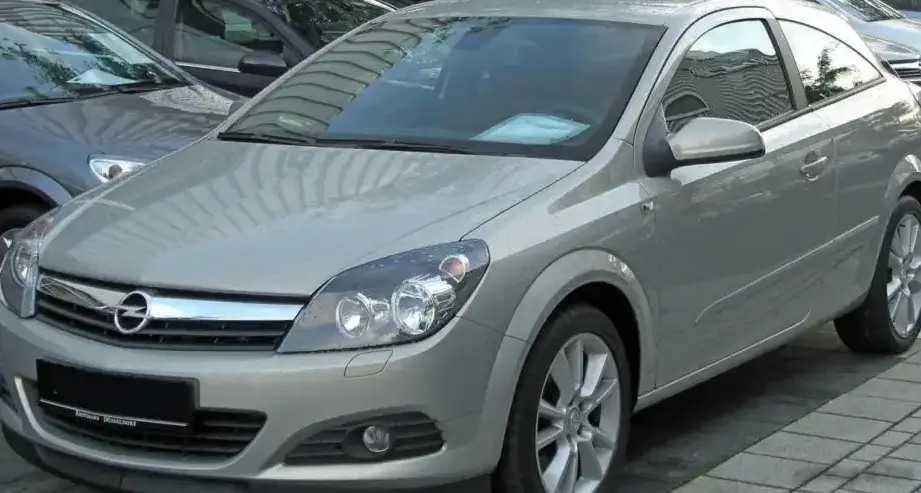

The Opel Astra H GTC 1.8i 16V, produced from March 2005 to October 2006, represents a compelling entry point into the sporty GTC (Gran Turismo Coupe) variant of the Astra H generation. Positioned as a mid-range offering within the GTC lineup, it aimed to balance performance with affordability, appealing to buyers seeking a stylish and practical hatchback. This three-door coupe sat alongside other engine options, including more powerful variants like the 2.0 Turbo and diesel options, offering a distinct driving experience tailored to those prioritizing fuel efficiency and a smoother ride. The Astra H GTC itself was a significant model for Opel, representing a move towards more emotionally driven design and a focus on driving dynamics within the compact segment.
Technical Specifications
| Brand | Opel |
| Model | Astra |
| Generation | Astra H GTC |
| Type (Engine) | 1.8i 16V (125 Hp) |
| Start of production | March, 2005 |
| End of production | October, 2006 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (urban) | 10.4 l/100 km (22.6 US mpg, 27.2 UK mpg, 9.6 km/l) |
| Fuel consumption (extra urban) | 6.1 l/100 km (38.6 US mpg, 46.3 UK mpg, 16.4 km/l) |
| Fuel consumption (combined) | 7.7 l/100 km (30.5 US mpg, 36.7 UK mpg, 13 km/l) |
| CO2 emissions | 185 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.7 sec |
| Acceleration 0 – 62 mph | 10.7 sec |
| Acceleration 0 – 60 mph | 10.2 sec |
| Maximum speed | 200 km/h (124.27 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 9.7 kg/Hp, 103.3 Hp/tonne |
| Weight-to-torque ratio | 7.1 kg/Nm, 140.5 Nm/tonne |
| Power | 125 Hp @ 5600 rpm |
| Power per litre | 69.6 Hp/l |
| Torque | 170 Nm @ 3800 rpm (125.39 lb.-ft. @ 3800 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Z18XE |
| Engine displacement | 1796 cm3 (109.6 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80.5 mm (3.17 in.) |
| Piston Stroke | 88.2 mm (3.47 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.25 l (4.49 US qt | 3.74 UK qt) |
| Coolant | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Kerb Weight | 1210 kg (2667.59 lbs.) |
| Max. weight | 1785 kg (3935.25 lbs.) |
| Max load | 575 kg (1267.66 lbs.) |
| Trunk (boot) space – minimum | 380 l (13.42 cu. ft.) |
| Fuel tank capacity | 52 l (13.74 US gal | 11.44 UK gal) |
| Length | 4290 mm (168.9 in.) |
| Width | 1753 mm (69.02 in.) |
| Width including mirrors | 2033 mm (80.04 in.) |
| Height | 1415 mm (55.71 in.) |
| Wheelbase | 2614 mm (102.91 in.) |
| Front track | 1488 mm (58.58 in.) |
| Rear (Back) track | 1488 mm (58.58 in.) |
| Front overhang | 910 mm (35.83 in.) |
| Rear overhang | 766 mm (30.16 in.) |
| Ride height (ground clearance) | 140 mm (5.51 in.) |
| Drag coefficient (Cd) | 0.32 |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Spring Strut |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/55 R16 |
| Wheel rims size | 6.5J x 16 |
Powertrain & Engine Architecture
The heart of the Astra H GTC 1.8i 16V is the Z18XE engine, a naturally aspirated 1.8-liter inline-four cylinder powerplant. This engine, a member of Opel’s Ecotec family, utilizes multi-port fuel injection and a double overhead camshaft (DOHC) valvetrain with four valves per cylinder. The Z18XE is known for its relatively smooth operation and decent fuel economy. The engine’s 1796 cc displacement, combined with a 10.5:1 compression ratio, allows it to produce 125 horsepower at 5600 rpm and 170 Nm (125.39 lb-ft) of torque at 3800 rpm. The engine is transversely mounted in the front of the vehicle. The standard transmission for this variant was a five-speed manual gearbox, although a four-speed automatic transmission was also available, impacting acceleration and fuel economy. The automatic transmission, while offering convenience, generally resulted in slightly slower acceleration times and increased fuel consumption compared to the manual version.
Driving Characteristics
The 1.8i 16V GTC offered a balanced driving experience. While not overtly sporty, it provided adequate performance for everyday driving and occasional spirited runs. Acceleration from 0 to 100 km/h (0-62 mph) took approximately 10.7 seconds, and top speed was rated at 200 km/h (124 mph). The engine’s torque curve was relatively flat, providing usable power across a wide range of engine speeds. Compared to the more powerful 2.0 Turbo GTC, the 1.8i felt less urgent in its acceleration, but it also offered better fuel economy and a more forgiving nature. The five-speed manual transmission allowed for precise gear selection, while the optional automatic provided smooth, if somewhat less engaging, shifts. The GTC’s suspension, tuned for a balance between comfort and handling, provided a reasonably composed ride, although it wasn’t as firm or focused as some of its rivals.
Equipment & Trim Levels
The Astra H GTC 1.8i 16V typically came equipped with a respectable level of standard features. These included power windows, central locking, air conditioning, and an audio system. Interior upholstery was generally cloth, with options for upgraded materials available. Trim levels varied depending on the market, but common options included alloy wheels, fog lamps, and a multi-function steering wheel. Safety features such as ABS (Anti-lock Braking System) and front airbags were standard. The GTC’s interior design was modern for its time, with a focus on ergonomics and functionality. The three-door body style offered a sportier aesthetic, but it also meant slightly less convenient access to the rear seats compared to the five-door Astra hatchback.
Chassis & Braking
The Astra H GTC 1.8i 16V utilized a MacPherson strut suspension setup at the front and a torsion beam suspension at the rear. This configuration provided a good balance between ride comfort and handling. The front brakes were ventilated discs, offering good stopping power, while the rear brakes were solid discs. The steering was a rack and pinion system, providing precise and responsive steering feel. The GTC’s chassis was relatively lightweight, contributing to its nimble handling characteristics. Tire size was typically 205/55 R16, providing adequate grip in most conditions.
Market Reception & Comparison
The Astra H GTC 1.8i 16V was generally well-received by automotive critics as a stylish and practical hatchback. It was praised for its attractive design, comfortable ride, and decent fuel economy. However, some critics noted that its performance was not as exciting as some of its rivals, particularly the more powerful GTC variants. Compared to the 2.0 Turbo GTC, the 1.8i offered a more affordable entry point into the GTC range, but it sacrificed some performance. Against competitors like the Volkswagen Golf and Ford Focus, the Astra H GTC 1.8i 16V offered a compelling combination of style, practicality, and value.
Legacy
The Opel Astra H GTC 1.8i 16V has proven to be a relatively reliable vehicle in the used car market. The Z18XE engine is known for its durability, and the GTC’s chassis is generally well-built. Common maintenance issues include wear and tear on suspension components and occasional problems with the electrical system. However, these issues are typically not major and can be addressed with routine maintenance. Today, the Astra H GTC 1.8i 16V remains a popular choice for buyers seeking an affordable and stylish hatchback with a proven track record of reliability. Its blend of practicality, fuel efficiency, and decent performance continues to make it a viable option in the used car market.
