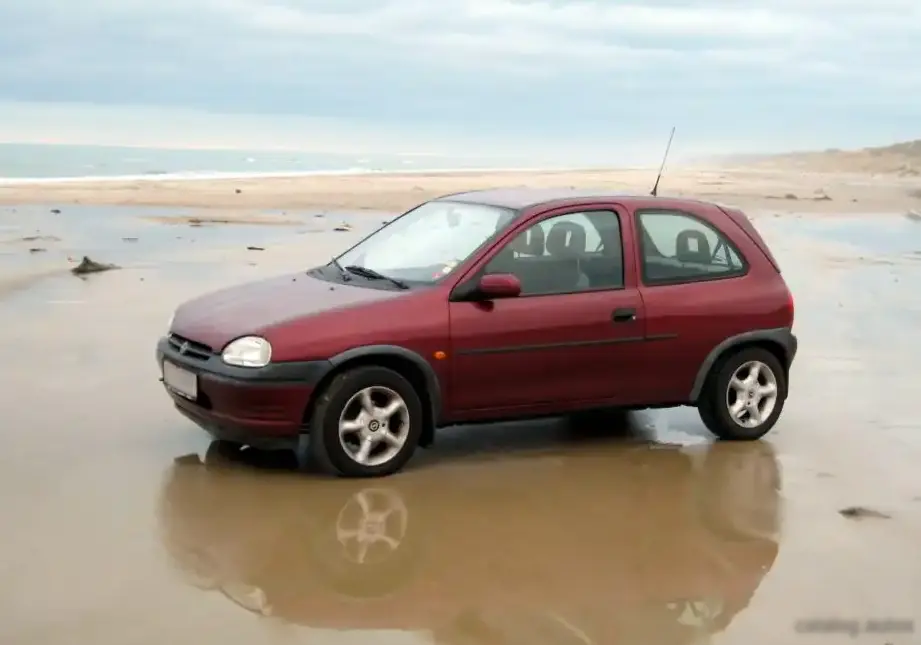

The Opel Corsa B 1.4i 16V Automatic, produced between August 1994 and February 1997, represented an entry-level to mid-range offering within the broader Corsa B (1994-2000) lineup. Positioned as a more accessible option, it catered to buyers prioritizing ease of use and affordability over outright performance. This variant utilized the X14XE engine paired with a four-speed automatic transmission, making it a popular choice in European markets where compact, economical hatchbacks were in high demand. The Corsa B itself was a significant step forward for Opel, built on the GM121 platform (also known as the 1HX0/A3 platform) and offering improved refinement and safety compared to its predecessor.
Technical Specifications
| Brand | Opel |
| Model | Corsa |
| Generation | Corsa B |
| Type (Engine) | 1.4i 16V (90 Hp) Automatic |
| Start of production | August, 1994 |
| End of production | February, 1997 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3-5 |
| Fuel consumption (urban) | 11.3 l/100 km (20.8 US mpg, 25 UK mpg, 8.8 km/l) |
| Fuel consumption (extra urban) | 6.3 l/100 km (37.3 US mpg, 44.8 UK mpg, 15.9 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.5 sec |
| Acceleration 0 – 62 mph | 13.5 sec |
| Acceleration 0 – 60 mph | 12.8 sec |
| Maximum speed | 172 km/h (106.88 mph) |
| Weight-to-power ratio | 10.9 kg/Hp, 91.4 Hp/tonne |
| Weight-to-torque ratio | 8.6 kg/Nm, 115.7 Nm/tonne |
| Power | 90 Hp @ 6000 rpm |
| Power per litre | 64.8 Hp/l |
| Torque | 114 Nm @ 3400 rpm (84.08 lb.-ft. @ 3400 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | X14XE |
| Engine displacement | 1389 cm3 (84.76 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 77.6 mm (3.06 in.) |
| Piston Stroke | 73.4 mm (2.89 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Coolant | 5.6 l (5.92 US qt | 4.93 UK qt) |
| Kerb Weight | 985 kg (2171.55 lbs.) |
| Max. weight | 1425 kg (3141.59 lbs.) |
| Max load | 440 kg (970.03 lbs.) |
| Trunk (boot) space – minimum | 260 l (9.18 cu. ft.) |
| Trunk (boot) space – maximum | 1050 l (37.08 cu. ft.) |
| Fuel tank capacity | 46 l (12.15 US gal | 10.12 UK gal) |
| Length | 3740 mm (147.24 in.) |
| Width | 1610 mm (63.39 in.) |
| Height | 1420 mm (55.91 in.) |
| Wheelbase | 2445 mm (96.26 in.) |
| Front track | 1385 mm (54.53 in.) |
| Rear (Back) track | 1390 mm (54.72 in.) |
| Ride height (ground clearance) | 140 mm (5.51 in.) |
| Drag coefficient (Cd) | 0.35 |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 165/70 R13 |
| Wheel rims size | 5J x 13 |
Powertrain & Engine Architecture
The heart of the Corsa B 1.4i Automatic is the X14XE engine, a 1.4-liter (1389 cc) inline-four cylinder gasoline engine. This engine featured multi-port fuel injection and a double overhead camshaft (DOHC) valvetrain, contributing to its relatively efficient operation for its time. The X14XE was known for its durability, though it wasn’t a powerhouse. The four-speed automatic transmission, while providing convenience, was a relatively basic unit. It wasn’t known for particularly quick shifts or advanced features. The transmission’s gear ratios were geared towards fuel economy and smooth cruising rather than spirited acceleration. The engine’s 90 horsepower and 114 Nm (84 lb-ft) of torque were adequate for everyday driving, but it lacked the punch of the more powerful 1.6-liter or turbo-diesel options available in the Corsa B range.
Driving Characteristics
The 1.4i Automatic Corsa B offered a comfortable, if uninspiring, driving experience. Acceleration was modest, with a 0-60 mph time around 12.8 seconds. The automatic transmission, while smooth, contributed to a noticeable lack of responsiveness compared to the five-speed manual versions. The gear ratios were spaced to prioritize fuel efficiency, meaning the engine often felt strained during overtaking maneuvers or when climbing hills. The suspension, tuned for comfort, provided a reasonably compliant ride, but didn’t offer particularly sharp handling. The steering was light and easy to use, making it well-suited for urban driving.
Equipment & Trim Levels
The 1.4i Automatic trim typically included basic features such as power steering, central locking, and an adjustable steering column. Interior upholstery was usually cloth, and the dashboard featured a simple, functional design. Optional extras included air conditioning, electric windows, and a radio/cassette player. Higher trim levels, such as the “Swing” or “Sport,” added features like alloy wheels, upgraded interior trim, and body-colored bumpers. The automatic transmission was often paired with slightly more comfortable interior appointments than the base manual models.
Chassis & Braking
The Corsa B 1.4i Automatic utilized a relatively simple chassis design. Front suspension consisted of coil springs and MacPherson struts, while the rear employed a torsion beam setup. Brakes were disc brakes at the front and drum brakes at the rear, which was typical for this class of vehicle and weight. Anti-lock Braking System (ABS) was often included as standard equipment, enhancing safety. The suspension was tuned for comfort, prioritizing ride quality over sporty handling. Stabilizer bars were present, but relatively thin compared to those found on higher-performance Corsa B models.
Market Reception & Comparison
The Corsa B 1.4i Automatic was generally well-received as a practical and affordable city car. Critics noted its comfortable ride and ease of use, but also pointed out its lack of performance. Compared to the 1.6-liter versions, the 1.4i Automatic felt noticeably slower and less refined. The 1.7-liter diesel models offered significantly better fuel economy, but at the expense of refinement and performance. The automatic transmission, while convenient, was often criticized for its sluggishness. However, the 1.4i Automatic appealed to buyers who prioritized ease of driving and low running costs.
Legacy
The Opel Corsa B 1.4i Automatic, while not a particularly exciting vehicle, proved to be a reliable and durable option. The X14XE engine is known for its longevity, and the four-speed automatic transmission, while basic, is generally robust. Today, these cars are relatively affordable on the used market, making them attractive to first-time drivers or those seeking a cheap and cheerful runabout. However, potential buyers should be aware of the possibility of age-related issues, such as corrosion and wear and tear on suspension components. The Corsa B 1.4i Automatic remains a testament to Opel’s ability to produce practical and dependable small cars.
