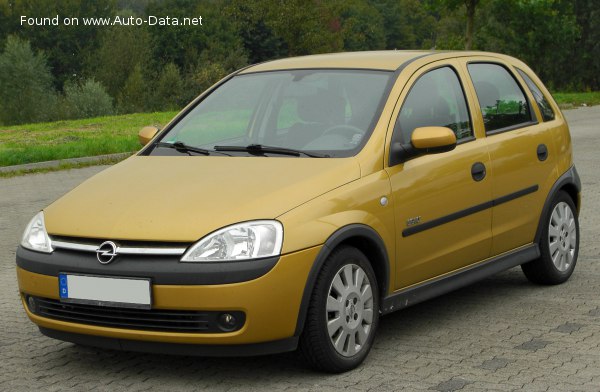

The Opel Corsa C 1.0 12V, produced from October 2000 to June 2003, represented the entry point into the Corsa C range, Opel’s subcompact offering. Positioned as an affordable and economical option, this variant was primarily aimed at first-time car buyers, city commuters, and those seeking low running costs. It was a key component of the Corsa C’s success, which was built on the GM13 platform (also known as the 1HX0/A3 platform) and shared with other vehicles like the Fiat Punto and Alfa Romeo 147. The 1.0 12V model offered a practical and reliable, if not particularly powerful, driving experience.
Technical Specifications
| Brand | Opel |
| Model | Corsa |
| Generation | Corsa C |
| Type (Engine) | 1.0 12V (58 Hp) |
| Start of production | October, 2000 |
| End of production | June, 2003 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3-5 |
| Fuel consumption (urban) | 7.2 l/100 km (32.7 US mpg) |
| Fuel consumption (extra urban) | 4.7 l/100 km (50 US mpg) |
| Fuel consumption (combined) | 5.6 l/100 km (42 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 16 sec |
| Acceleration 0 – 62 mph | 16 sec |
| Acceleration 0 – 60 mph | 15.2 sec |
| Maximum speed | 155 km/h (96.31 mph) |
| Weight-to-power ratio | 15.2 kg/Hp |
| Weight-to-torque ratio | 10.4 kg/Nm |
| Power | 58 Hp @ 5600 rpm |
| Power per litre | 59.6 Hp/l |
| Torque | 85 Nm @ 3800 rpm (62.69 lb.-ft. @ 3800 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | Z10XE |
| Engine displacement | 973 cm3 (59.38 cu. in.) |
| Number of cylinders | 3 |
| Engine configuration | Inline |
| Cylinder Bore | 72.5 mm (2.85 in.) |
| Piston Stroke | 78.6 mm (3.09 in.) |
| Compression ratio | 10.1:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3 l (3.17 US qt | 2.64 UK qt) |
| Coolant | 4.9 l (5.18 US qt | 4.31 UK qt) |
| Kerb Weight | 880 kg (1940.07 lbs.) |
| Max. weight | 1405 kg (3097.49 lbs.) |
| Max load | 525 kg (1157.43 lbs.) |
| Trunk (boot) space – minimum | 260 l (9.18 cu. ft.) |
| Trunk (boot) space – maximum | 1050 l (37.08 cu. ft.) |
| Fuel tank capacity | 44 l (11.62 US gal | 9.68 UK gal) |
| Length | 3817 mm (150.28 in.) |
| Width | 1646 mm (64.8 in.) |
| Height | 1440 mm (56.69 in.) |
| Wheelbase | 2491 mm (98.07 in.) |
| Front track | 1429 mm (56.26 in.) |
| Rear (Back) track | 1420 mm (55.91 in.) |
| Drag coefficient (Cd) | 0.32 |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 165/70 R13 |
| Wheel rims size | 13 |
Powertrain & Engine Architecture
The heart of the Corsa C 1.0 12V is the Z10XE engine, a 973cc inline-three cylinder petrol engine. This engine featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to its relatively efficient operation. Fuel delivery was handled by a multi-port fuel injection system, providing precise fuel metering for improved combustion. The 12-valve configuration (four valves per cylinder) was a step up from earlier 8-valve designs, offering improved breathing and a slightly broader powerband. The engine’s modest output of 58 horsepower at 5600 rpm and 85 Nm (63 lb-ft) of torque at 3800 rpm was sufficient for urban driving, but limited its capabilities on highways or when fully loaded. The engine was paired with a standard five-speed manual transmission, optimized for fuel economy rather than outright performance. An optional four-speed automatic transmission was available, but it further reduced acceleration and increased fuel consumption.
Driving Characteristics
The Corsa C 1.0 12V with the manual transmission offered a light and nimble driving experience. Acceleration was leisurely, taking around 16 seconds to reach 62 mph (100 km/h). The engine required frequent gear changes to maintain momentum, especially when climbing hills or overtaking. The automatic transmission version was even slower, with a noticeable delay in response and a tendency to hunt for gears. The steering was light and precise, making it easy to maneuver in tight city streets. The suspension, while basic, provided a reasonably comfortable ride, absorbing most bumps and imperfections in the road surface. Compared to the more powerful 1.4L and 1.6L versions of the Corsa C, the 1.0L felt significantly underpowered, but it excelled in fuel efficiency.
Equipment & Trim Levels
The 1.0 12V Corsa C typically came with a basic level of equipment. Standard features included power steering, central locking, and an adjustable steering column. Interior upholstery was typically cloth, and the dashboard featured a simple, functional design. Optional extras included air conditioning, electric windows, and a radio/CD player. Trim levels varied slightly depending on the market, but generally, the 1.0L model was positioned as the entry-level option, with fewer standard features than the higher-spec 1.4L and 1.6L variants. Safety features were also basic, typically including driver and passenger airbags and ABS brakes.
Chassis & Braking
The Corsa C 1.0 12V utilized a relatively simple chassis design. Front suspension consisted of coil springs and MacPherson struts, while the rear suspension employed a torsion beam setup. Brakes were disc brakes at the front and drum brakes at the rear, providing adequate stopping power for the vehicle’s weight and performance. ABS (Anti-lock Braking System) was standard, enhancing safety by preventing wheel lockup during hard braking. The relatively light weight of the 1.0L model – around 880 kg (1940 lbs) – helped to offset its low power output, contributing to reasonable handling and braking performance.
Market Reception & Comparison
The Opel Corsa C 1.0 12V was generally well-received as an affordable and economical city car. Critics praised its fuel efficiency and nimble handling, but criticized its lack of power. Compared to the 1.4L and 1.6L versions, the 1.0L offered significantly lower performance, but at a lower purchase price and with better fuel economy. The 1.4L offered a better balance of performance and economy, while the 1.6L provided more power for those who frequently drove on highways or carried passengers and luggage. The 1.0L also compared favorably to competitors like the Fiat Punto 1.2 and the Renault Clio 1.2 in terms of fuel efficiency and affordability.
Legacy
The Z10XE engine, while not known for its performance, proved to be a reliable and durable unit. The Corsa C 1.0 12V remains a popular choice in the used car market, particularly among budget-conscious buyers. Maintenance costs are relatively low, and spare parts are readily available. However, potential buyers should be aware of the engine’s limited power output and the potential for wear and tear on the automatic transmission. Overall, the Corsa C 1.0 12V represents a practical and economical option for those seeking a reliable and affordable subcompact car.
